TRACER MPS Antenna Interface

TRACER MPS STANDBY
Antenna Interface

TRACER MPS MAIN
Antenna Interface

MAIN UNIT Antenna Interface

1

TRACER RFC IF Interface

3

4

TRACER BBP IF Interface

6a

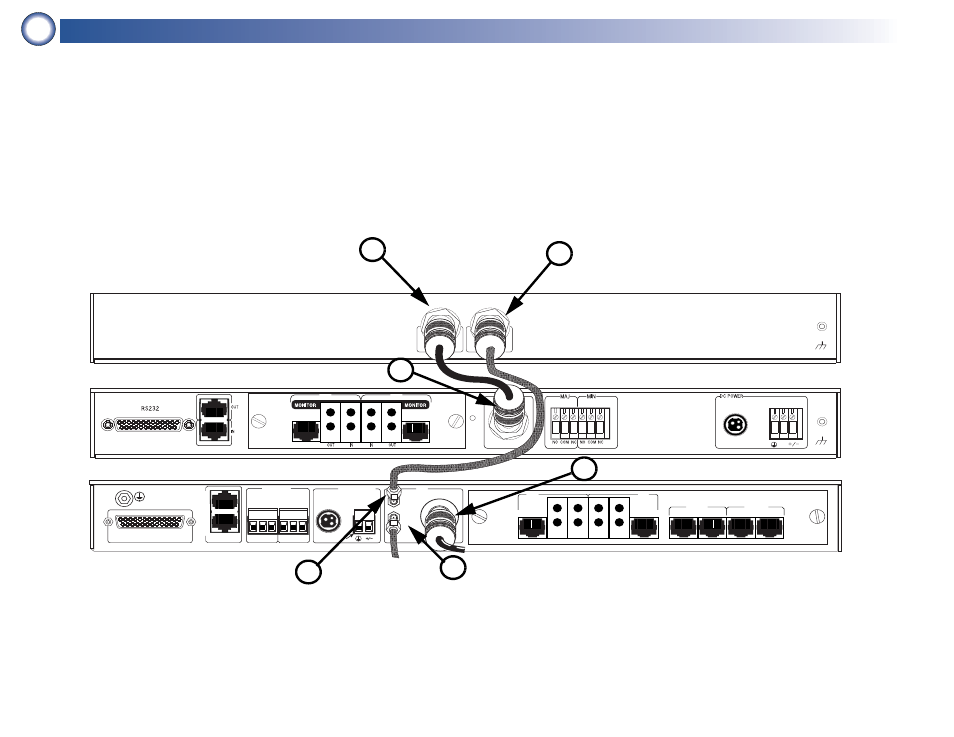

Connecting the Antenna Interfaces (TRACER BBP and RFC Systems)

1. Connect the Antenna interface (N-Type connector) of the MAIN TRACER RFC (labeled 1 below) to the MAIN RF interface (SMA con-

nector) of the TRACER MPS (labeled 2 below) using a male N-Type to male SMA cable.

2. Connect the IF connector on the MAIN TRACER BBP (labeled 4 below) to the IF connector on the MAIN RFC (labeled 3 below) using

the 6” RF cable (ADTRAN P/N 3125RF027).

3. Repeat Step 1 to connect the Antenna interface (N-Type connector) of the STANDBY TRACER RFC to the STANDBY RF interface

(SMA connector) of the TRACER MPS (labeled 6 below).

4. Repeat Step 2 for the STANDBY TRACER BBP and RFC.

5. Connect the TRACER MPS Antenna interface (N-Type connector, labeled 5 above) to the customer provided antenna using antenna

feedline cabling. Refer to the appropriate TRACER User Manual for a detailed discussion on link planning, antenna loss/gain, and
antenna alignment.
