Creating the VT100 Chain

A single VT100 connection through the TRACER MPS provides access to both the primary (MAIN) and SECONDARY TRACER units.
Follow the steps below to create the VT100 chain.

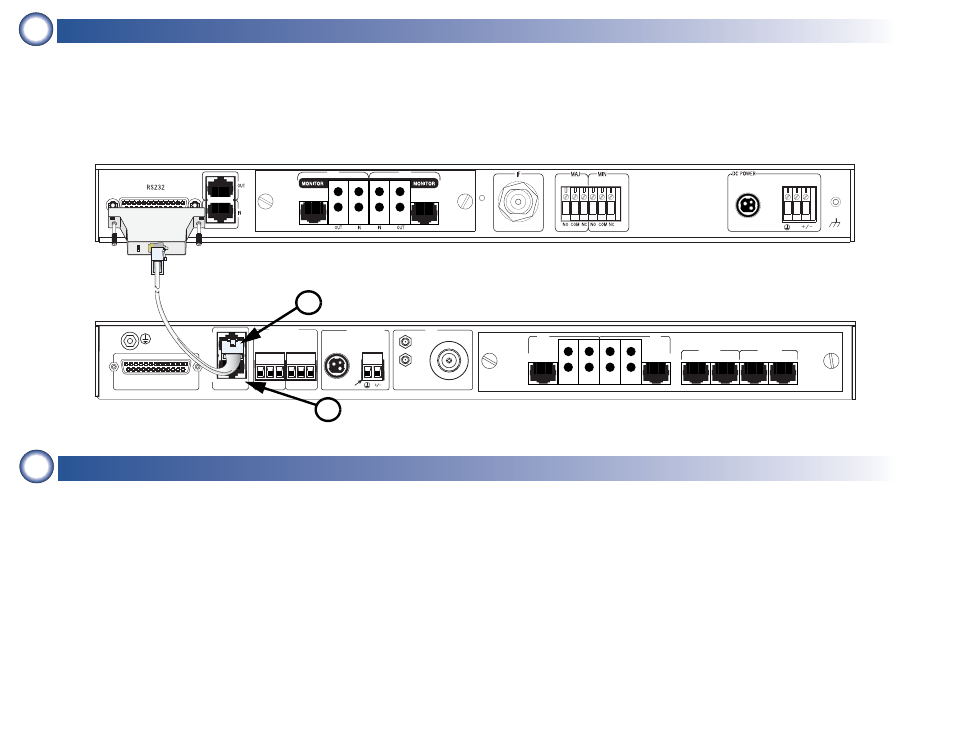

1. Connect the RS-232 port (DB-25) on the rear panel of the MAIN TRACER BBP to the TRACER MPS VT100 interface (labeled 1 on

the figure below) using the provided DB-25 (MALE) to RJ-45 (FEMALE) adapter (P/N 3196ADPT010) and standard 8-conductor
straight-though cable. Repeat the step for the STANDBY unit (see label 2).

T

R

A

C

E

R

MAIN

STANDBY

OUT

NO COM NC

MN COM SB

IN

ALARMS

DC POWER

RF

ANTENNA

TO DTE RS-232

MONITOR

T1B

T1A

MAIN

TRACER

STANDBY

TRACER

MONITOR

POWER

MODULE

USE COPPER

CONDUCTORS ONLY

OUT

IN

IN

OUT

B

A

B

A

MAIN

STAND

BY

MANAGEMENT

T1A

T1B

STANDBY UNIT VT100 Connection

MAIN UNIT VT100 Connection

1

2

3

Connecting to the Unit

1. Connect a VT100 terminal (or PC with VT100 emulation software like HyperTerminal) to the TRACER MPS RS-232 console interface

using a DB-25 Male (for TRACER MPS) to DB-9 Female (for terminal or PC) straight-through serial cable.

2. Configure the COM port with the following parameters:

Data Rate: 9600
Data Bits: 8
Parity Bits: None
Stop Bits: 1
Flow Control: None

3. Open a VT100 terminal session. (Please refer to the appropriate VT100 terminal software documentation for detailed instructions.)
4. Press to begin the configuration session. The TRACER MPS Interface is now active.
