Arbitrary waveforms, To create and store an arbitrary waveform, Figure – Agilent Technologies AGILENT U2761A User Manual
Page 109

Features and Functions
2
U2761A User’s Guide
91
Arbitrary Waveforms
There are three built
-in Arbitrary waveforms offered. The
U2761A supports the Arbitrary waveform up to 65536 (64K)
data points. You can create an Arbitrary waveform using the
soft front panel as described in the following. For further
information, please refer to the Agilent Measurement
Manager help file.
To Create and Store an Arbitrary Waveform
This section provides you an example on the procedure to
create and store an Arbitrary waveform using the soft front
panel. To create an Arbitrary waveform remotely, refer to
the Agilent U2761A USB Modular Function/Waveform
Generator Programmer’s Reference. You will create and store
the Ramp waveform shown below as an example.
Amplitude = 2 Vpp, Period = 10 ms

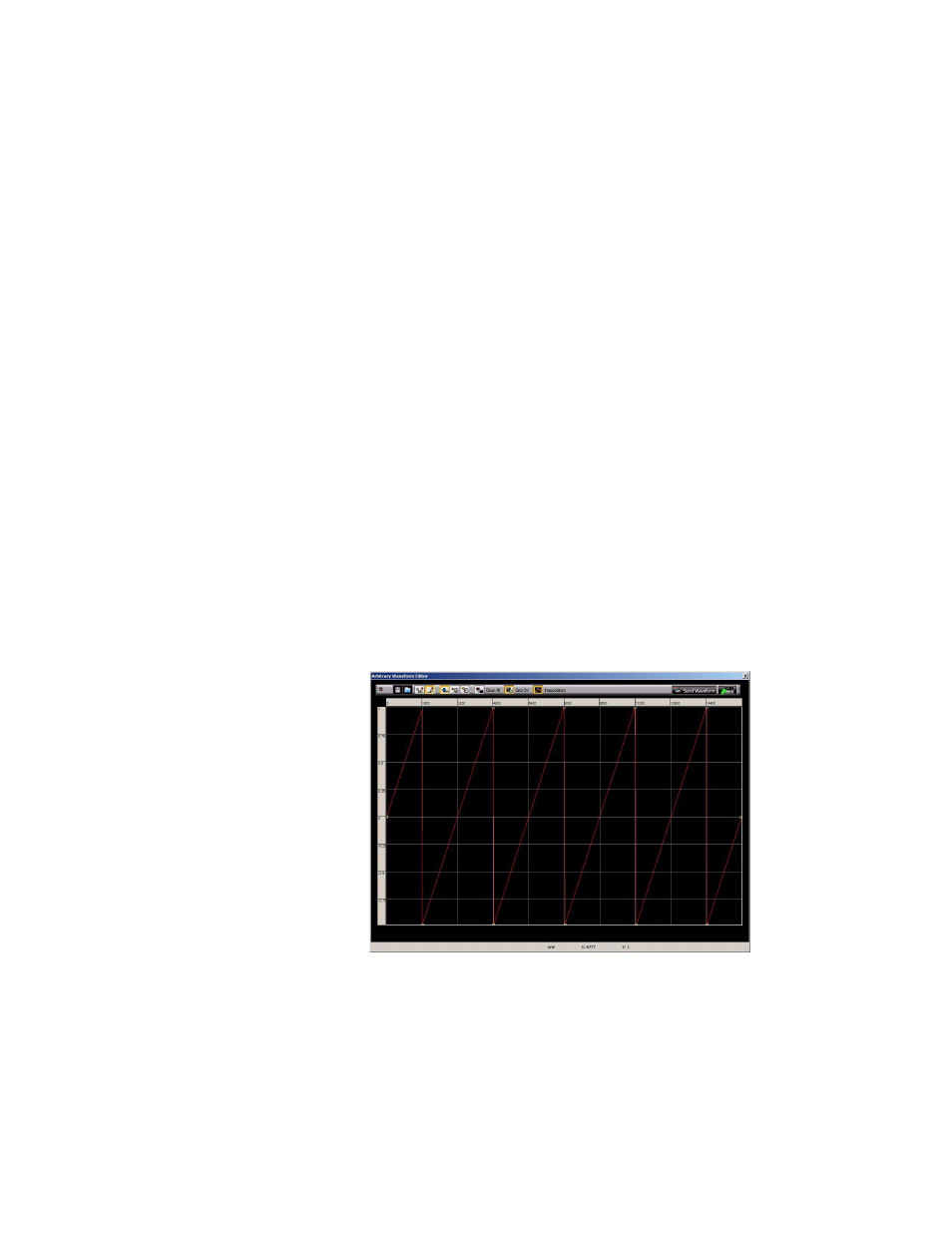

Figure 2-31 Ramp waveform
