Accton Technology Wireless LAN 802.11b/g Device WN4201B - Manual (Page 64)

Wireless LAN 802.11b/g Device
64
2. From the Tools menu select Options….
The Options dialog box will appear.
3. Select the Wireless AP tab
The Options box will display the Wireless AP tab.

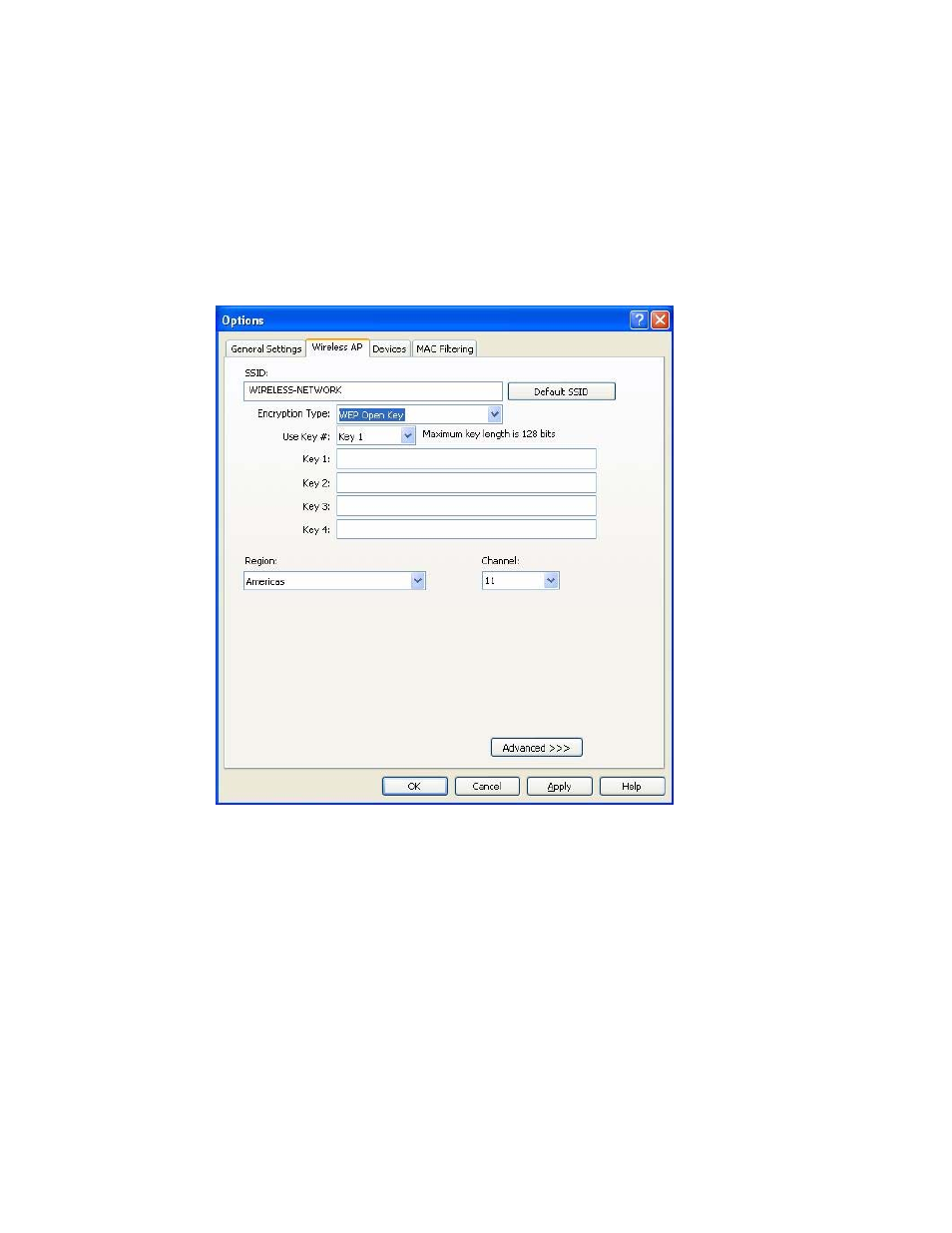

Figure 63: WEP Security choices
4. From the Encryption Type drop box select WEP Open Key
The Key boxes appear as shown in figure 63. It is possible to save up to four keys for use, yet
only one at any given time can be active.
5. In the Use Key drop box select key 1
Note: If you have already saved other keys you may select the one that applies to your wireless
network.
6. Enter your key into the box for Key 1
