Part Names
Be
fo
re
Us
e

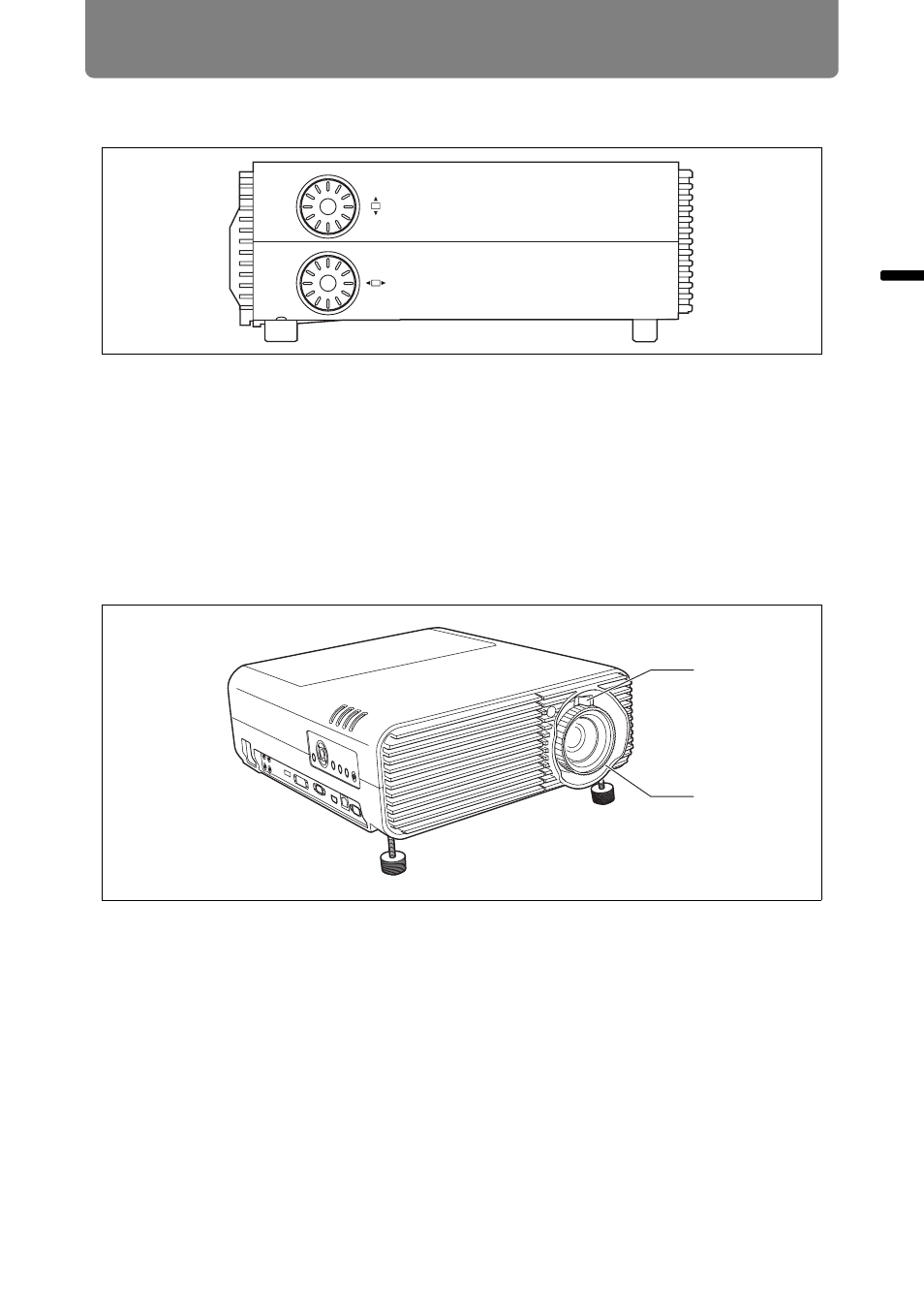

Lens Shift Control
(1) Vertical lens shift dial
Slides the lens up or down for vertical image adjustment.
(2) Horizontal lens shift dial
Slides the lens left or right for horizontal image adjustment. For details on lens
shift, refer to “Lens Shift Function” (
P131 ).
Projection Lens
(1) Zoom adjustment
Move the lever to resize the image. ( P55 )
(2) Focus adjustment
Turn the focus ring to adjust image focus. ( P56 )
(1)
(2)
(1)
(2)
