Part Names
42

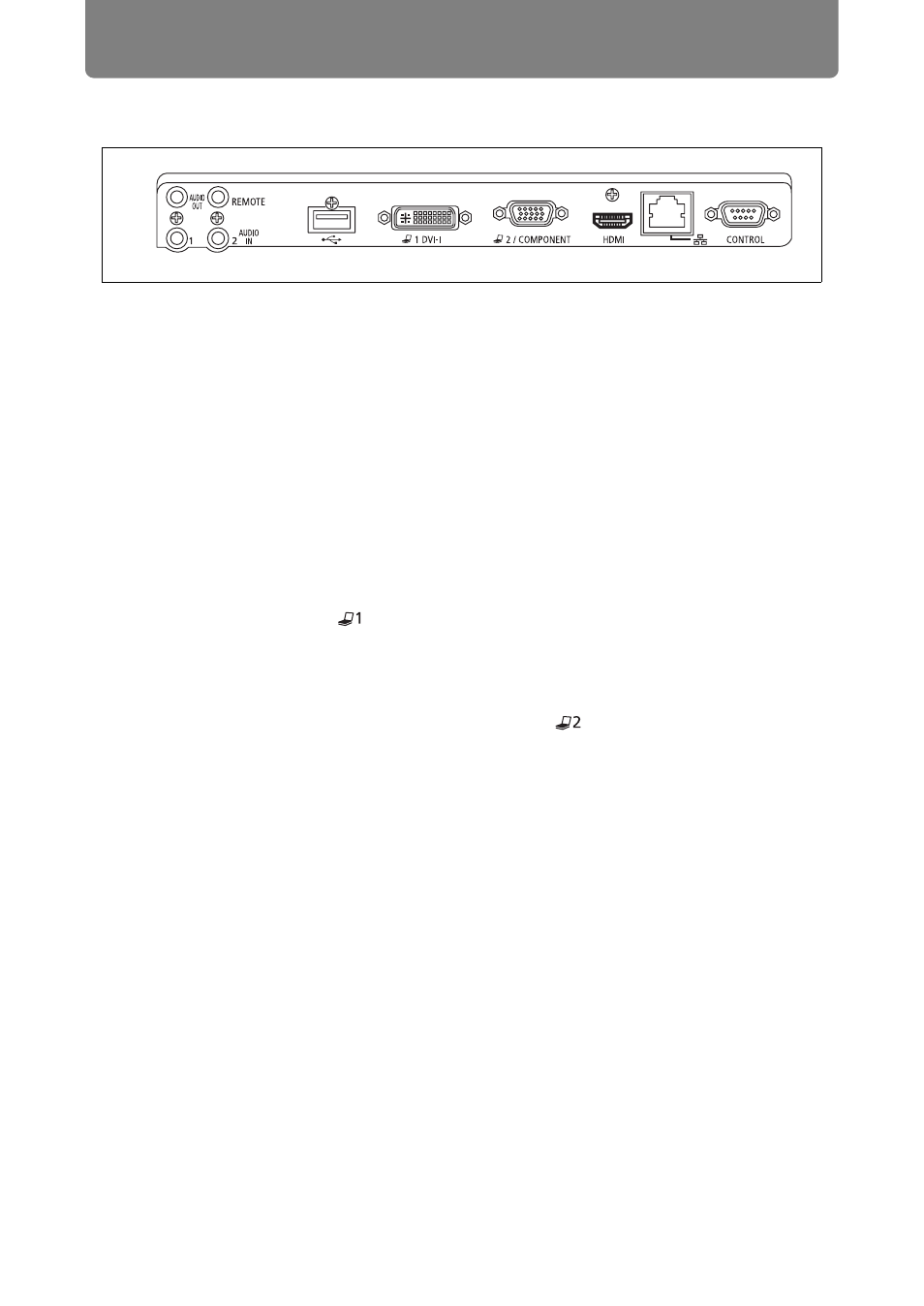

Input Terminal
(1) AUDIO OUT terminal (AUDIO OUT) (
,
Outputs the audio to external AV equipment. This outputs the audio signal that
corresponds to the projected image signal.
(2) AUDIO IN terminal (AUDIO IN) (
,
Receives the audio signal input for 2 kinds of image input other than HDMI.
The internal speaker outputs the audio for the selected image signal.
(3) Terminal for wired remote control (REMOTE) (
This terminal is used to connect the remote control using a cable.
(4) USB port (
)
Connects a USB flash drive. Used for projection of images on a USB flash
drive, or for firmware updates.
(5) DVI-I input terminal (
DVI-I) (
)
Connects the external monitor output from a computer.
Receives analog and digital PC signals (Analog PC-1 and Digital PC,
respectively).
(6) ANALOG PC / COMPONENT input terminal (
/ COMPONENT)
Receives the analog PC signal (Analog PC-2).
A component cable can be used to receive the component image signal
(Component).
(7) HDMI input terminal (HDMI) (
)
Receives digital video signals (HDMI).
Carries both video and audio signals across a single cable.
(8) LAN port (
)
Connects the LAN cable (shielded twisted pair).
Used to connect the projector to a network.
(9) Service port (CONTROL)
It is not used during ordinary use.
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
