133
Inst
alla
tio
n
an
d Main
te
nan
ce
Inst
allation
Connection Procedure

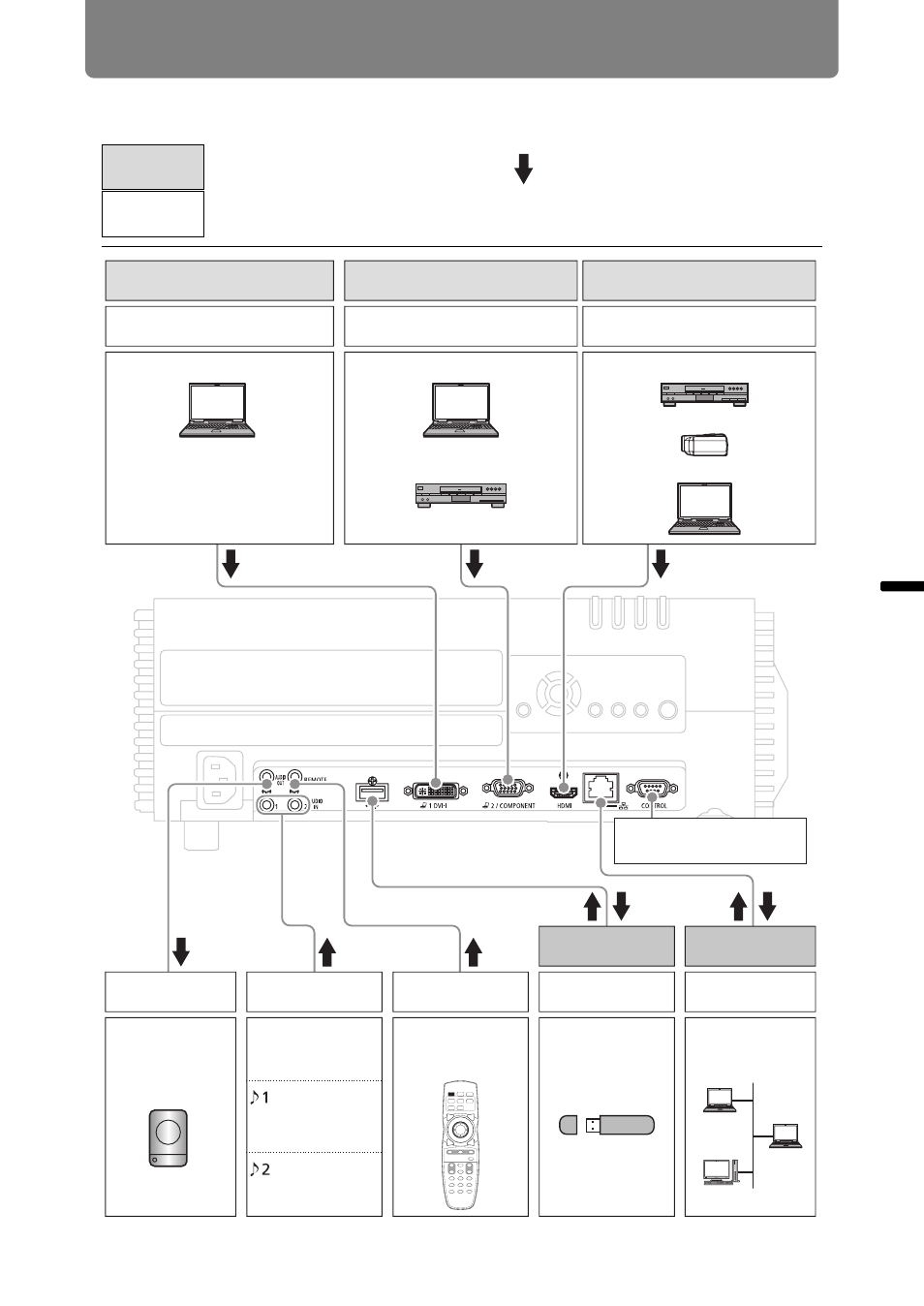

Connectable Equipment and Input Terminals
HDMI Use this name to select the image
input.
Direction of signal and data flow
HDMI
Terminal
The name of the terminal to which
to connect equipment
(Pxxx) indicates the page(s) to refer to.
Computer ( P134 ) AV equipment ( P137 )
Digital video camera* ( P137 )
Computer ( P134 , P135 )
AV equipment ( P138 )
Network ( P164 )
( P134 , P135 )
Amplified
speakers
( P136 , P139 )
Computer ( P136 )
* Select playback
mode before
connecting.
Optional remote
control
(RS-RC05) ( P35 )
USB Flash Drive
( P77 )
Analog PC-1
Digital PC
Analog PC-2
Component
HDMI
HDMI terminal
ANALOG PC-1 /
DVI-I terminal
ANALOG PC-2/
COMPONENT terminal
Service Port (It is not used
during ordinary use.)
Audio signal for
each image input
Digital PC
Analog PC-1
AUDIO OUT
terminal
AUDIO IN
terminal
REMOTE
terminal
USB Port LAN terminal
USB LAN
DVI-I IN terminal can only be
used to connect to a PC.
( P134 , P135 , P138 )
Analog PC-2
Component
