Installation
19
Installation

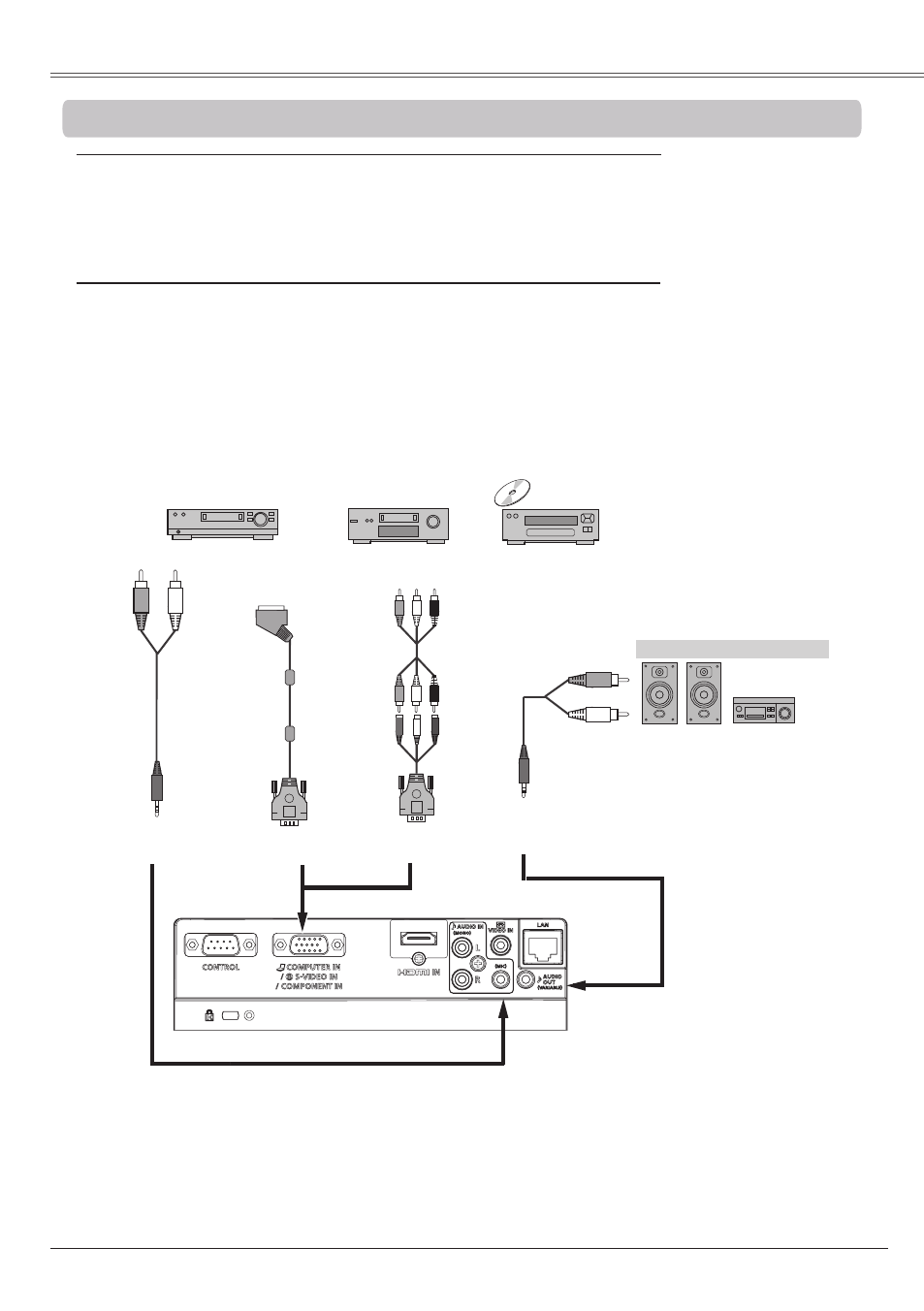

Connecting to COMPONENT VIDEO and SCART Equipment
External Audio Equipment
PC AUDIO
IN
Audio
cable
(stereo)
Audio Input
COMPONENT VIDEO Output
(Y, Pb/Cb, Pr/Cr)
Audio Output RGB Scart 21-
pin Output
Scart-
VGA
cable
COMPONENT-
VGA cable
AUDIO OUT
(stereo)
COMPONENT
cable
COMPUTER IN/ S-VIDEO IN /
COMPONENT IN
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• COMPONENT Cable
• COMPONENT-VGA Cable
(Cables are not supplied with this projector.)
Audio
cable
(stereo)
 Note:
• When using MIC function, see pages 17-18 for detail about connection.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 79 for ordering optional cables.
 Note:
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting cables.
Video, DVD player, etc.
