10

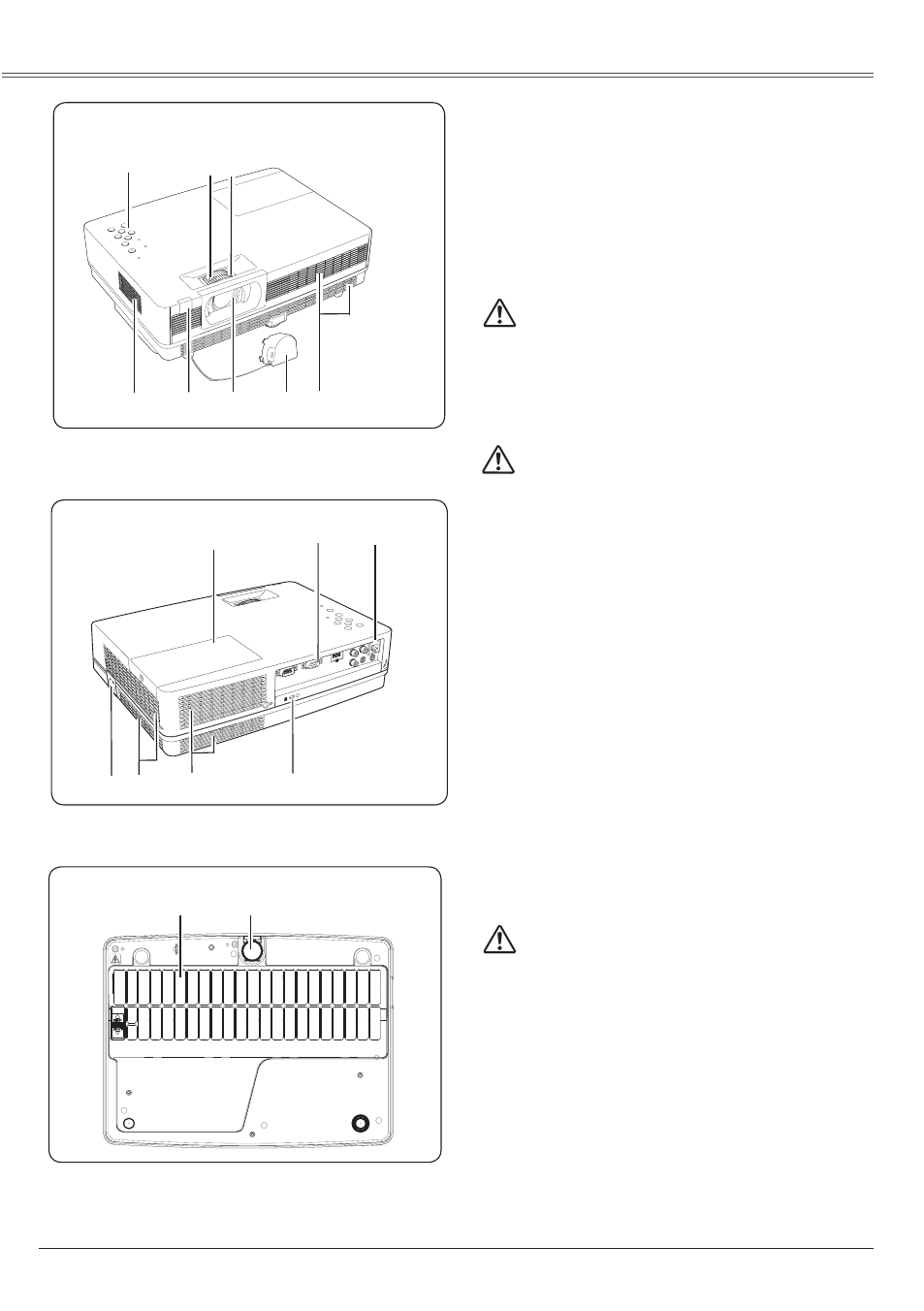

Part Names and Functions
⑤
⑦ ⑧
③
②
Front
Back
⑥
① Top controls and Indicators
② Zoom Ring
③ Focus Ring
④ Speaker
⑤ Infrared Remote Receiver
⑥ Projection Lens
⑦ Lens Cap
(See page 67 for attaching.)
⑧ Air Intake Vent
⑨ Lamp Cover
⑩ Terminals and Connectors
⑪ LAN Connection Terminal
(LAN Connection Terminal is only for LV-7292A,
LV-7297A, LV-7392A, LV-8227A.)
Note:
LAN Connection Terminal is for the Network function.
Refer to the user’s manual of “Network Set-up and
Operation” .
⑫ Power Cord Connector
Note:
Replace only with the same types of the supplied cords
or cables. Using improper cords or cables may cause
an electric shock or a fire.
⑬ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
⑭ Air Intake Vent (Filter)
⑮ Adjustable Foot
Kensington Security Slot
This slot is for a Kensington lock used to deter
theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
CAUTION
Do not turn on a projector with lens cap attached.
High temperature from light beam may damage
lens cap and result in fire hazard.
⑪
⑨
Bottom
⑮
①
⑬
⑬
⑫
⑭
④
⑩
CAUTION
Internal fan is equipped in this projector, do not
block the Air Intake Vent, otherwise it may cause
a fire.
