Chapter 2
12

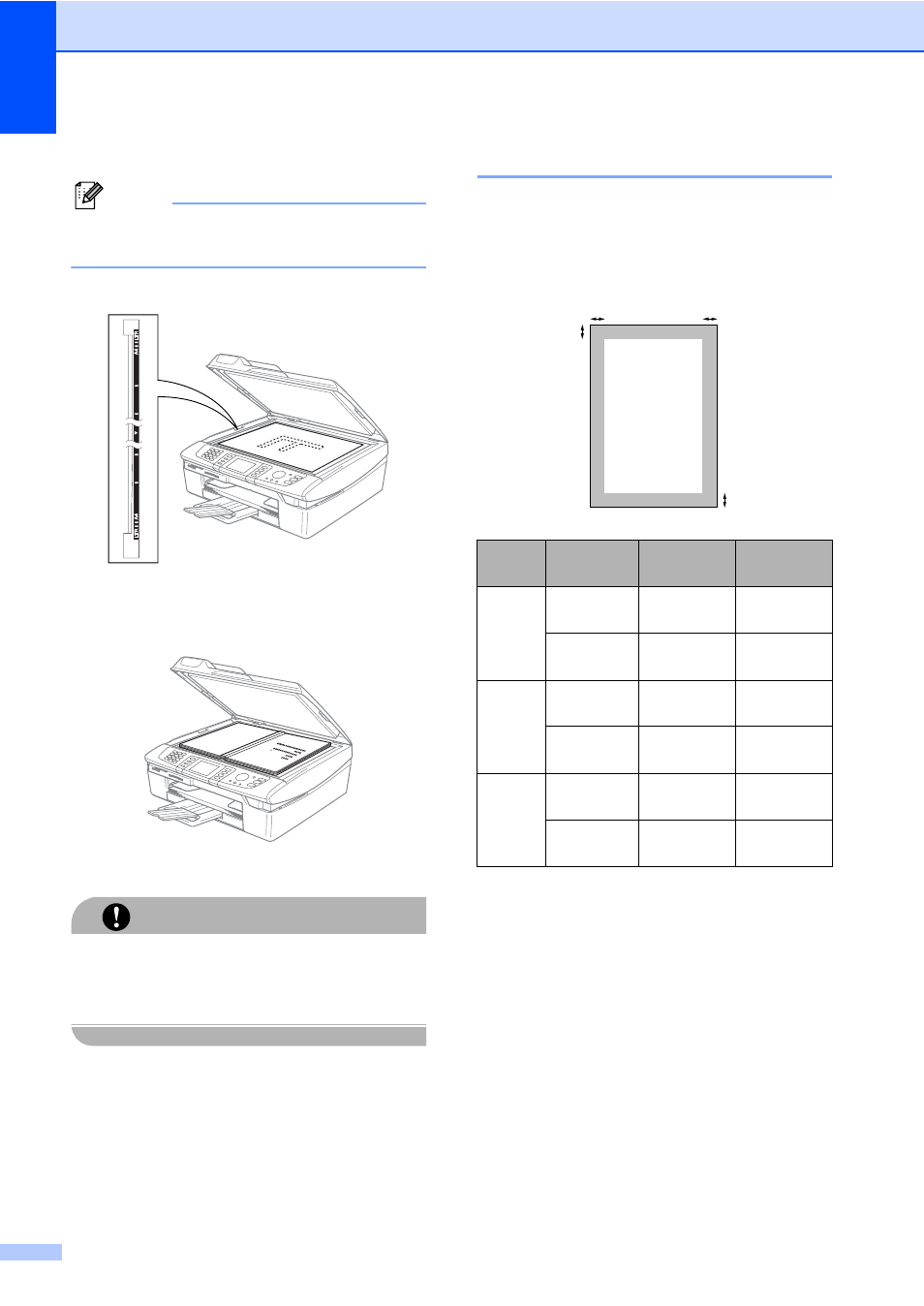

How to load documents
2
Note
To use the scanner glass, the ADF must
be empty.
a
Lift the document cover.
b
Using the document guidelines on the
left, center the document face down on
the scanner glass.
c
Close the document cover.
CAUTION
If you are scanning a book or thick
document, DO NOT slam the cover or
press on it.
Scanning area
2
The scanning area depends on the settings in
the application you are using. The figures
below show the areas you cannot scan on
paper.
Usage Document
Size Top (1)
Bottom (2) Left (3)
Right (4)
Fax Letter 0.12 in.
(3 mm) 0.16 in.
(4 mm)
A4 0.12 in.
(3 mm) 0.04 in.
(1 mm)
Copy Letter 0.12 in.
(3 mm) 0.12 in.
(3 mm)
A4 0.12 in.
(3 mm) 0.12 in.
(3 mm)
Scan Letter 0.12 in.
(3 mm) 0.12 in.
(3 mm)
A4 0.12 in.
(3 mm) 0 in.
(0 mm)
3 4
1
2
