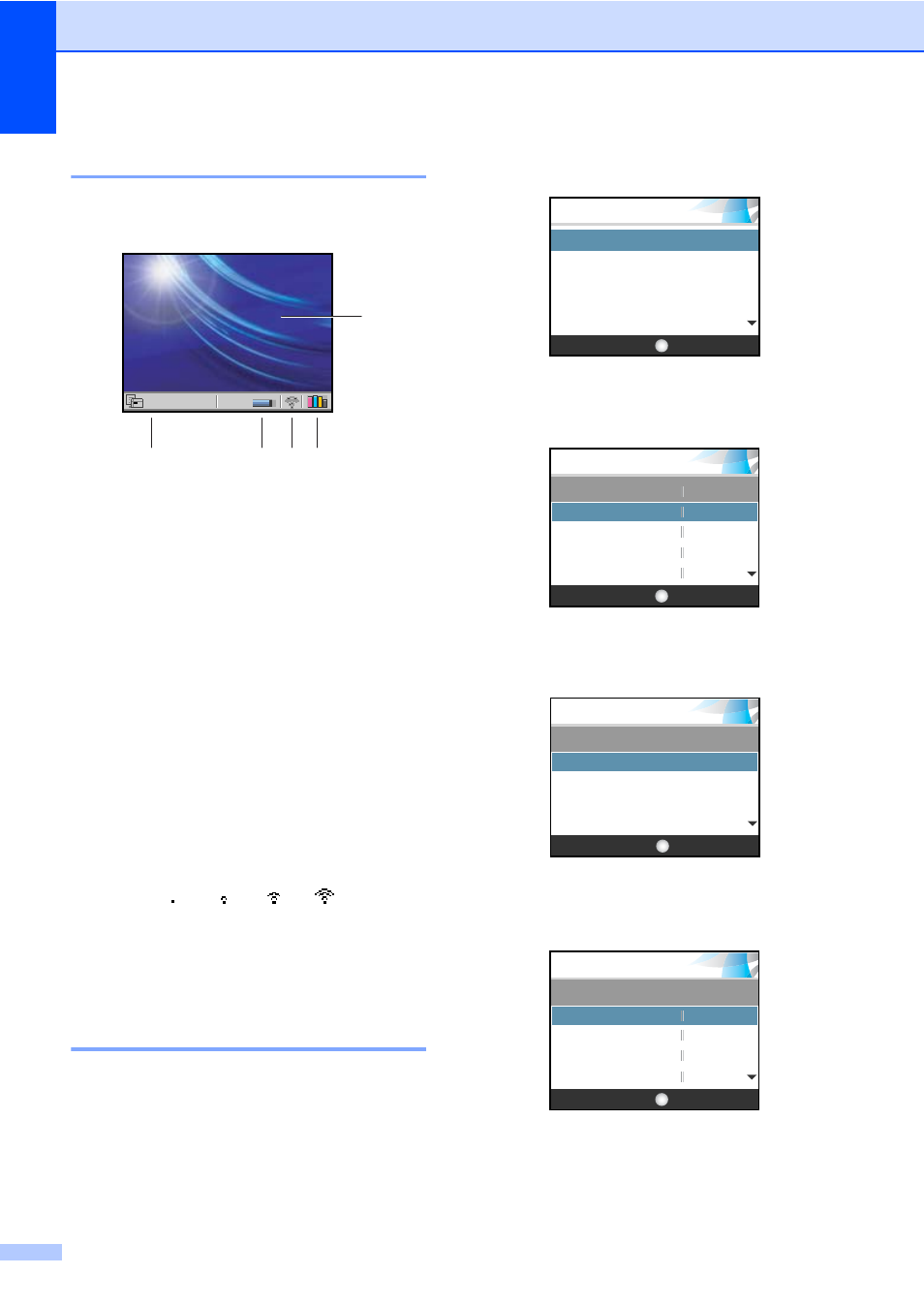

LCD display screen
1
The LCD shows the current machine status
when the machine is idle.
1 Current Receive Mode
Lets you see the current receive mode.
„ Fax (Fax only)
„ F/T (Fax/Tel)
„ TAD (External TAD)
„ Mnl (Manual)
2 Fax in the machine’s memory
Shows how many received faxes are in the
memory.
3 Memory Status
Lets you see the available memory in the
machine.
4 Wireless Status
A four level indicator shows the current
wireless signal strength if you are using a
wireless connection.
5 Ink indicator
Lets you see the available ink volume.
Basic Operations
1
For example to set Mode Timer to 30 Secs.
a
Press Menu.
b
Press a or b to choose
General Setup.
c
Press OK.
d
Press a or b to choose Mode Timer.
e
Press OK.
f
Press a or b to choose 30 Secs.
g
Press OK.
You can see the current setting on the
LCD:
h
Press Stop/Exit.
