Page 25
22

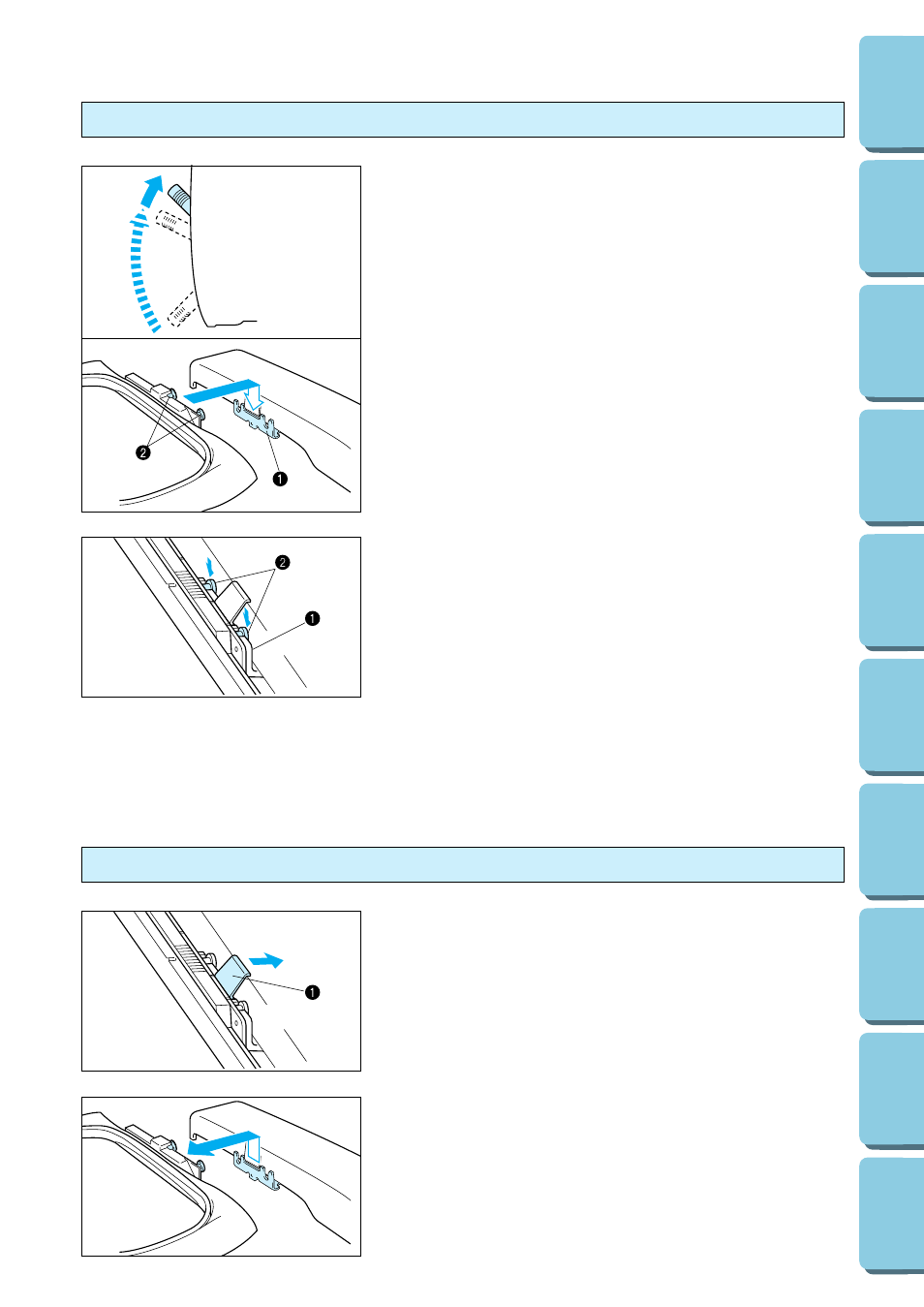

1. Raise the presser foot to its highest position. Then pass the
embroidery frame under the presser foot with the mounting
pins on the right side and the fabric right side up.
2. Align the two pins on the embroidery frame with the frame
holder, and then insert the frame into the frame holder until
a click is heard.
*
Be sure to insert both pins. If only the forward or the back
pin is inserted, the pattern may not turn out correctly.
1
Frame holder
2
Pins
1
Frame holder
2
Pins
Fitting the embroidery frame to the machine
Push the release lever to the right and remove the embroidery
frame by pulling up.
1
Release lever
Removing the embroidery frame
