Illus. No.
Part No.
Qty. Description
1
160017
1
Special Dummy Lock Only
160104
1
Lock Cam ONLY
2
160016
1
Lock Cam ONLY
3
881053
1
ADC Logo with Tape
4
881315*
1
AD-76AQ Control Door Assembly
(includes illus. nos. 4 through 7)
881316*
1
AD-76AQ Stainless Steel Control Door Assembly
(includes illus. nos. 4 through 7)
5
180202
1
AD-76AQ Top Trim Strip (Gray) with Lock Hole (38-1/4" length)
6
117603
3
Sponge Tape / Gasket (sold by the foot)
7
150201
6
# 10-32 x 1/4" Phillips Round Head Machine Screw
8
150415
4
# 10-32 x 1/2" Phillips Round Head Crimptite Screw
9
102600
1
Control Door Rod Support Catch
10
102600
1
Control Rod Retainer Clip
11
102502
1
Control Door Support Rod
12
122641
1
15 Pin Microprocessor Connector
13
122706
**
Sockets
14
153000
2
#10 x 1/2" Hex Head Machine Screw
15
319754
1
Bracket
16
152001
1
8-32 Hex Nut
17
153018
1
#8 Internal Star Washer
18
121488
1
3/8" Rubber Cushioned Clamp
19
136989
1
Humidity Sensor Assembly
* Specify color when ordering.
** As required

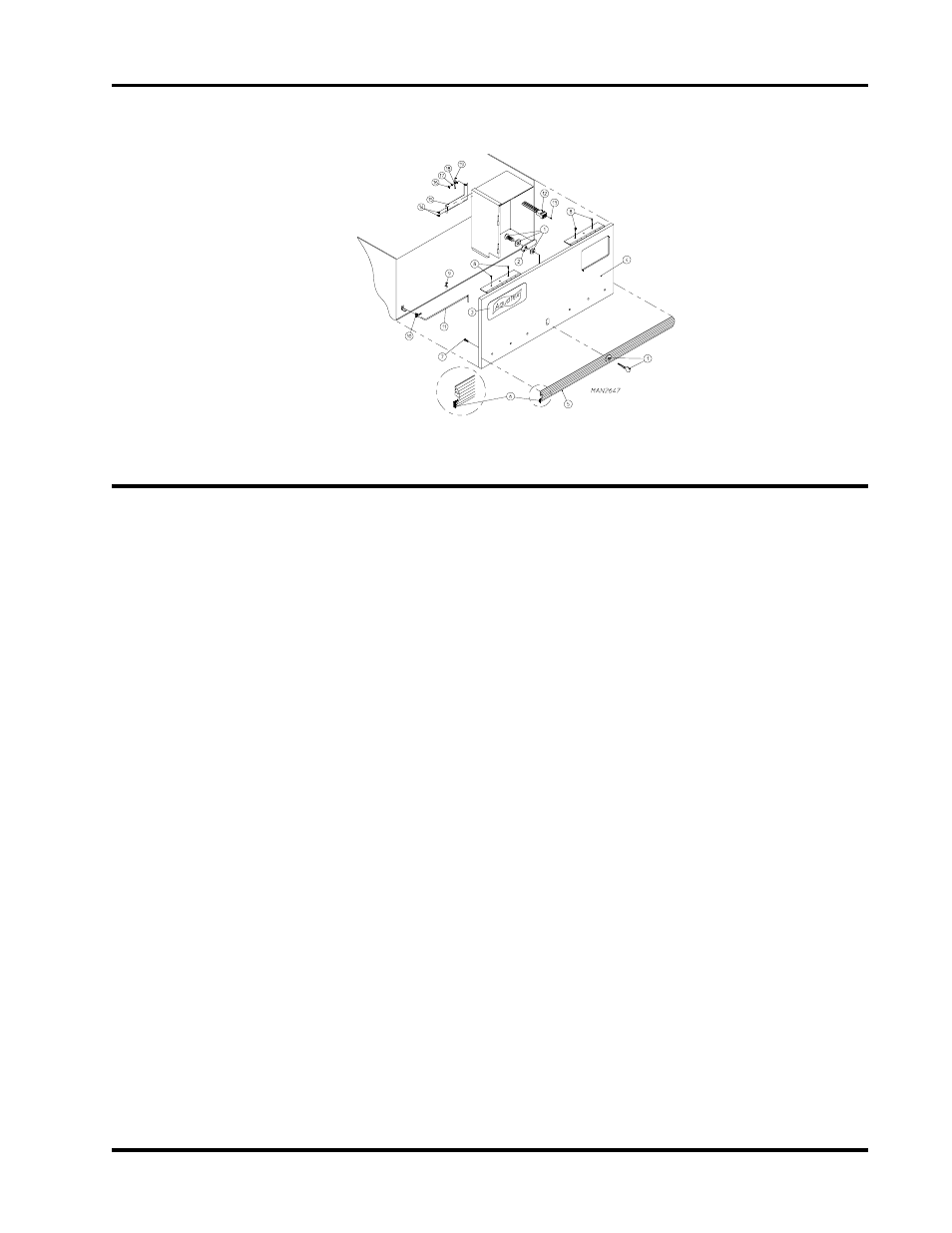

High Security Control Door Assembly
