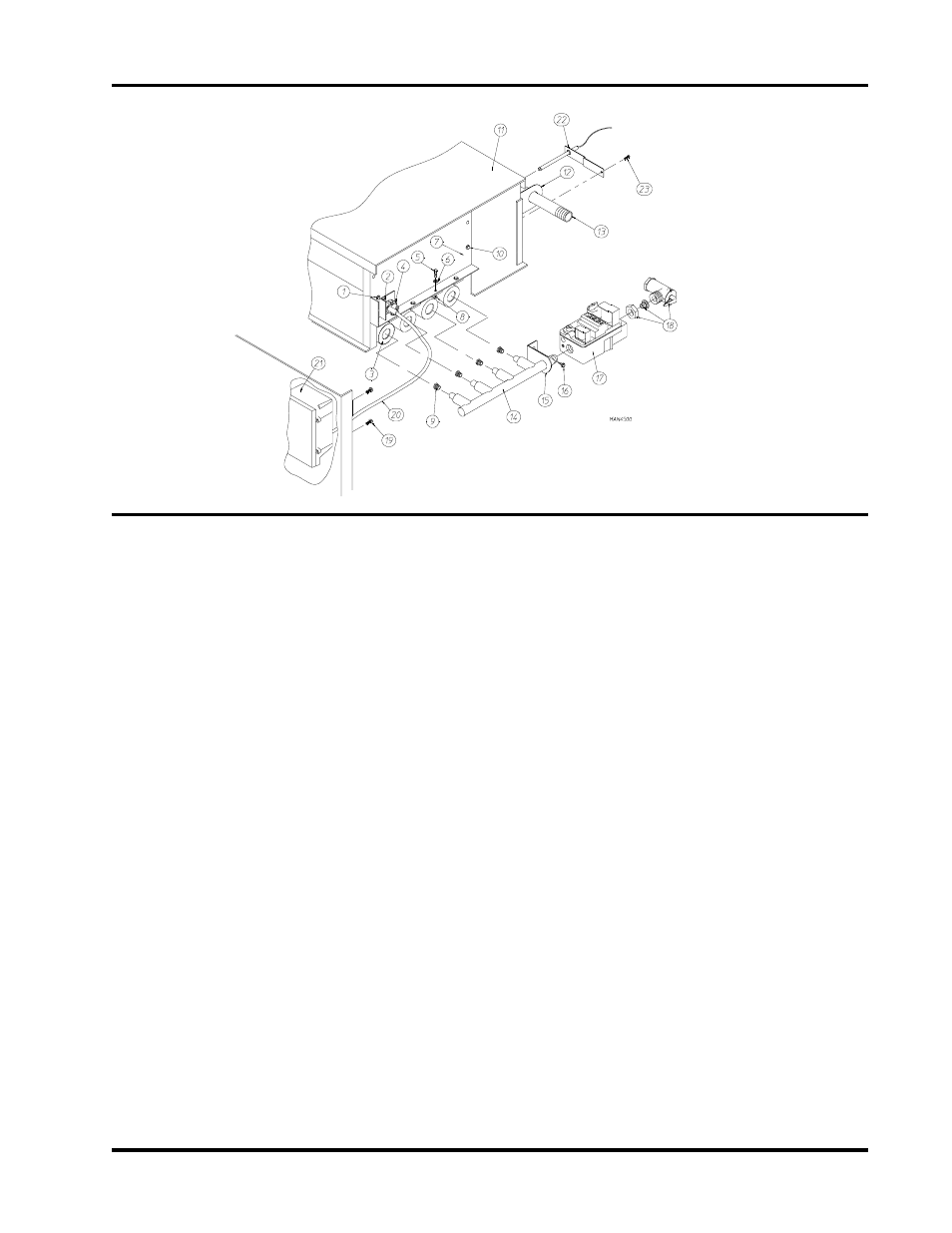

Burner Box Assembly / Gas & L.P.
Illus. No. Part No. Qty. Description
1 150415 2 #10-16 x 1/2" Phillips Round Head Crimptite Screw
2 150300 2 #10 x 1/2" Hex Washer TEK Screw
3 141105 4 Large Burner Tube
4 128915 1 DSI Ignitor/Flame Probe Assembly
5 150103 4 #8-32 x 3/4" Round Head Machine Screw
6 153000 4 #8 Steel Bur
7 802240 1 DSI Burner Shield (4-Tube Burner)
8 151001 4 #8-32 Pal Nut
9 140820 4 Burner Orifice #29 (for Natural Gas)
140805 4 Burner Orifice #47 (for Liquid Propane)
10 150415 2 #10-16 x 1/2" Phillips Round Head Crimptite Screw
11 802237 1 Burner Box Weldment
12 318700 2 Pipe Bracket (Bent)
13 142809 1 1/2" x 29-1/8" Pipe
14 141210 1 3/4" DSI Manifold (4-Port)
15 323737 1 Pipe Bracket
16 150300 2 #10 x 1/2" Hex Washer TEK Screw
17* 128927 1 24VAC Gas Valve (Natural Gas)
880960 1 1/2" 24V L.P. (Liquid Propane) Gas Valve Assembly
140411 1 LP Gas Conversion Kit #2
18 881367 1 1/2" Union Shutoff With Tail Peice
19 150299 4 #10 x 1" Hex Washer TEK Screw
20 880330 1 DSI Ignitor HV Wire/Connector ONLY
21 880815 1 DSI Module ONLY 50/60Hz
22 829016 1 Aquatex Temperature Sensor Assembly
23 150300 1 #10-1/2" Hex Washer Head TEK Screw
