American Dryer Corp. Aquatex AD-76 - Manual (Page 31)

29
Telephone: (508) 678-9000 Fax: (508) 678-9447
Illus. No. Part No. Qty. Description
1 Gas Burner Assembly. See Page 19
2 Disconnect Panel Cover. See Page 26
3 Humidity Transmitter Assembly. See Page 15
4 Tumbler Bearing Assembly. See Page 10
5 Idler Bearing Assembly. See Page 11
6 Motor Mount Assembly. See Page 12,13
7 103500 4 Leveling Leg
8 152001 1 8-32 Hex Nut
9 153018 1 1/4" Flat Washer
10 121488 1 3/8" Rubber Cushioned Clamp
11 150200 2 #10 x 1/2" Hex Washer TEK
12 851182 1 Humidity Sensor Mount Assembly
13* ——— 1 Humidity Sensor (Included with P/N: 136989.) See Page 15
14 143110 66" 1/4" Poly Flo Tubing
15 100472 1 1/4" Compression x 1/8 MPT Straight Connector
16 143259 1 1/4" Bulkhead Fitting
17 319753 1 Aluminum Airjet Tube
* Not Sold Separately Specific Resistive Calibration

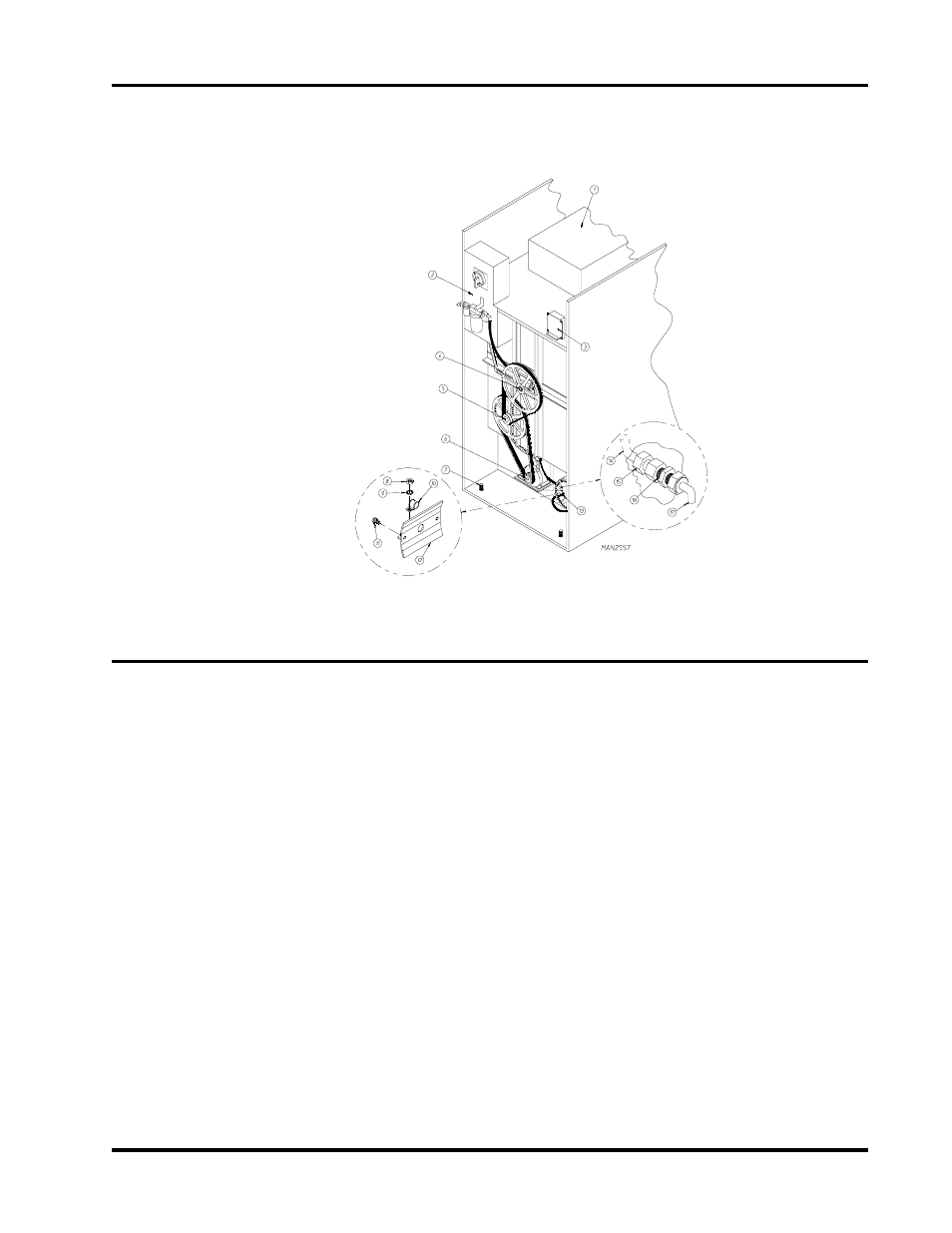

Rear View Gas
