Illus. No. Part No.
Qty. Description
1
132451
1
Double Pole Contactor
2
137060
1
Arc Suppressor Board
3
137013
4
PC Board Mounting Standoff
4
120765
1
Standard End Stop
5
120766
1
Small End Section
6
150301
2
#8-18 x 7/16" Phillips Pan Head TEK Screw
7
136019
1
5 x 20mm 1.0 Amp Fuse
8
136017
1
5 x 20mm 3.15 Amp Fuse
9
136103
2
5 x 20mm Fuse Holder
10
120758
2
Feed Through Terminal Block
11
120995
2
Bus Bar Screws
12
120994
1
Bus Bar
13
829042
1
Transformer with Terminals
14
319757
1
Bottom Panel

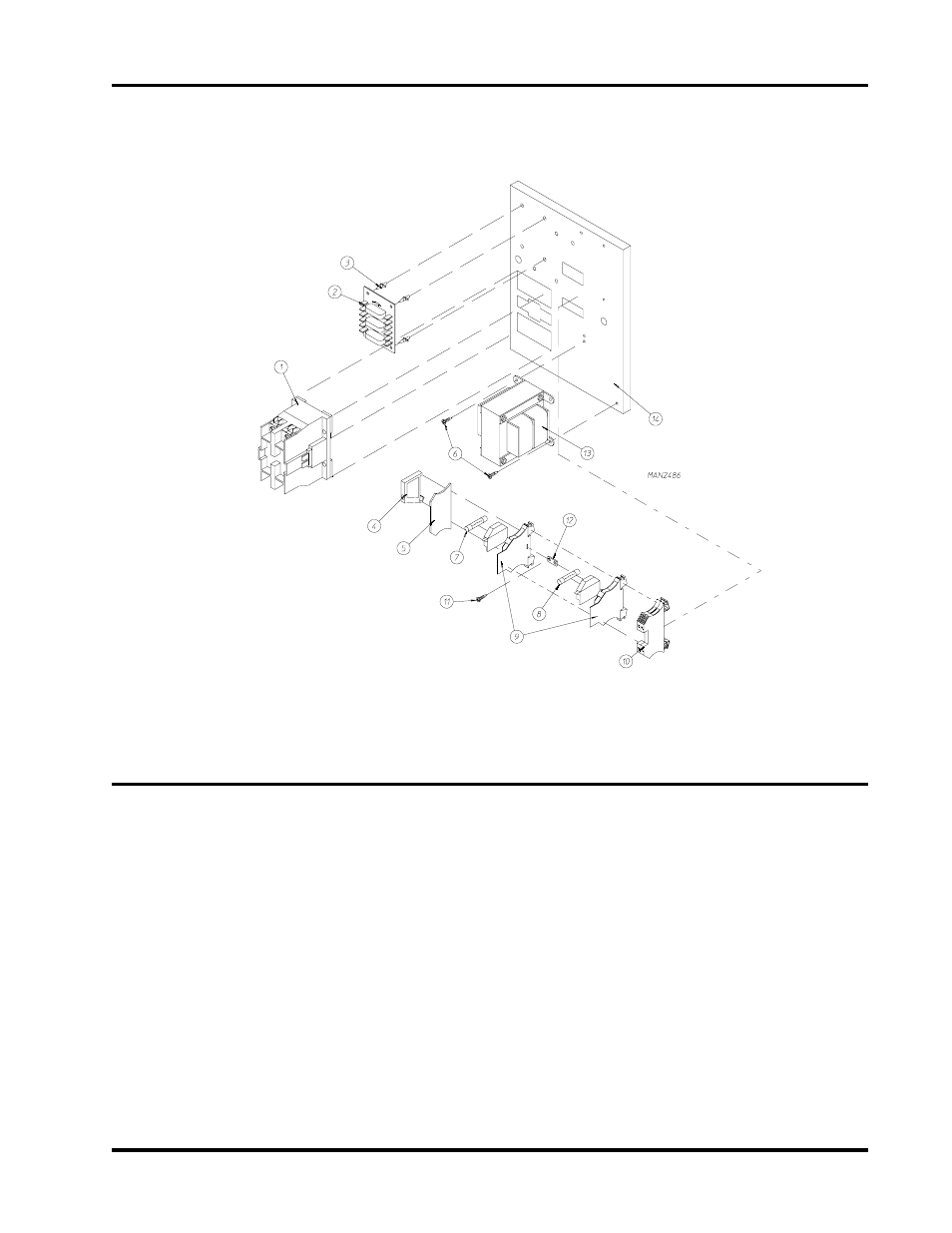

Rear Electrical Panel Assembly 208-240V Gas
