Illus. No. Part No. Qty. Description
1 800150 1 Knob Latch Kit Assembly (includes illus. nos.1 and 2)
160200 1 Knob Latch ONLY with 2 Screws (without cam)
160003 1 Dummy Lock ONLY
2 160008 1 Lock Cam for AD-100 and Dummy Lock
160009 1 Knob Latch Adjustable Cam ONLY
150425 1 #12-24 x 3/8" Round Head Machine Screw ONLY
(screw for Knob Latch Adjustable Cam)
3 157000 1 Drop Lint Door Spring
4 881318 1 AD-76AQ Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
881317 1 AD-76AQ Stainless Steel Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
5 150201 6 # 10-32 x 1/3" Phillips Pan Head TEK Screw
6 117604 7 Neoprene Sponge Tape (sold by the foot)
7 117603 3 Sponge Tape / Gasket (sold by the foot)
for models mfd. as of February 8, 1995
102307 3 Trim Bumper Gasket (sold by the foot)
for models mfd. prior to February 8, 1995
8 180212 1 Mid Trim / Kick Plate - Gray (38-1/4" length)
9 150419 2 # 6 x 1/2" Tamper Proof TEK Screw
10 108120 1 Chain for Drop Lint Door (10-1/2" length)
— 150418 1 Tamper Proof Screw Hand Driver
* Specify color when ordering.

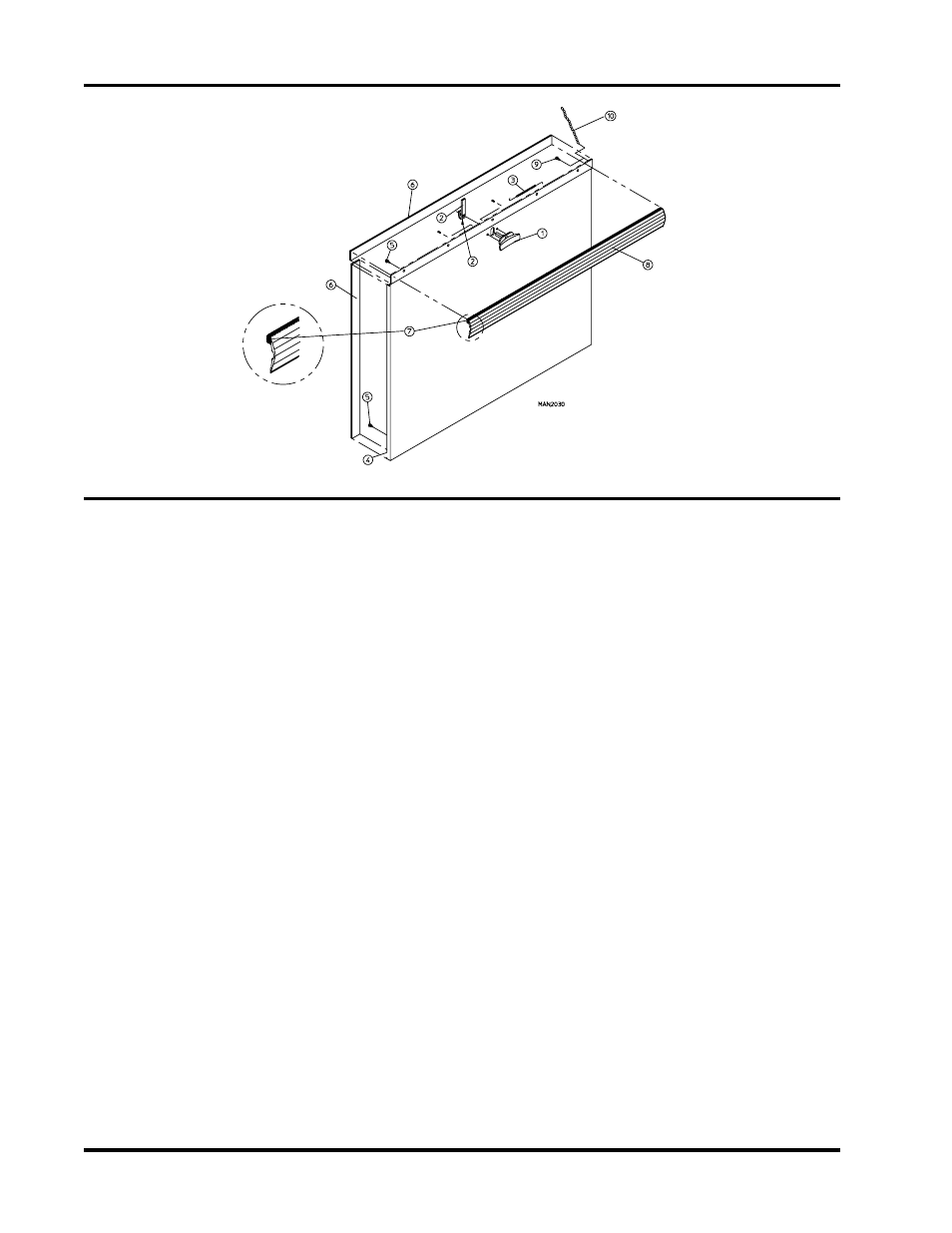

Drop Lint Door Assembly
