Illus. No.

Part No.

Qty. Description

1

143153

1

1/4" Poly x 1/4" MPT Elbow

2

141007

1

Air Jet Pre Filter

3

143240

1

1/4' Close Nipple

4

141008

1

Air Jet Pre Filter

5

182522

1

1/4" x 1/8" Reducing Bushing

6

143238

1

1/8" Close Nipple

7

100520

1

1/8" Muffler

8

829020

1

3-Way Valve Assembly

9

143268

1

1/8" 90 Street Elbow

10

153018

2

1/4 Flat Washer

11

153007

2

1/4 Split Lock Washer

12

150512

2

1/4-20 x 1/2" HH-MB

13

150300

2

#10 x 1/2" Hex Washer Head TEK Screw

14

319750

1

Mounting Bracket

15

132486

1

Disconnect Switch (Lockable)

16

319781

1

Aquatex Rear Panel ONLY (Electric ONLY)

17

121400

2

7/8" I.D. Universal Bushing

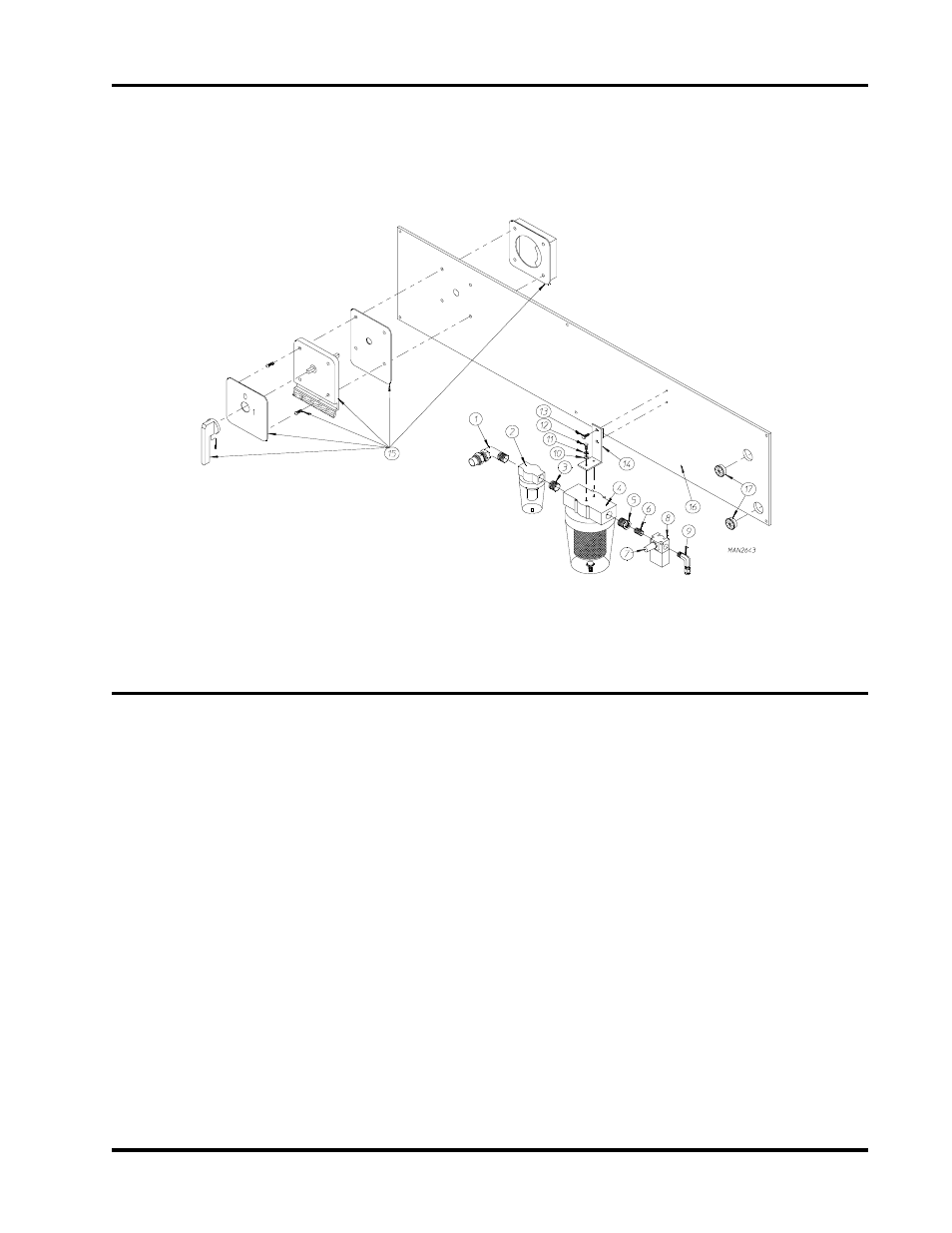

Main Electrical Disconnect / Air Filter Assembly Electric
