Illus. No. Part No. Qty. Description
1 851157 1 CE Electrical Panel
2 132486 1 Power Disconnect
3 131369 1 Oven Contactor (for 208-240V)
4 132451 1 Blower Motor Contactor
5 120994 1 Bus Bar
6 137060 1 Arc Suppressor Board
7 829042 1 Transformer with Terminals (for 208-240V)
8 120995 2 Bus Bar Screws
9 136103 2 5 x 20mm Fuse Holder
10 120765 1 Standard End Stop
11 137013 4 PC Board Mounting Standoff
12 153012 3 #8 Star Washer
13 152001 3 8/32 Hex Nut
14 120766 1 Small End Section
15 136019 1 5 x 20mm 1.0 Amp Fuse
16 136017 1 5 x 20mm 3.15 Amp Fuse
17 150009 2 6-32 x 1-1/2" Phillips Round Head Machine Screw
18 120701 1 4 Terminal Block
19 319724 1 Aquatex Power Distribution Bracket
20 151000 2 6-32 Pal Nut

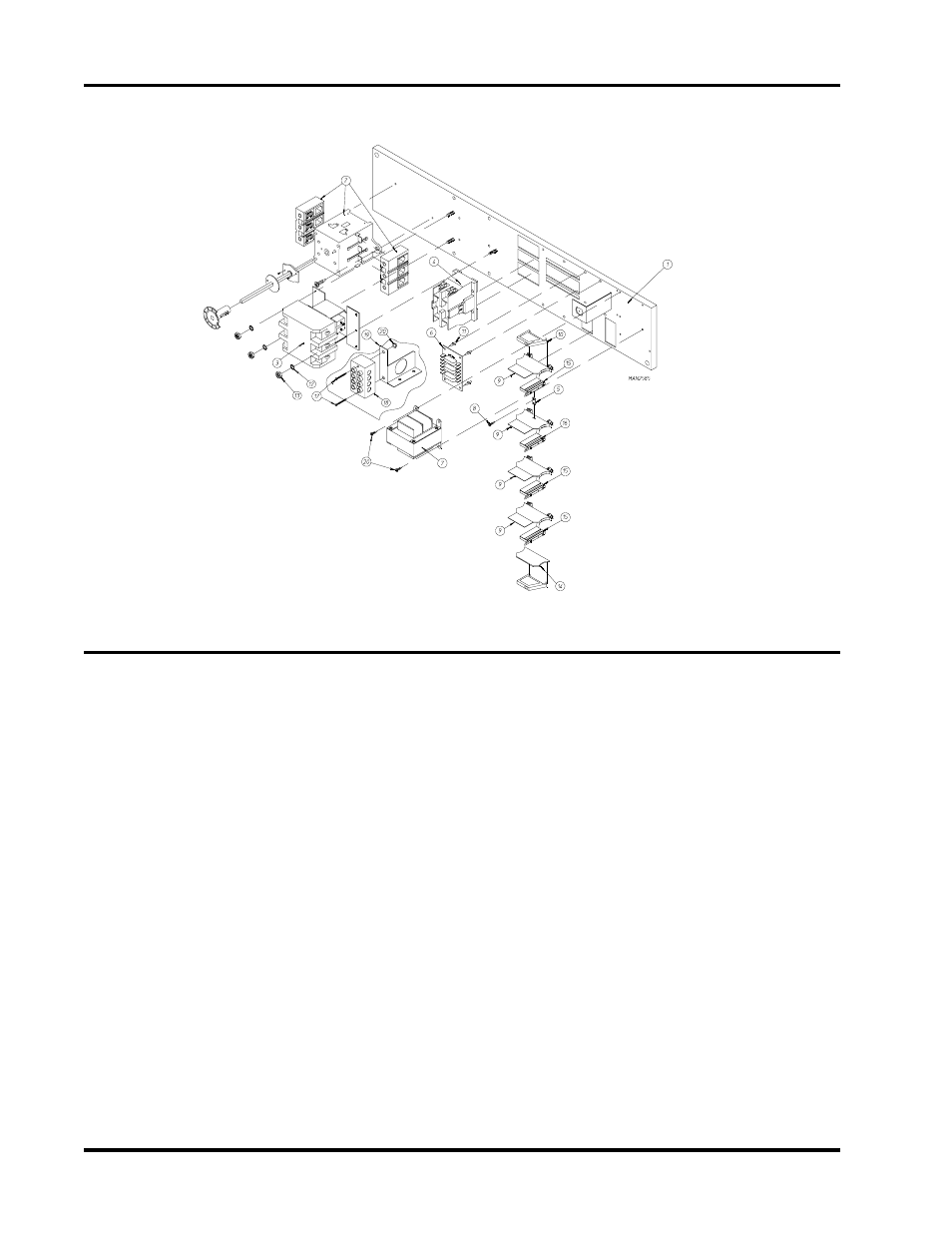

Rear Electrical Panel Assembly 208-240V Electric
