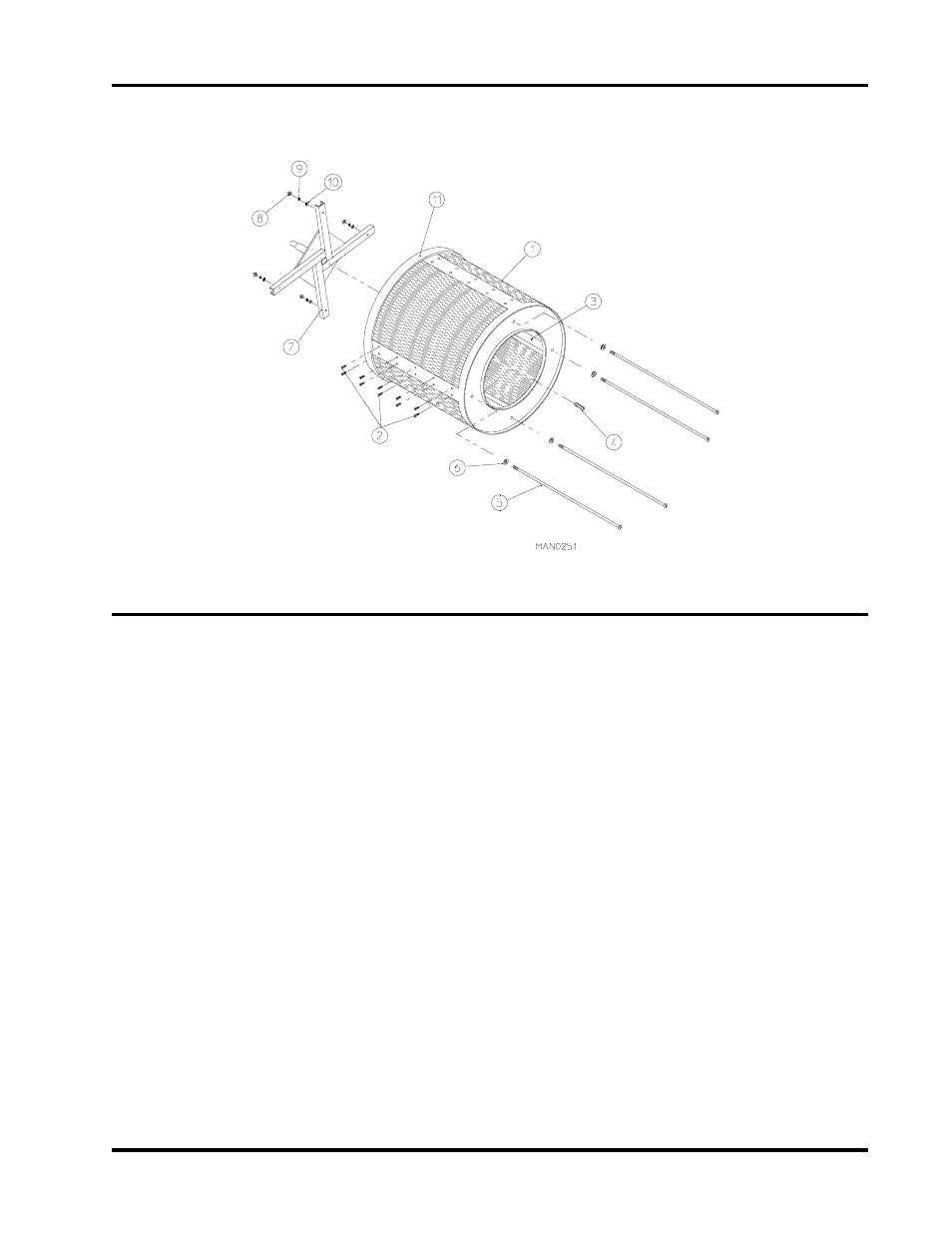

Basket (Tumbler) / Support Assembly
Illus. No. Part No. Qty. Description
1 800708 1 AD-76AQ Basket (Tumbler) ONLY without Felt Collar
800857 1 AD-76AQ Stainless Steel Basket (Tumbler) ONLY
without Felt Collar
800816* 1 AD-76AQ (1-3/4") Basket (Tumbler) and Support
Assembly Complete (includes illus. nos. 1 through 10)
800873* 1 AD-76AQ Stainless Steel (1-3/4") Basket
(Tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10)
2 150415 40 # 10-16 x 1/2" Phillips Round Head Crimptite Screw
3 301308 4 AD-76AQ Basket (Tumbler) Rib ONLY
4 301408 4 AD-76AQ Stainless Steel Basket (Tumbler) Rib ONLY
150500 1 # 5/16-18 x 3/4" Socket Button Head Screw
5 100905 4 # 3/8-16 x 37" Tie Rod
6 153004 4 3/8" Flat Washer
7 800613 1 AD-76AQ (1-3/4'") Basket (Tumbler)
Support ONLY
8 152005 4 3/8" Hex Nut
9 153005 4 3/8" Lock Washer
10 153004 4 3/8" Flat Washer
11 116000 1 Felt Collar ONLY
— 401010 1 # 847 Adhesive for Felt Collar
