18
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1 154004 1 Twin Speed Nut
2 150415 2 #10-16 x 1/2" Phillips Round Head Crimptite Screw
3 802799 1 Sail Switch Box Cover and Bracket ONLY
4 150303 2 #4 x 3/4" Pan Head Machine Screw
5 122200 1 Sail Switch ONLY
6 105500 1 Sail Switch Actuator Rod
7 319202 1 Sail Switch Damper (flat)
8 154002 1 1/8" Push-On Fastener
9 802800 1 Sail Switch Box with Cover and Bracket ONLY
802801 1 Sail Switch Assembly Complete
(includes illus. nos. 1 through 8)
10 824534 1 ADG 50/75 Aquatex Sail Switch Harness (Gas ONLY)
11 143000 1 3/4" to 1/2" Reducing Coupling
12 142809 1 1/2" x 29-1/8" Pipe
13 318700 2 Pipe Bracket
14 150415 2 #10-16 x 1/2" Phillips Round Head Crimptite Screw
15 150415 2 #10-16 x 1/2" Phillips Round Head Crimptite Screw
16 824533 1 Hi-Limit Harness
17 319704 1 Hi-limit Mounting Bracket
18 150001 2 #6-32 x 1/2" Round Head Machine Screw
19 130401 1 L-330 Hi Limit Thermostat
20 151000 2 #6-32 Pal Nut

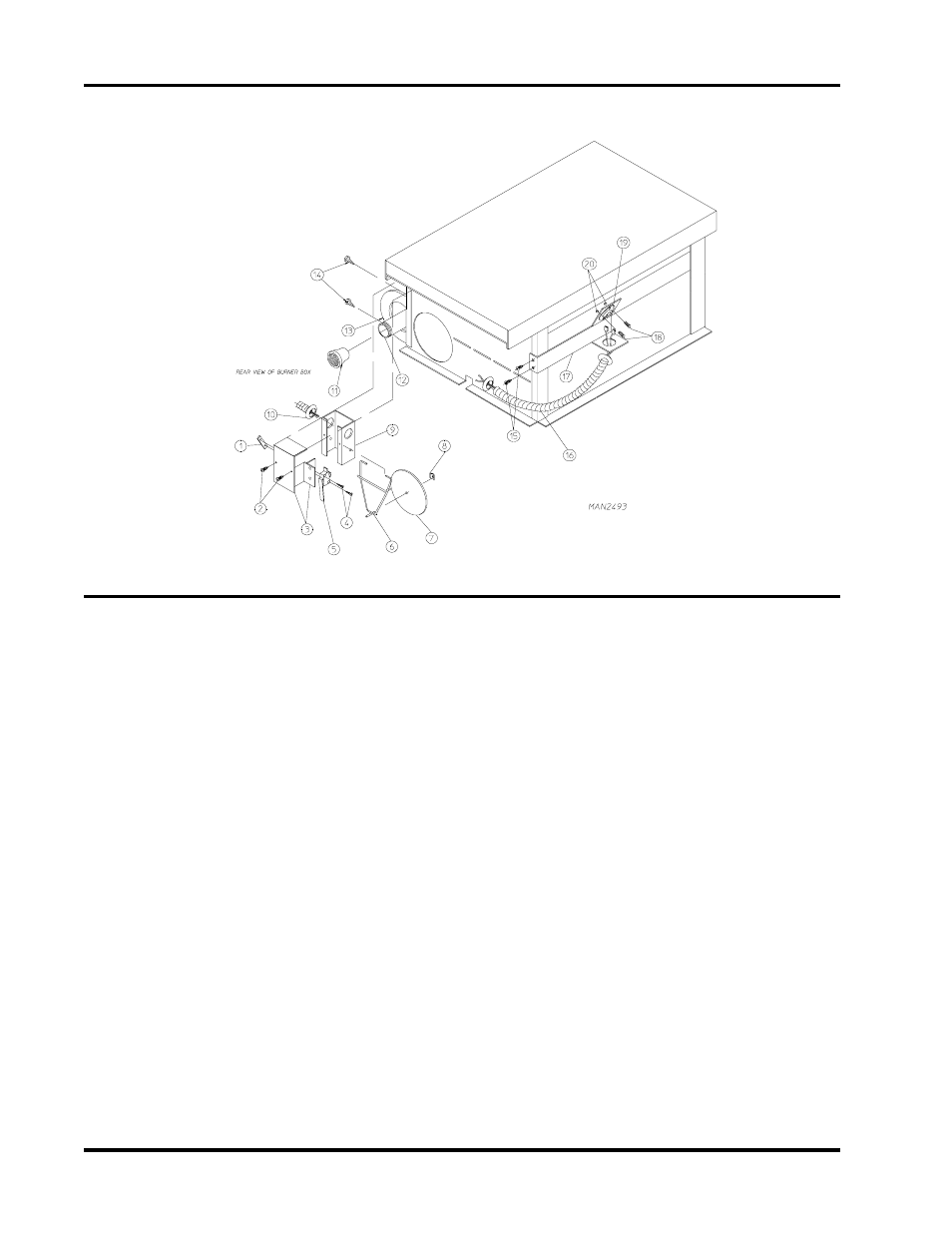

Sail Switch / High Limit Assemblies
