31

Telephone: (508) 678-9000 Fax: (508) 678-9447

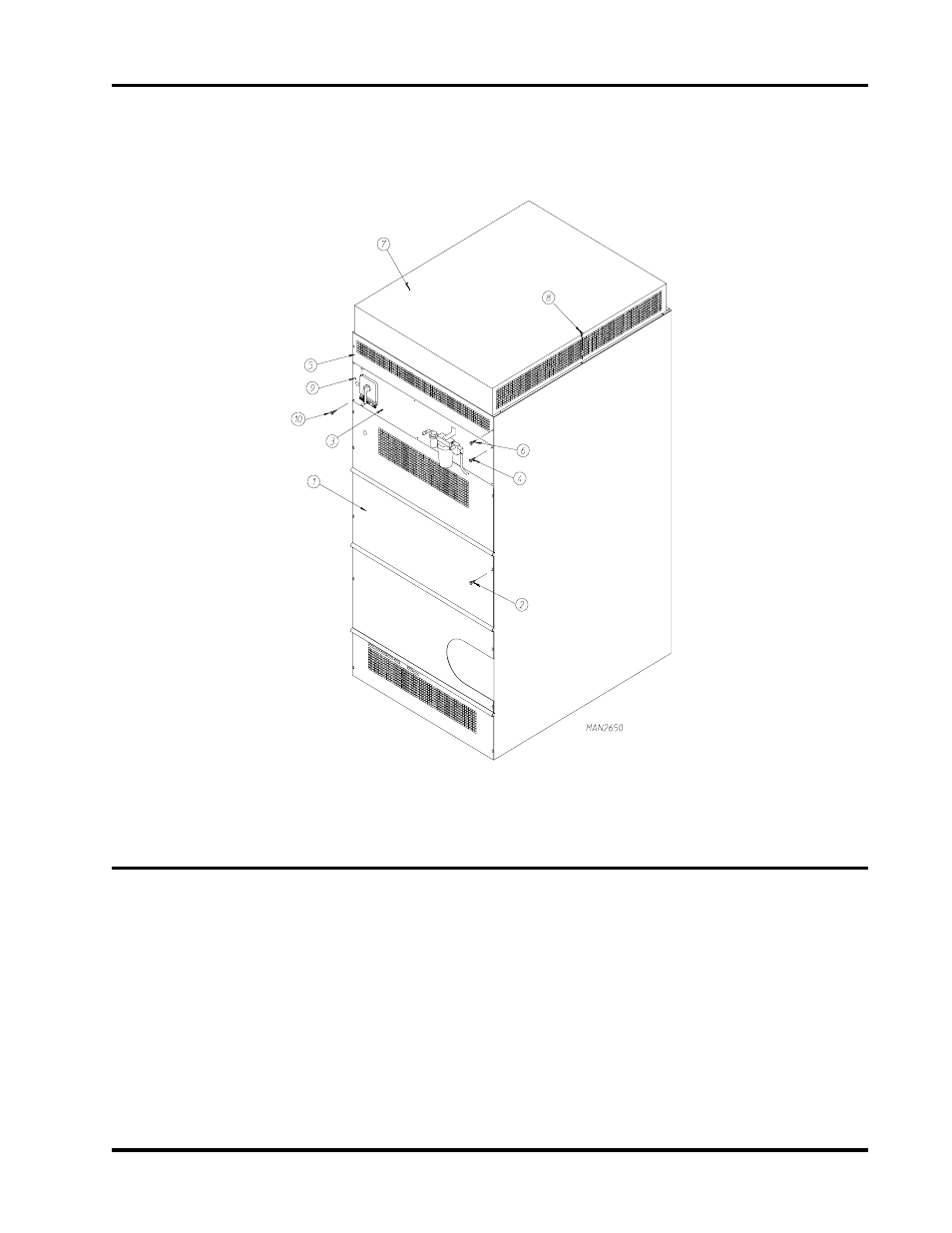

Rear & Top Panel Assembly Electric

Illus. No. Part No.

Qty. Description

1

314514

1

Plain Backguard

2

150301

10

#8-18 x 7/16" Phillips Pan Head TEK Screw

3

319781

1

Disconnect Panel ONLY

4

150301

6

#8-18 x 7/16" Phillips Pan Head TEK Screw

5

319776

1

Upper Backguard

6

150301

2

#8-18 x 7/16" Phillips Pan Head TEK Screw

7

830201

1

Aquatex Top

8

150301

6

#8-18 x 7/16" Phillips Pan Head TEK Screw

9

319748

1

Electrical Plate

10

150301

4

#8-18 x 7/16" Phillips Pan Head TEK Screw
