Illus. No. Part No. Qty. Description
1 880220 1 1-3/4" Flange Bearing
2 153025 4 9/16" Lock Washer
3 152050 4 #9/16-12 Hex Nut
4 150508 2 #3/8-16 x 3/4" Hex Head Machine Bolt
5 153005 2 3/8" Lock Washer
6 152005 2 #3/8-16 Hex Nut
7 150600 2 #3/8-16 x 1-1/2" Hex Head Machine Bolt
8 153004 * 3/8" Flat Washer
9 153005 2 3/8" Lock Washer
10 152005 2 #3/8-16 Hex Nut
11 150501 4 #5/16-18 x 3/4" Hex Head Machine Bolt
12 153002 4 5/16" Lock Washer
13 153001 4 5/16" Flat Washer
14 150621 2 #5/16-18 x 1-1/2" Hex Head Machine Bolt
15 152004 2 #5/16-18 Hex Nut
16 801101 1 1-3/8" Bearing Box Assembly Complete (includes illus. nos. 4 through 20)
801103 1 1-3/8" Bearing Box and Support ONLY
(includes illus. nos. 4 through 6, 16 and 17)
801105 1 1-3/8" Bearing Box ONLY
17 801104 1 Pillow Block Bearing Support ONLY
18 880202 1 1-3/8" Pillow Block Bearing ONLY
19 152004 2 #5/16-18 Hex Nut
20 150610 2 #5/16-18 x 1-1/2" Allen Set Screw
21 101100 1 18" Pulley
22 154301 2 #5/16-18 x 5/16" Allen Set Screw
23 100713 1 1/4" x 1/4" x 7/8" Key
24 100106 1 5L 690 "V" Belt (to idler assembly)

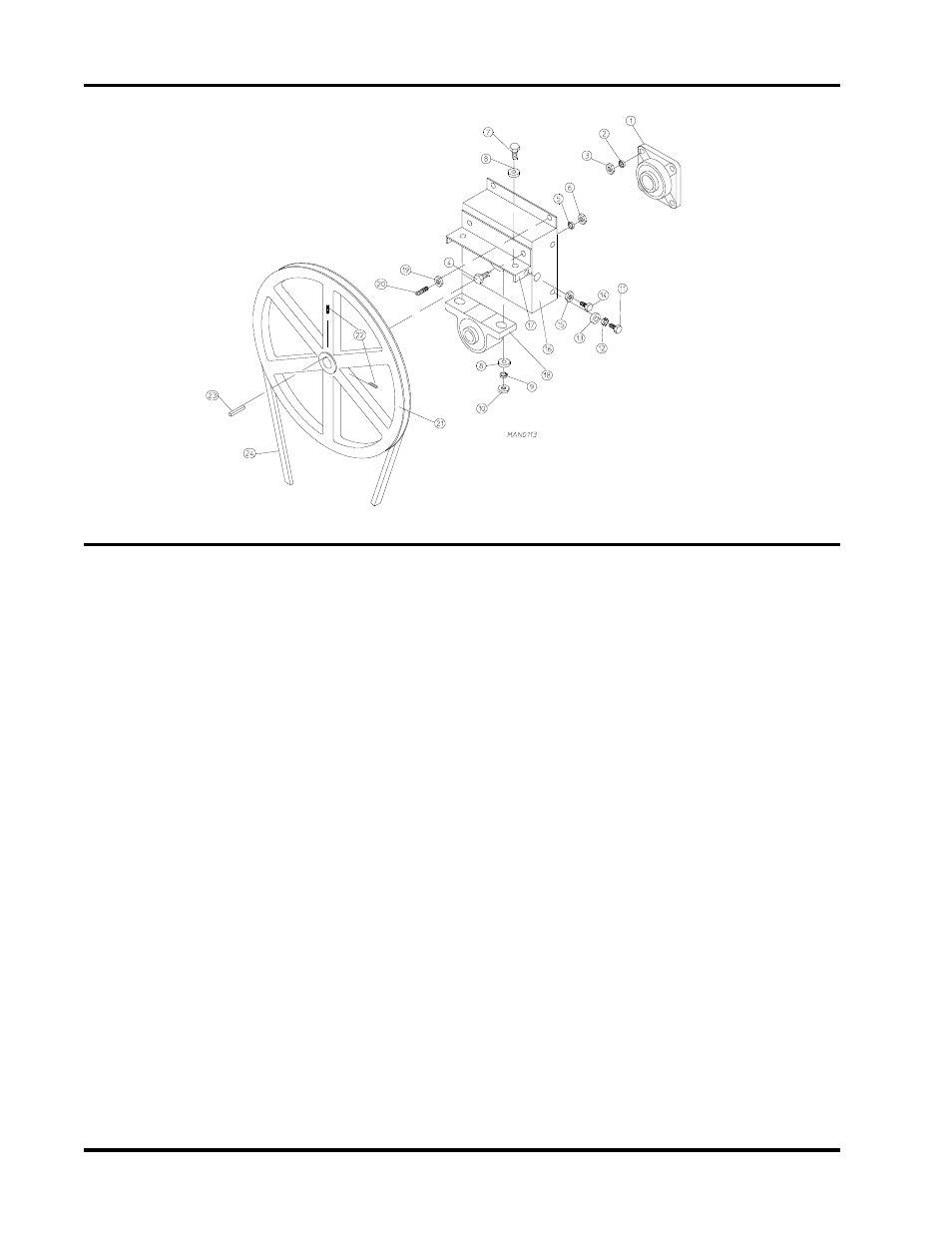

Tumbler Bearing Assembly
