Integration Test Registers
ARM DDI 0363E Copyright © 2009 ARM Limited. All rights reserved. 13-8
ID013010 Non-Confidential, Unrestricted Access
13.4.4 ITMISCOUT Register (Miscellaneous Outputs)
The ITMISCOUT Register at offset
0xEF8
is write-only. Figure 13-2 shows the register bit
assignments.

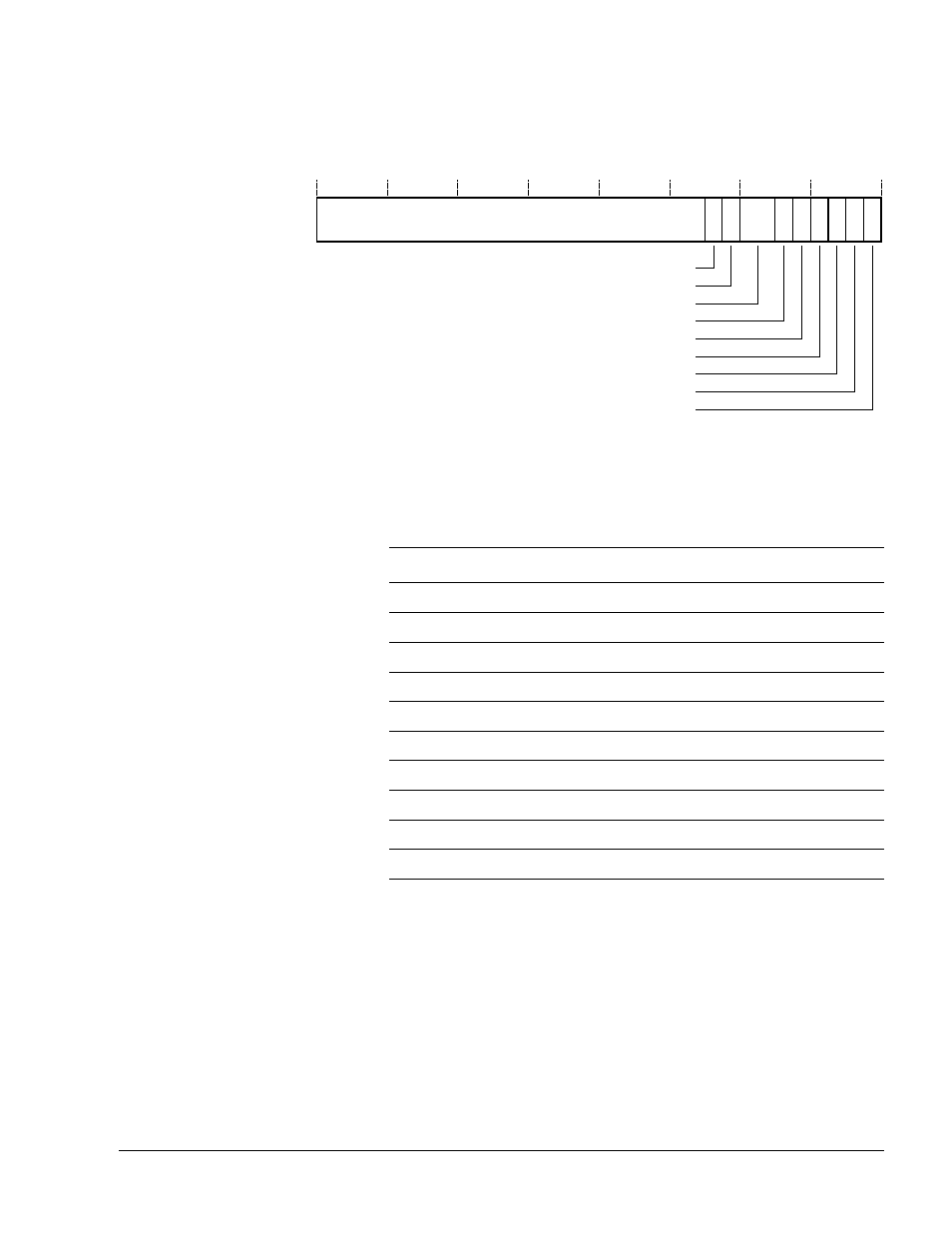

Figure 13-2 ITMISCOUT Register bit assignments
Table 13-5 shows the fields when writing the ITMISCOUT Register. When this register is
written the appropriate output pins take the value written.
13.4.5 ITMISCIN Register (Miscellaneous Inputs)
The ITMISCIN Register at offset OxEFC is read-only. Figure 13-3 on page 13-9 shows the
register bit assignments.
Reserved
31 5 4 3 0
nPMUIRQ
DBGTRIGGER
6 2 1
COMMTX
Reserved
DBGACK
COMMRX
7 8 9 10
Reserved
DBGRESTARTED
ETMWFIPENDING
Table 13-5 ITMISCOUT Register bit assignments
Bits Name Function
[31:10] - Reserved. Write as zero.
[9] DBGRESTARTED Set value of the DBGRESTARTED output pin.
[8] DBGTRIGGER Set value of the DBGTRIGGER output pin.
[7:6] - Reserved. Write as zero.
[5] ETMWFIPENDING Set value of the ETMWFIPENDING output pin.
[4] nPMUIRQ Set value of nPMUIRQ output pin.
[3] - Reserved. Write as zero.
[2] COMMTX Set value of COMMTX output pin.
[1] COMMRX Set value of COMMRX output pin.
[0] DBGACK Set value of the DBGACK output pin.
