ESC/P Command Reference
- 66 -
5. Control Command Details
ESC Y 8-dot double-speed double-density bit image
ASCII: ESC Y n1 n2 Data
Decimal: 27 89 n1 n2 Data
Hexadecimal: 1B 59 n1 n2 Data
Parameters
0≤n1≤255, 0≤n2≤3
The data contains n1+n2*256 bytes of image data.
Description
 Same as for an 8-dot double-density bit image. Horizontally neighboring dots are not omitted.
ESC Z 8-dot quadruple-density bit image
ASCII: ESC Z n1 n2 Data
Decimal: 27 90 n1 n2 Data
Hexadecimal: 1B 5A n1 n2 Data
Parameters
0≤n1≤255, 0≤n2≤7
The data contains n1+n2*256 bytes of image data.
Description
Specifies that an 8-dot quadruple-density bit image is printed with the number of dot positions indicated by n1
and n2.
 n1 and n2 are specified in the same way as with ESC K.
 Horizontally neighboring dots are not omitted.

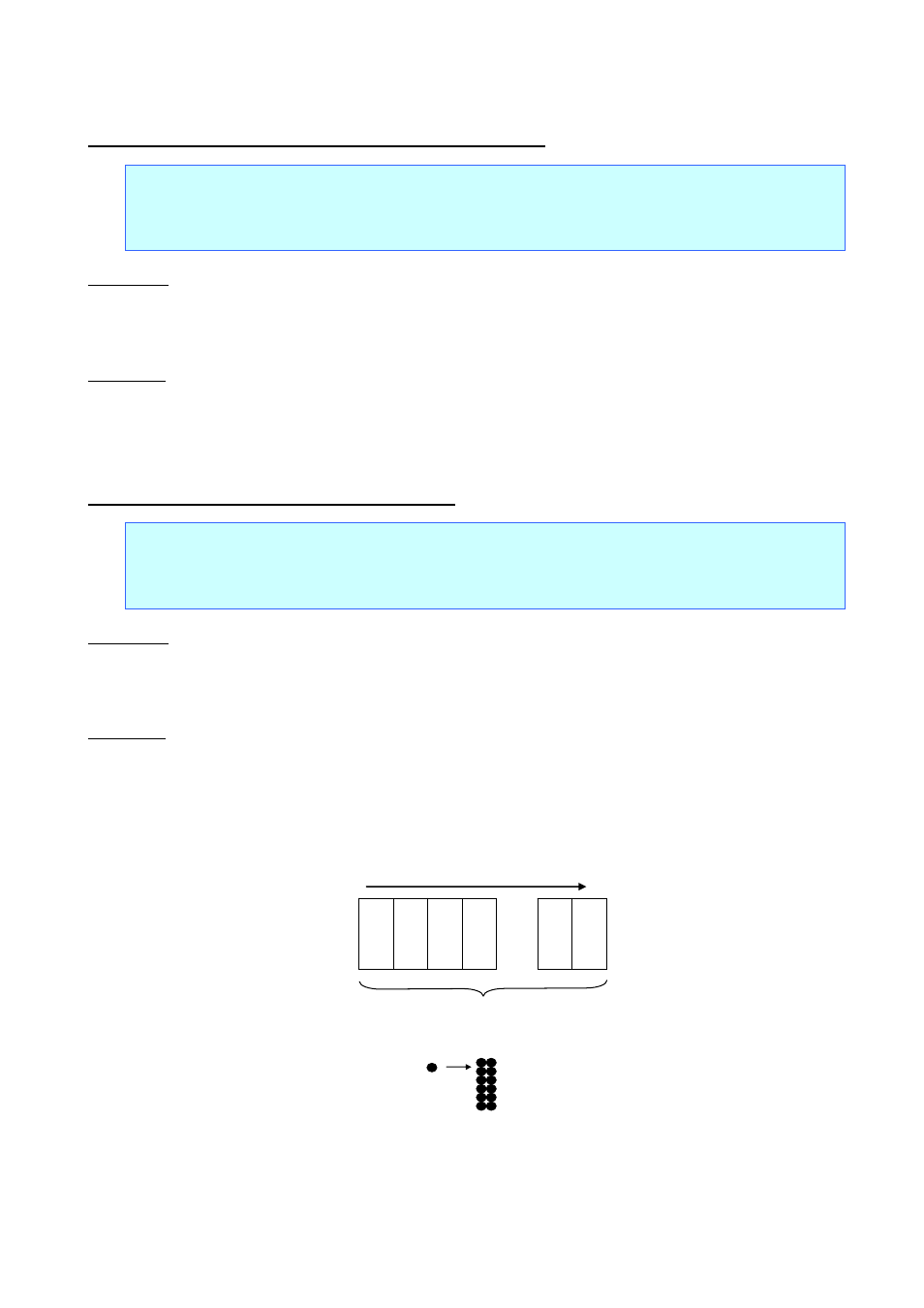

 First, the data is lined up in one row as follows:
1b
yt
e
1b
yt
e
1b
yt
e
1b
yt
e …
1b
yt
e
1b
yt
e
n1+n2*256 bytes
MSB
LSB
 One dot of image data is enlarged to 6 dots vertically by 2 dots horizontally.
 As a result, the image is 48 dots vertically by (n1+n2*256)*2 dots horizontally.
