Raster Command Reference
- 16 -
2. Print Data

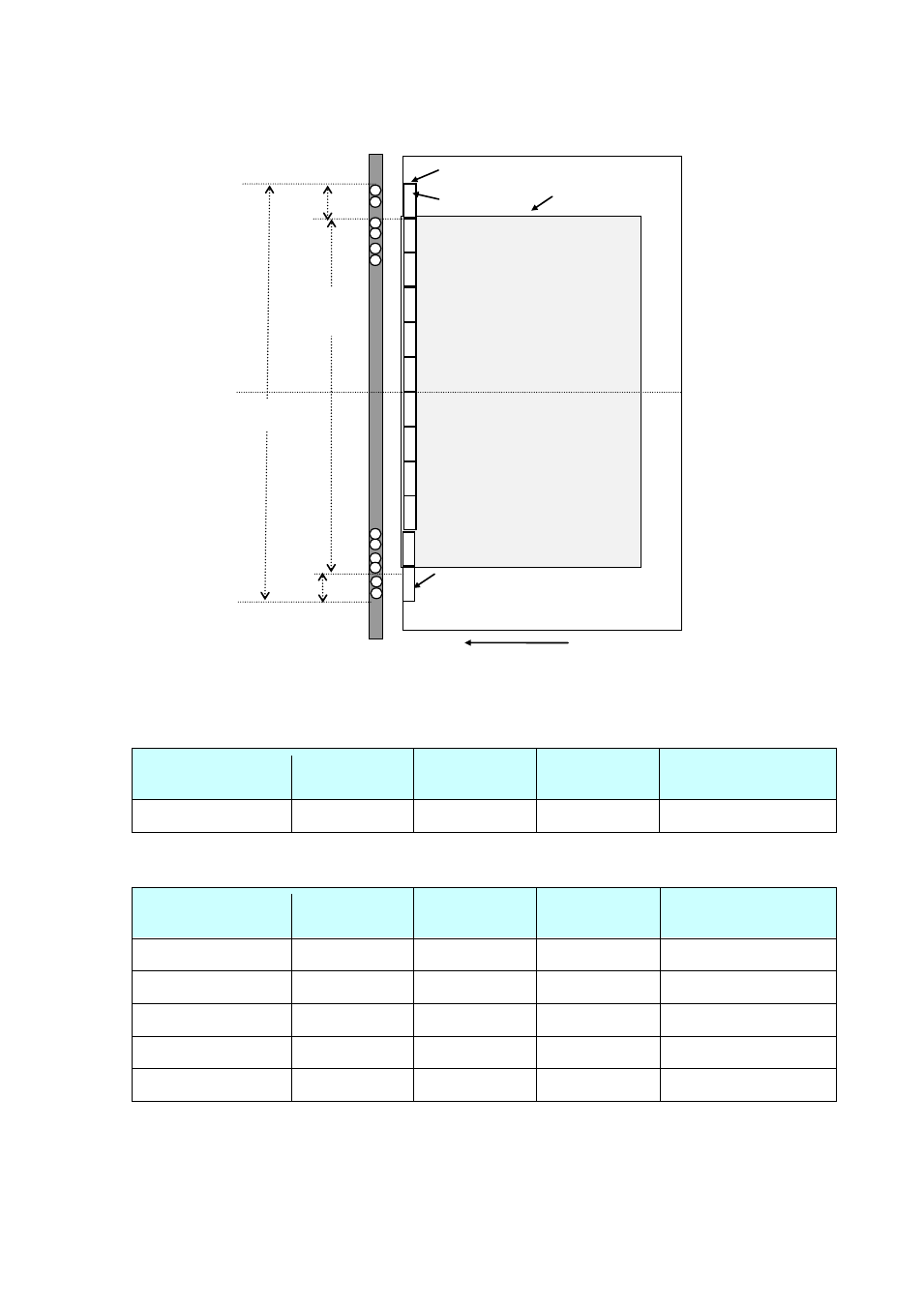

Total number of pins: 832 pins
0 pin
First byte
Left and right margins
Last byte
Raster line
Feeding direction
Print area
Pins on print head
Number of
print area
pins
Number of pins
for right margin
Total number
of pins
Number of pins
for left margin
Continuous length tape:
Tape Size
Number of Pins
for Left Margin
Number of Print
Area Pins
Number of Pins
for Right Margin
Number of Bytes for
Raster Graphics Transfer
102 mm 22 788 22 104
Die-cut labels:
Label Size
Number of Pins
for Left Margin
Number of Print
Area Pins
Number of Pins
for Right Margin
Number of Bytes for
Raster Graphics Transfer
102 mm x 25 mm 22 788 22 104
102 mm x 51 mm 22 788 22 104
102 mm x 76 mm 22 788 22 104
102 mm x 102 mm 22 788 22 104
102 mm x 152 mm 22 788 22 104
