Operation Features
Normal Display Operation
The IHH200 has a full 7 digit display, which can be scaled using the calibration menu to suit the application it is to be
used in. The display can display the instantaneous, peak or valley values. It is also possible to hold the display value
(this only operates when not in peak or valley mode).
The display update rate, decimal point position and resolution can be set to suit.
The IHH200 has two independent ranges. All values set in one range are totally independent from the other.
Switching the IHH200 On/Off
The IHH200 is switched ON or OFF by pressing and holding down the
button for 3 seconds.
It is also possible to set an Auto-off value in the configuration menu, so that the IHH200 automatically switches itself off
after a preset time, if there is no keyboard activity.
Range Button
The range feature allows for the setting of two totally independent setup ranges to be selected, if required. To switch
between ranges simply press the range button. If TEDS has been enabled then only 1 range is permissible.
When you enter either the calibration menu or configuration menu, the parameters you will be setting are those for the
range you have selected. An annunciator is lit to identify which range has been selected. The IHH200 is supplied with
engineering unit legends; these can be slid into a window, located on the inside of the front panel. These labels then

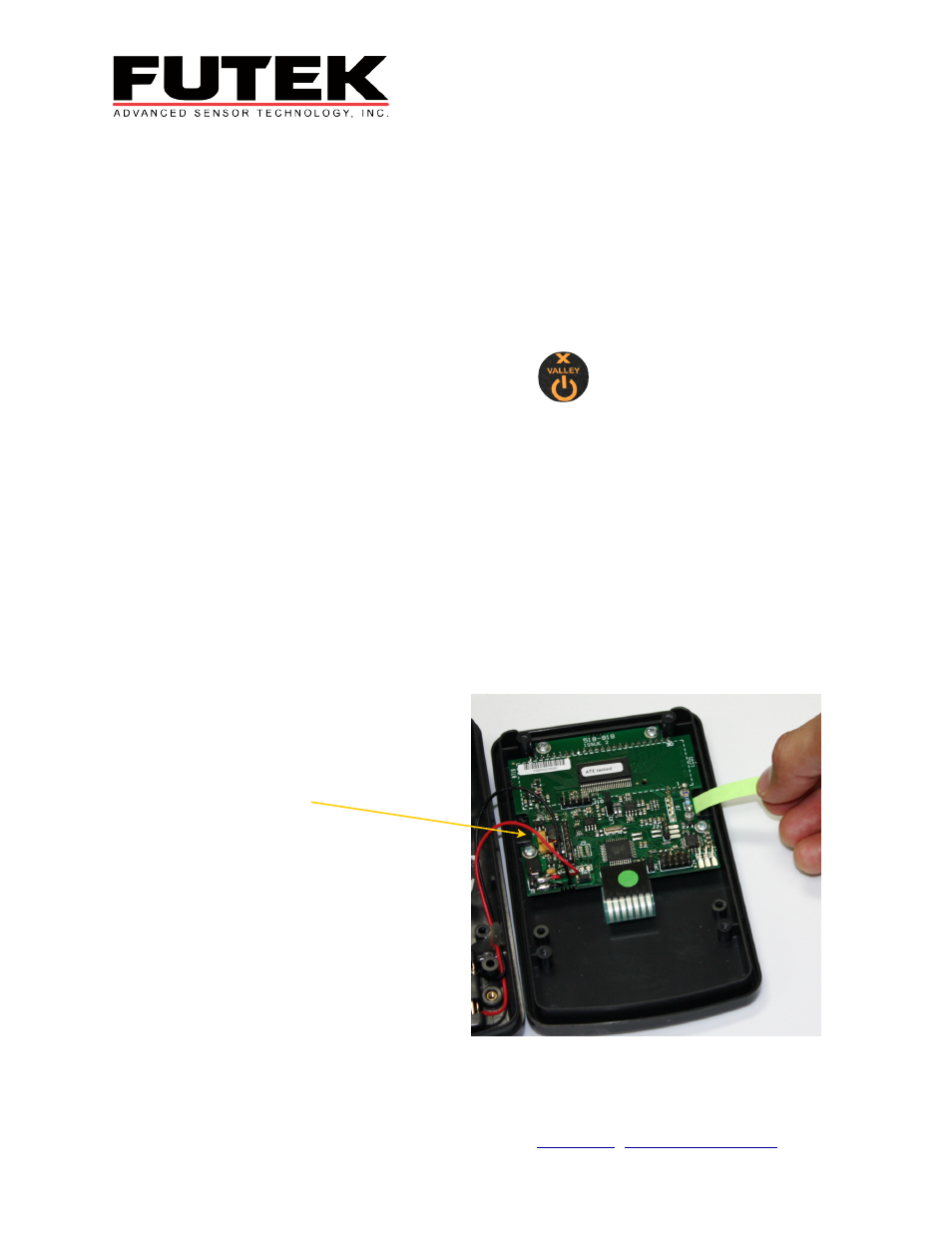

help to further identify the units being displayed for each range. Please refer to the photo below:
Legend labels are
inserted both sides
