Dwyer LCT216 User Manual
Page 4

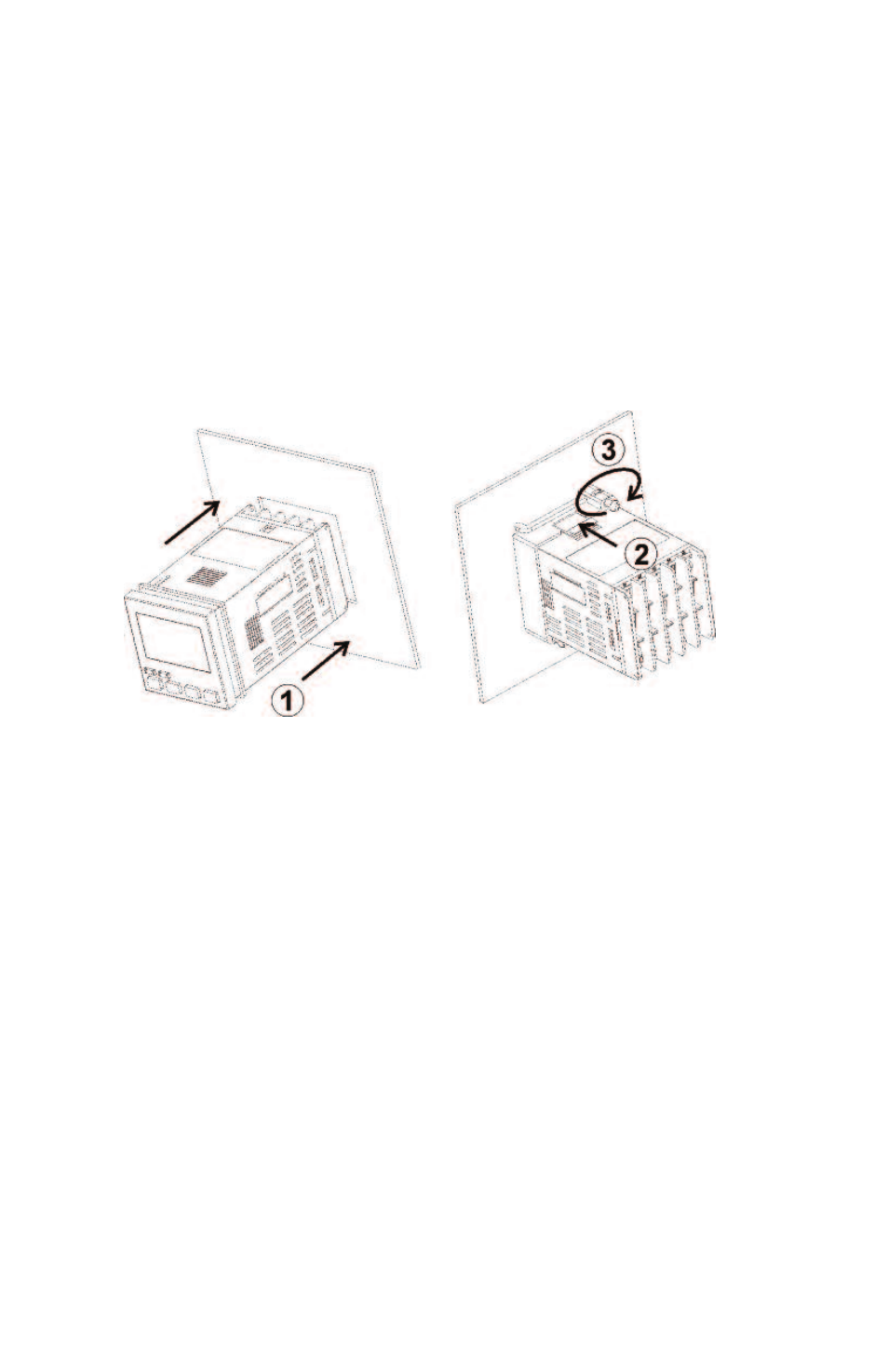

MOUNTING METHOD
Step 1:
From the front of the panel, slide the controller housing through the cut out. The
housing gasket should be against the housing flange before installing.
Step 2:
Slide the mounting collar over the housing from the rear of the panel.
Step 3: Push the mounting collar forward until the bracket stops at the panel wall.
Step 4: Insert and tighten the screws on the bracket to secure the controller in place.
(The screw torque should be 0.8 kgf-cm).
Mounting Bracket Installation
Page 4
