Installation & Operation Manual

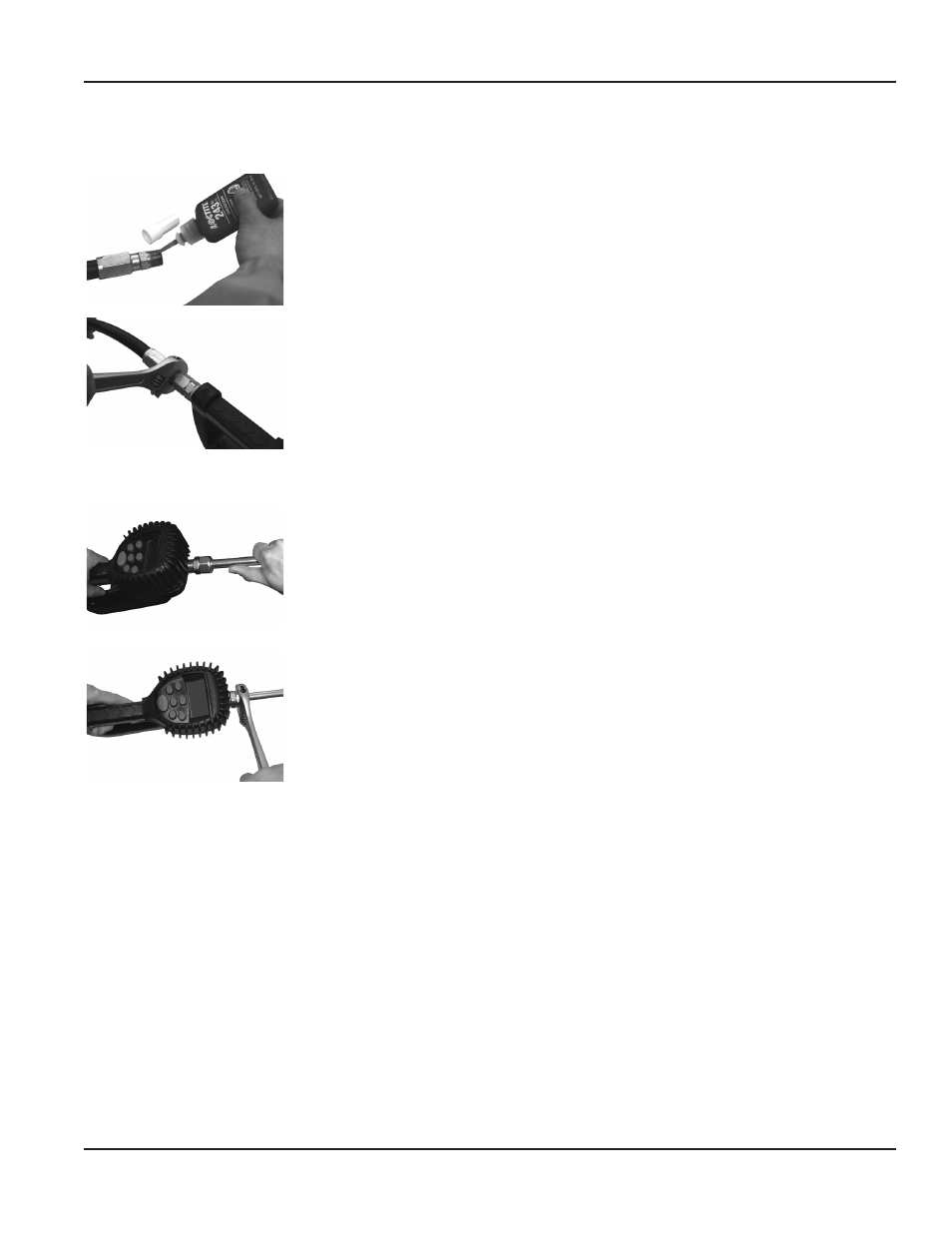

Apply Meter to Hose
Close the drain valve before starting this procedure.
1. Attach a swivel to the meter. Apply thread sealant to the male end of hose.
Recommended sealant is Loctite® 243.
2. Insert the metal end of the hose into the swivel. Tighten completely with an open
ended, adjustable, wrench.
NOTE: N The threaded end of the meter always has female threads. The metal end of the
hose must have male threads.
Apply thread sealant, Loctite® 243, or equivalent, to the male end.
The inlet and outlet swivel connections are either 1/2" NPT or 1/2" BSPP, depending
on meter model.
Apply Nozzle to Meter
1. On the opposite end, apply sealant to the end of the nozzle. Recommended sealant is
Loctite® 243.
2. Thread the nozzle onto the meter. Screw it in tightly with an open ended, adjustable,
wrench.
3. Open all dispense position shut-off valves. Start the pump to pressurize the system.
4. Before use, to ensure accuracy, purge all air from the fluid lines and dispense valve(s).
