Installation & Operation Manual
MAINTENANCE

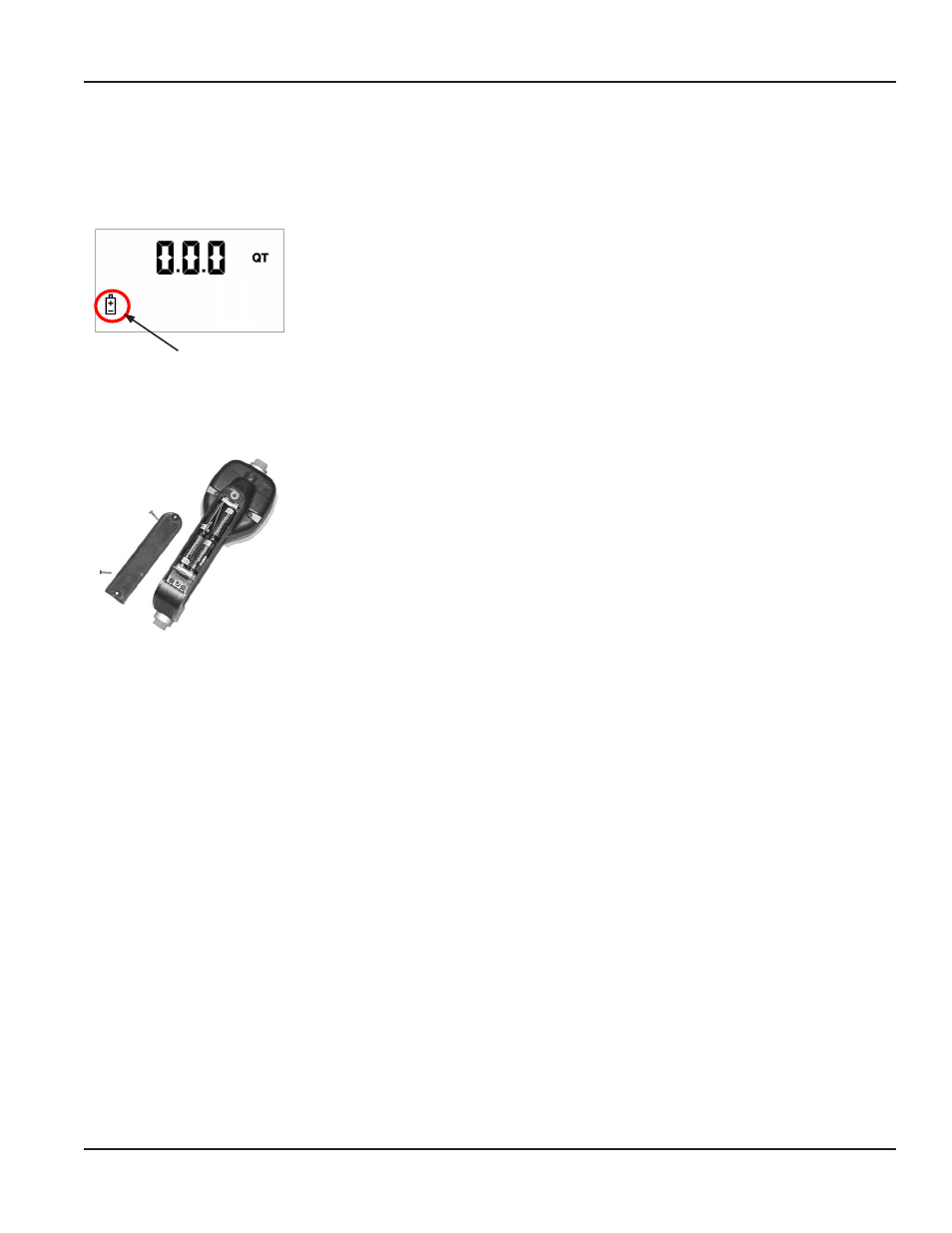

Low Battery Indicators
When the batteries need changing, a progression of warnings appears on the meter screen.
First Warning
The Low Battery icon appears in the lower left corner of the display. That means the
batteries are low and need to be changed when the icon appears.
Second Warning
The Battery icon flashes. The battery power is too low and meter functions are disabled.
Changing the Batteries
The battery compartment is located in the lower case on the backside of the trigger guard.
1. Position the unit face down.
2. Unscrew the two screws. Remove the battery door to expose the batteries.
3. Replace the old batteries with 4 AA alkaline batteries.
NOTE: N Battery polarity markings are inside battery compartment.
4. Dispose of used batteries properly, according to local regulations.
NOTE: N Changing the batteries does not affect any of the programmed values
or totals.
Low Battery Icon
