METER OPERATION, EPM MODE
The meter can be put in EPM Mode for startup purposes by entering the Manual Mode key sequence. Consult the factory for
the sequence.
The AUTO icon displays, indicating the meter is in the EPM Mode. The solenoid valve unlocks and the meter can now be used
as a Standard Preset Batch Meter.
NOTE: N The AUTO button is used to toggle between Manual Mode and Batch Mode.
EPM Manual Mode
1. Pull the trigger to begin the flow.
2. The display shows the amount dispensed.
3. When the desired amount has been dispensed, release the trigger to stop the flow.
4. Press the RESET button once to reset the counter display to zero.
EPM Batch Mode
To enter the Batch Mode from the Manual Mode, press the AUTO button.
When in the Batch Mode, the batch quantity displays in the lower right-hand corner of the
screen.
The meter is now in Batch Mode.
1. Change the batch size by pressing the 10, 1 and/or 0.1 buttons.
a. Press the 10 button to increase the batch amount in increments of 10 units.
b. Press the 1 button to increase the batch amount in increments of 1 unit.
c. Press the 0.1 button to increase the batch amount in increments of 0.1 units.
2. Pull the trigger to begin the flow.
The meter solenoid valve automatically locks the dispensing valve in the full open position.
The trigger falls back to the closed position.
The meter always locks in the maximum open position.
After the batch quantity is dispensed, the flow automatically shuts off.
NOTE: N For RF and BATCH programming, the meter automatically shuts off if the trigger is pulled and the meter does not
sense any flow.
Also, in case of an emergency or to interrupt a batch, the meter is equipped with an Emergency Override. (Refer to
the "Emergency Override" on page 14 section of this manual.)

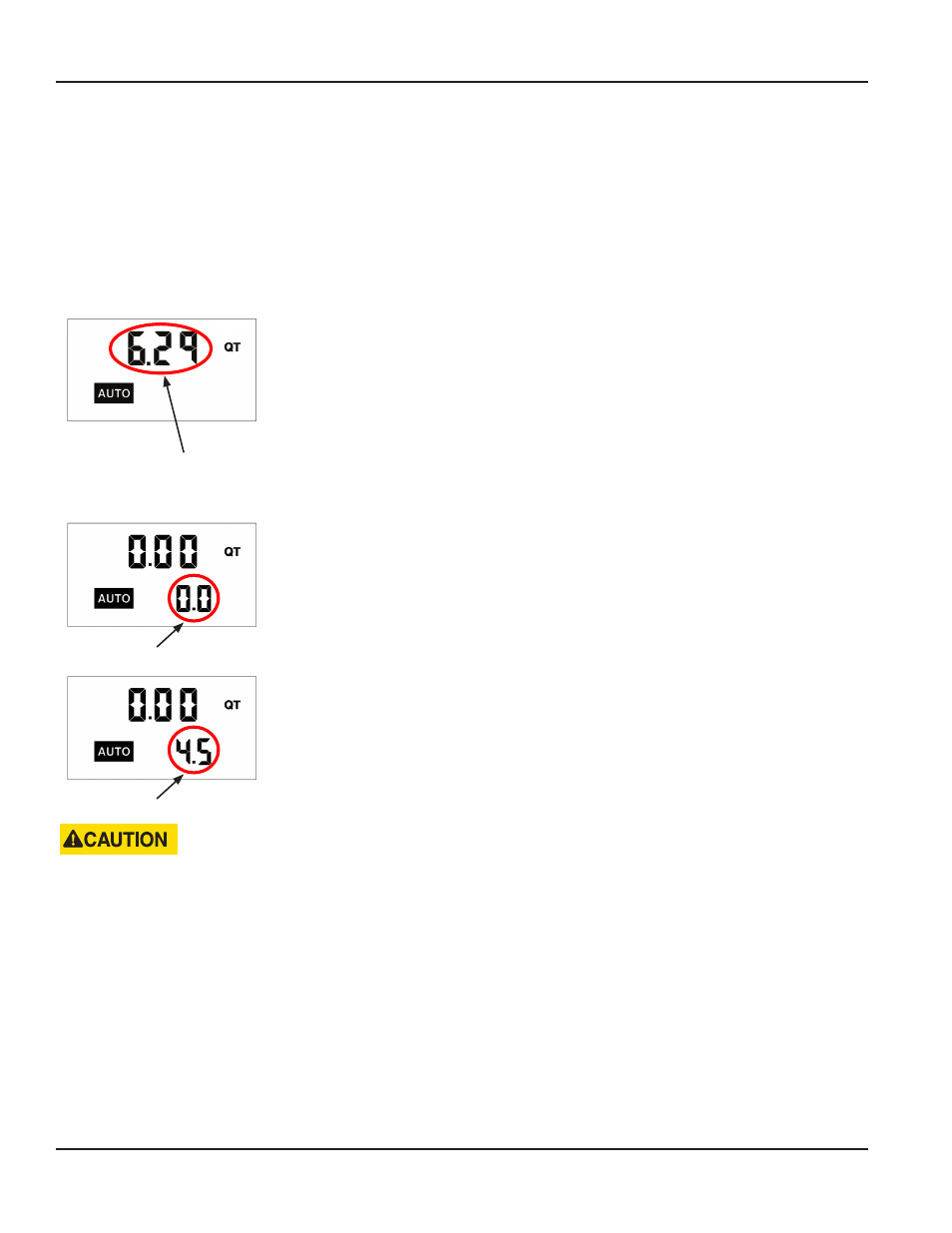

Batch Quantity
Amount Dispensed
Batch Size
