Communication Menu
CommunicationE: Port Settings
Interfaces Modbus RTU RS-232, RS-485 and RS-422 with Modbus RTU .
Connector
Label
RS Interfaces
422 232 485
A A RxD —
B B — —
Z Z TxD B
Y Y — A
G G (GND)
See Figure 23 on page 17 for wiring
diagram .

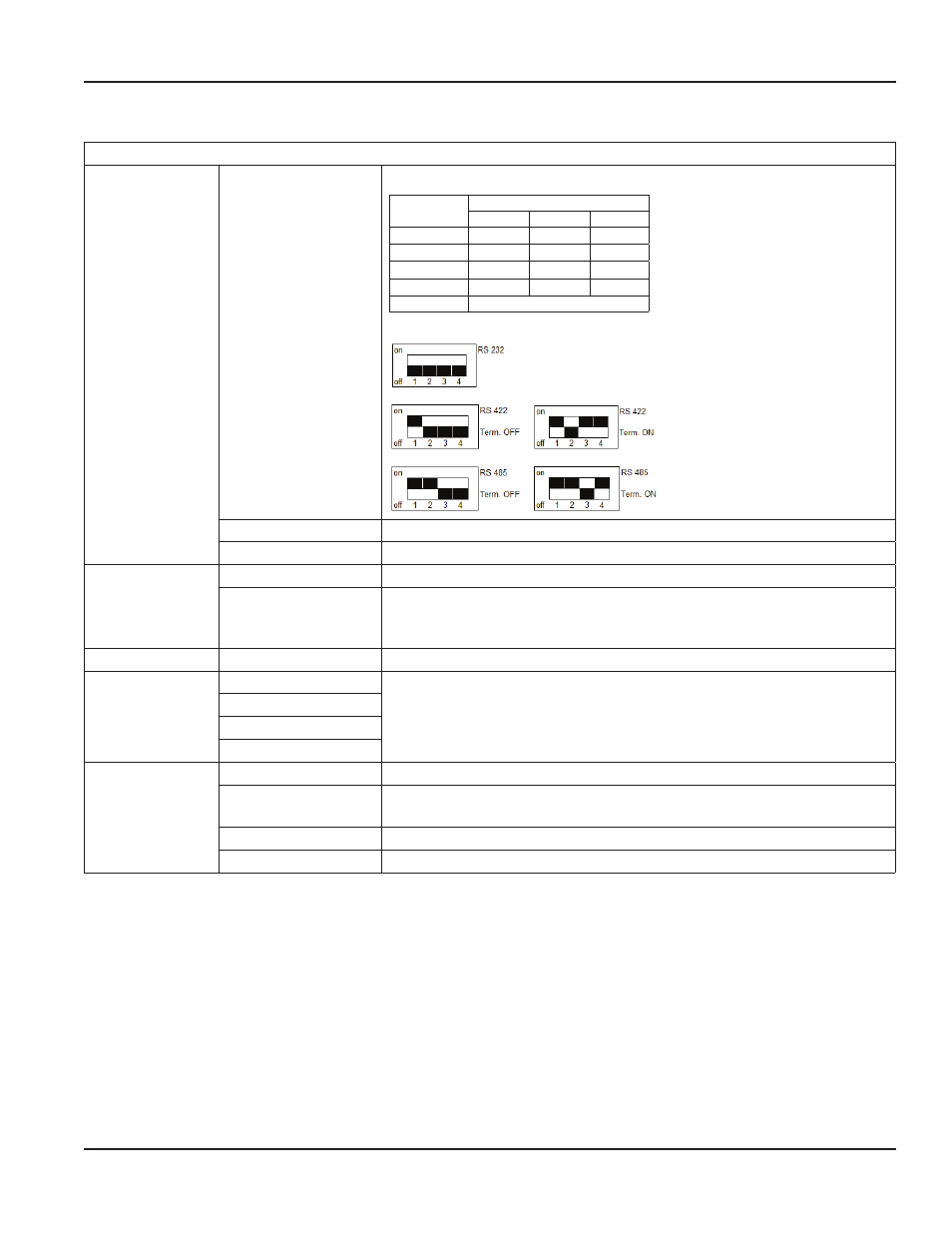

Mode can be configured by DIP switches also if Termination is ON or OFF .
M-Bus For future release .
HART For future release .
Modbus Address This parameter configures the Modbus address in the range from 1…247 .
RS-232,
RS-422,
RS-485
Baudrate: 1200, 2400, 4800, 9600, 19200, 38400 Bd
Parity: Even, Odd, Mark
M-Bus Address For future release .
Ethernet IP Address For future release .
IP Mask
IP Gateway
MAC Address
ADE Control On or Off
Protocol 1 standard messages
2 extended messages
Dial 4 to 9
Resolution 0 .001 / 0 .01 / 0 .1 / 1 / 10 / 100 / 1000 / 10,000
M1000 main menu programming options
