Page 15
Auxiliary Power
TO PREVENT ACCIDENTS, CONNECT MAIN POWER ONLY AFTER ALL OTHER WIRING HAS BEEN COMPLETED.
Take national applicable rules into account.
• Observe type plate (mains voltage and frequency)
• Equipment shall be provided with a external means for disconnecting it from each operating energy supply source . The
disconnecting means shall disconnect all current-carrying conductors .
1 . Open the cover (see
"Opening the M1000 Cover" on page 14
) .
2 . Push the auxiliary power cable through the upper cable inlet .
3 . Connect as shown in
.
4 . Close the cover and tighten the screws .
Power supply 92…275V AC (50/60 Hz)
Recommended cable size min . 0 .75 mm²
Power supply 9…36V DC (max . 9 W)
Recommended cable size min . 0 .75 mm²

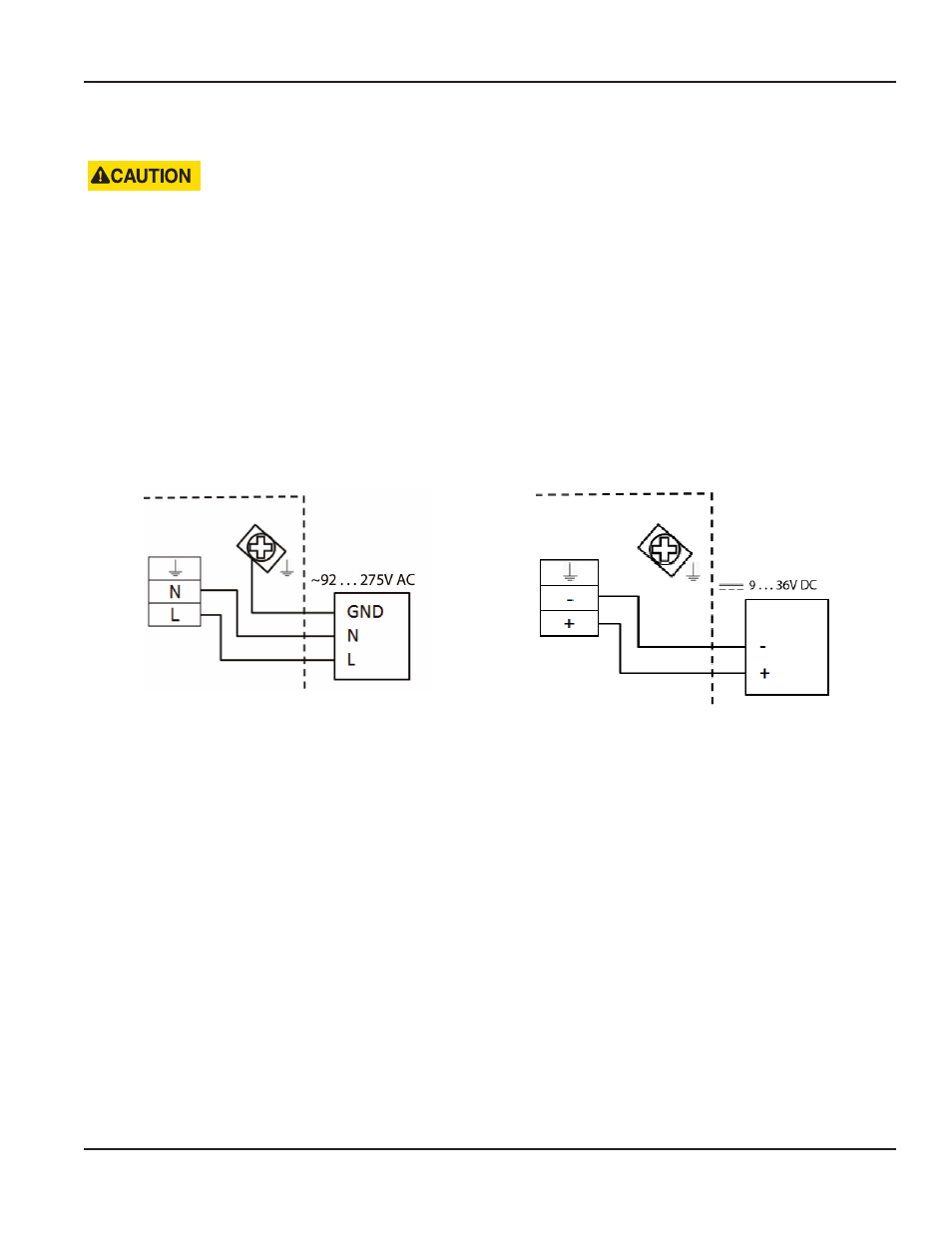

Figure 20: Auxiliary power connection
Power connections
Page 15
July 2014
MAG-UM-00379-EN-02
