Remote Version
CONNECT OR REMOVE THE SIGNAL CONNECTION CABLE ONLY
WHEN THE UNIT HAS BEEN SWITCHED OFF.
Connection to the Measuring Amplifier
1 . Open the cover (see
"Opening the M1000 Cover" on page 14 ) .
2 . Push the signal cable through the lower cable inlet .
3 . Connect as shown in
Figure 21 .
4 . Close the cover and tighten the screws and the wire gland .
Connection to the Junction Box
1 . Open the junction box .
2 . Push the signal cable through the upper cable inlet .
3 . Connect as shown in
Figure 21 .
4 . Close the cover and tighten the screws and wire gland .

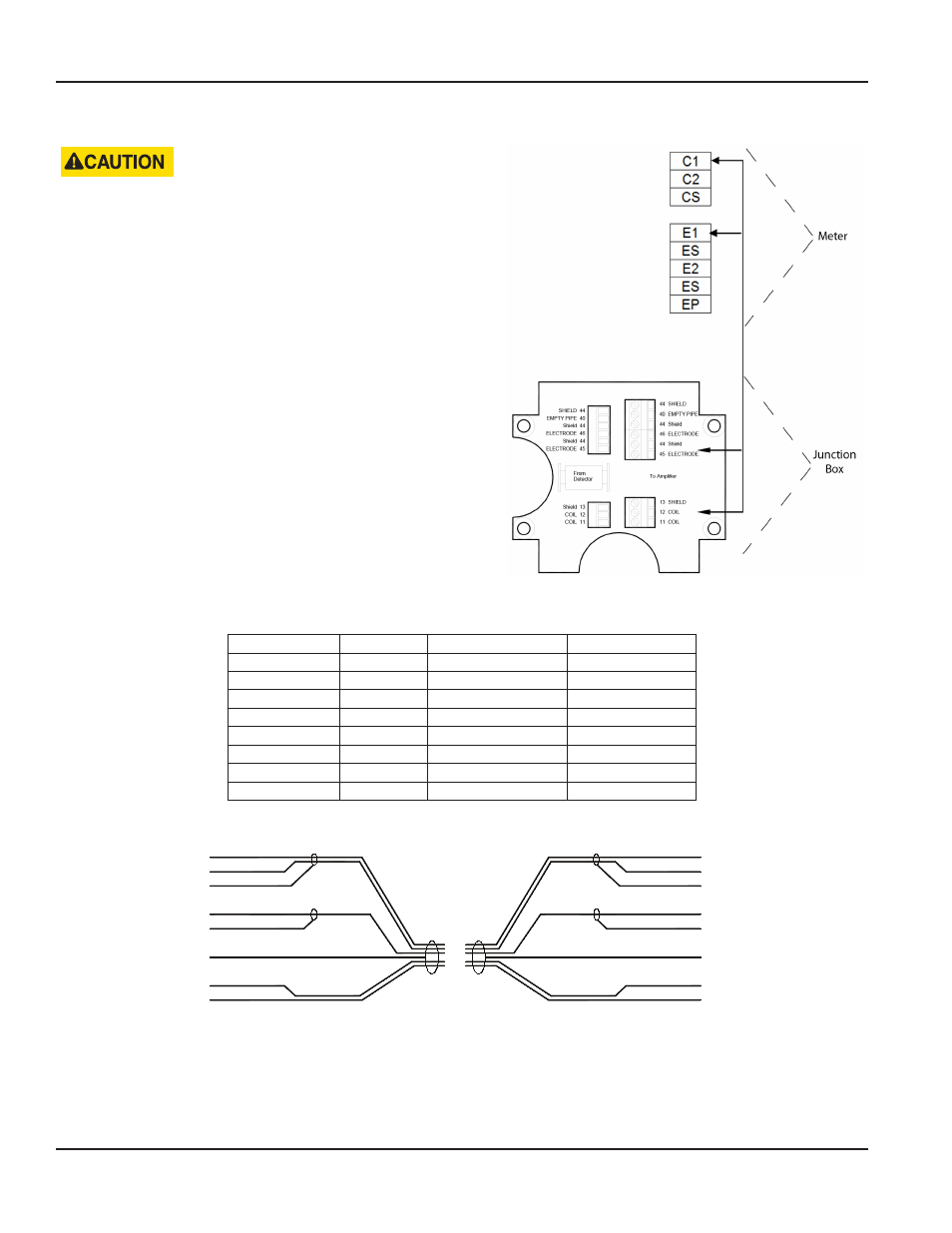

Figure 21: Remote version connection
Junction Box M1000 Description Wire Color
11 C1 Coil 1 Green
12 C2 Coil 2 Yellow
13 CS Main shield Yellow/Green
45 E1 Electrode 1 White
44* ES Electrode shield Black
46 E2 Electrode 2 Brown
40 EP Empty pipe Pink
44* ES Empty pipe shield Black
* Connections with number 44 are on the same potential .
white (45)
brown (46)
pink (40)
black (44)
black (44)
yellow (12)
green (11)
5 . . . 50 m
green (11)
yellow (12)
pink (40)
white (45)
brown(46)
black (44)
black (44)
yellow/green (13) yellow/green (13)
Figure 22: Signal cable specification
Power connections
