• IN MULTIPHASE NETS, SOLID-STATE RELAY SHOULD HANDLE ONLY THE SAME PHASE THAT IS USED FOR POWERING
THE METER.
M1000 MAIN MENU PROGRAMMING OPTIONS
Screen Layout
The following M1000 programming options are available from the Main Menu:
• Meter Setup
• Measurement
• Input/Outputs
• Totals
• Communications
• Miscellaneous
• Information
• Pin
Meter Setup
Main Menu
Menu header
Scrollbar
Indicates a submenu
Submenu

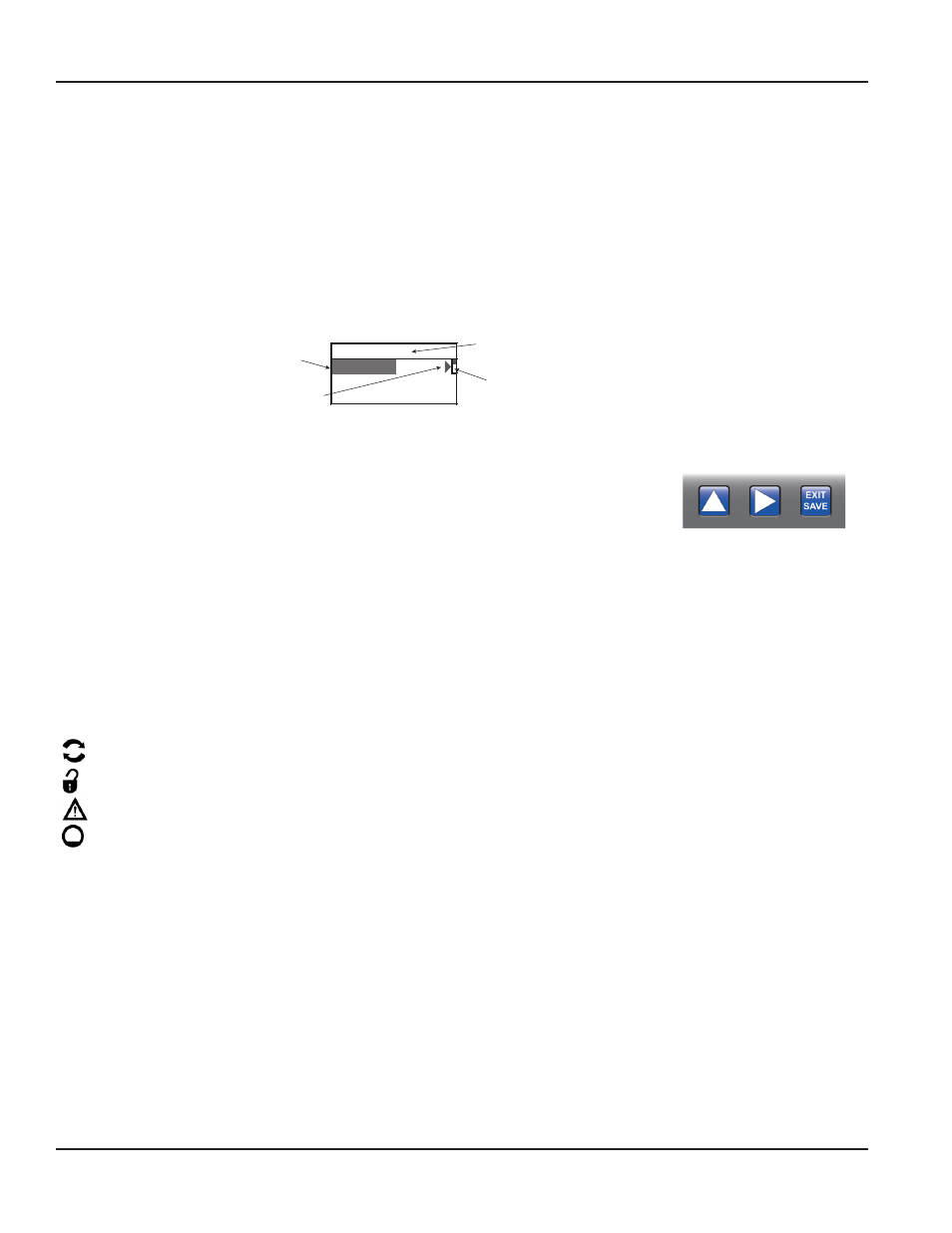

Figure 24: Screen layout
Function Buttons
All M1000 programming is accomplished using the three function buttons located on the front
of the amplifier . Screen navigation, digit, and parameter selection is performed by pressing a
combination of these three buttons .
Press  to scroll through the menu screens or move downward in a list .
Press  or EXIT SAVE button to enter a menu or move to the next submenu . The scrollbar on the upper right shows your
position in the list . Press EXIT SAVE to go back from a submenu to the upper menu .
To select parameters or values from a list in a menu point, first press  until the parameter or value is displayed then press
EXIT SAVE to select it . The current number in the list is marked by a little black square to the left of the number . For example,

DN 50 .
To change a parameter, press  to enter the menu . The first character flashes . Press  to change the value . Once you have
changed the value, press  to move to the next value . Press EXIT SAVE to confirm the new value .
Status Icons
Communication interface is activated
Meter is unlocked
Error message
Empty pipe detection
M1000 main menu programming options
