OPERATION
Operating the Meter
The monitor has two modes of operation, referred to as RUN mode and PROGRAM mode as indicated on the display screen
readout . Normal operation will be in the run mode . To access the program mode, press MENU until the first programming
screen DISPLAY appears .
OTEE: N PROGRAM appears on left side of display .
After programming the meter, a password may be entered to prevent unauthorized access to programming .
Normal Operation (RUN) Mode
During normal operation, the transmitter will show RUN on the left side of the display . In RUN mode the flow rate and total
flow will alternate being shown as the default . The meter can also be set to show only flow rate or only flow total .
MENU ENTER
Programming
Buttons

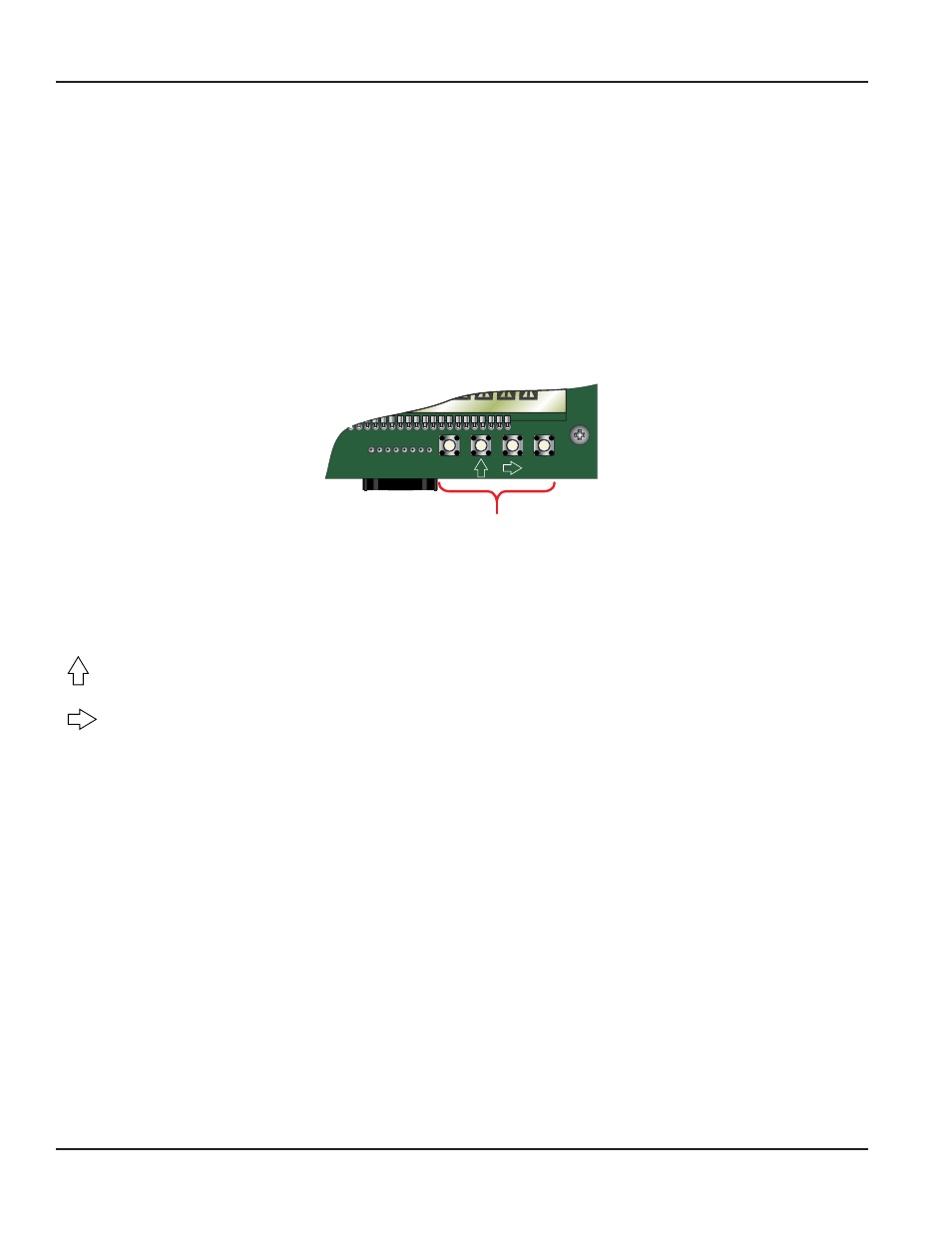

Figure 7: Programming buttons
The four buttons have the following function in RUN modeE:
MENU Selects programming mode .
No function .
No function .
ENTER The current total can be manually stored in the monitor's flash memory . Press and hold ENTER for 2
seconds . The display will respond with a flashing TOTALSVD and then will return to RUN mode .
RESET TOTAL To reset the monitor's total display, press MENU and ENTER simultaneously until TOTALRST starts to
flash . The TOTALRST will stop flashing and the display will return to RUN mode at the conclusion of the
rest procedure .
Programming Operation (PROGRAM) Mode
The programming mode lets you change the configuration and adjust the calibration of the meter . The MR flow transmitter
has two types of configuration changes accessible in program mode:
1 . To view or change selections from a pre-defined list .
2 . To view or change numeric entries .
During programming operation, the following four button functions are provided:
MR Flow Transmitter
