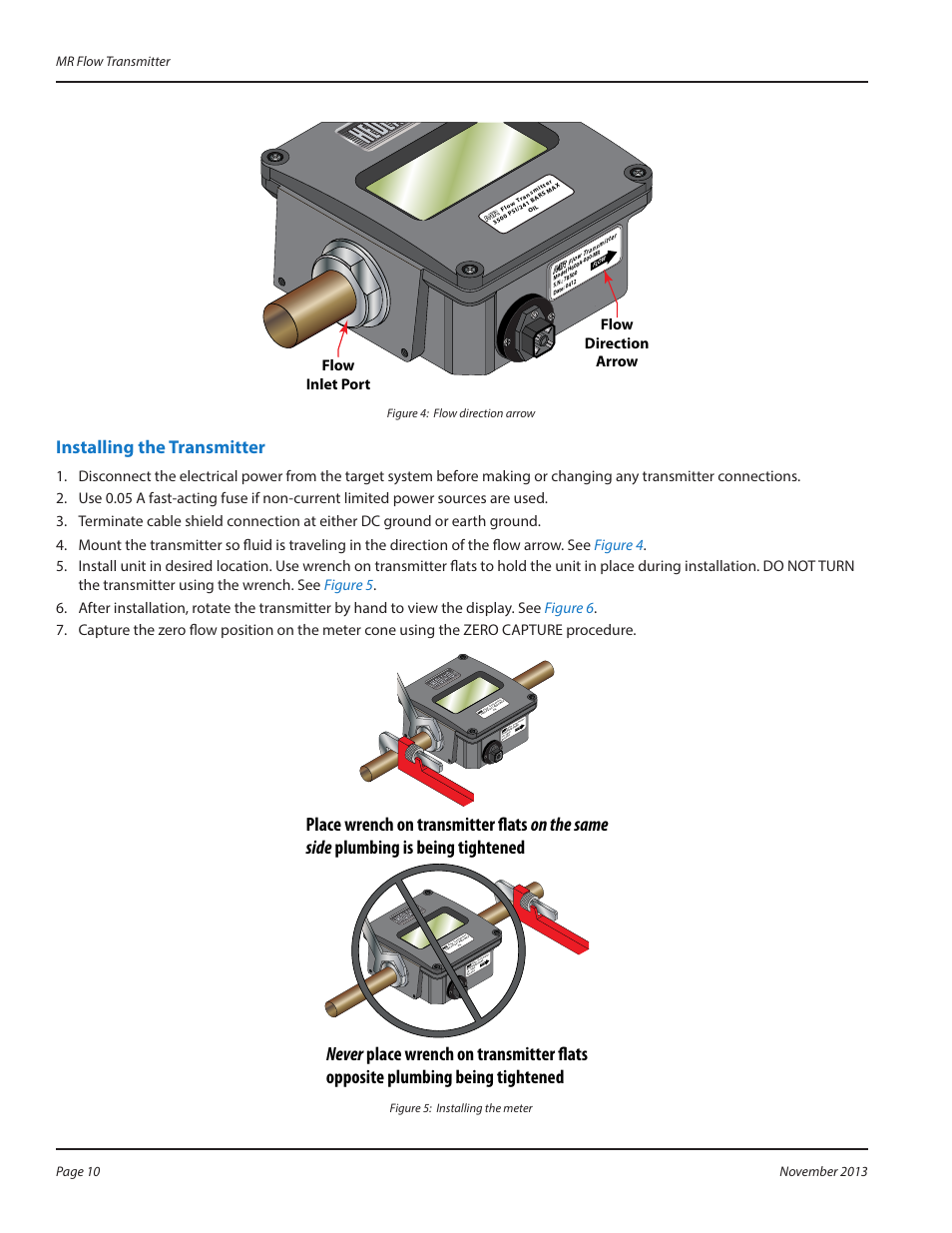

Installing the transmitter, Flow inlet port flow direction arrow, Figure 4: flow direction arrow – Badger Meter MR Transmitter User Manual
Page 10: Figure 5: installing the meter
