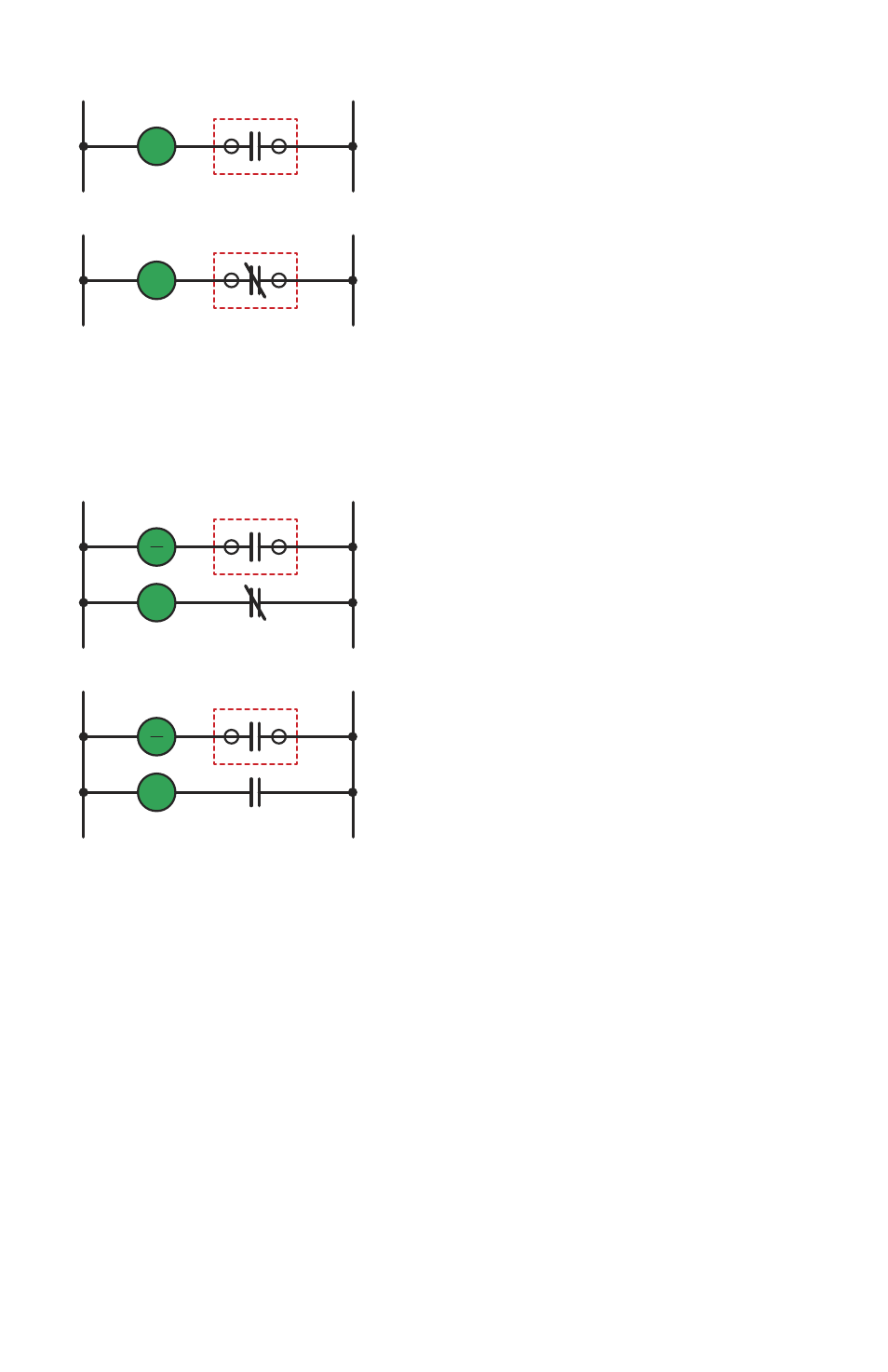

Wiring Configurations
Load will turn ON when flow exceeds setpoint.
Load will turn OFF when flow exceeds setpoint.
BLACK
Flow-Alert
WHITE
Po
w
er Line
Po
w
er Line
Load
RED
Flow-Alert
WHITE
Po
w
er Line
Po
w
er Line
Load
FIGURE 7 - wIRING CoNFIGURAtIoN
FoR loADS wItHIN
Flow-AlERt CoNtACt RAtINGS
BLACK
Flow-Alert
WHITE
R
1
Load
Relay
Coil
R1
Po
w
er Line
Po
w
er Line
BLACK
Flow-Alert
WHITE
R
1
Load
Relay
Coil
R1
Po
w
er Line
Po
w
er Line
Load will turn OFF when flow exceeds setpoint.
Load will turn ON when flow exceeds setpoint.
FIGURE 8 - wIRING
CoNFIGURAtIoN FoR loADS tHAt
EXCEED Flow-AlERt
CoNtACt RAtINGS
IV - OPERATION
NotE: Refer to the Appendix for appli-
cation information and fluid charts.
MICRO SWITCH ADJUSTMENT
1. Remove cover screws and
front cover.
NotE: On meters equipped with dual
micro switches, the right-side is the
decreasing flow switch; the left-side is
the increasing flow switch.
2. Loosen the screws securing
the switching roller and
latching rollers to the guide
bar. Turn each screw one full
turn maximum.
3. All rollers are secured as a set
to the spacer strip. Slide the
entire roller set until pointer is
at the desired setting.
NotE: The spacer strip controls the
maximum distance between rollers.
This distance may be shortened when
the switching setting is close to the end
of the flow scale. Latching rollers may
also be removed if the switching set-
ting is close to the end of the flow scale.
4. Make sure roller brackets are
flush against the guide bar.
Tighten roller screws.
5. For dual switch models,
repeat steps 1-4 for left-side
switch setting.
