Tools and Materials (Customer-supplied)
• Phillips #2 screwdriver
• Precision slotted screwdriver with a 2 .0 millimeter (0 .079 inch) blade size
• Two 9/16 inch or adjustable wrenches for mounting V-block clamps (standard mounting)
• BAND-IT® tool (see "Banding Mounting" on page 15 ) and instructions, a 1/2 inch wrench and a hammer for large
diameter pole mounting
• Wrench (for 1-1/16 inch gland nut and 1-1/16 inch dome nut)
• Pliers or strap wrench (for tightening the 15/16 inch OD backhaul antenna and other Type N connectors)
• 7/16 inch socket wrench for all other bolts and nuts
• Cat5e Ethernet cable (outdoor-rated) and RJ45 jack for LAN connection
Connect the Battery Backup
MPORTTNT I
The gateway contains an onboard battery backup. The battery must be connected before the gateway is installed and
powered. Follow these steps to connect the battery backup.
NOTE: N See "Battery Backup Replacement" on page 32 for details on replacing the battery .
1 . Using a #2 slotted or Phillips screwdriver, remove the
enclosure cover by unscrewing the four corner-cover
screws .
NOTE: N The battery is held in place by the enclosure
cover only . No other adhesive or locking
mechanism is used .
2 . Carefully install the battery connector onto the circuit
board . Insert the connector only far enough so that the
connector latch engages . Verify that proper connector
polarity is observed .
3 . Replace the enclosure cover . Tighten each of the four
cover screws to 16 inch-pounds, maximum . Be careful not
to overtighten any of the screws .
BE CAREFUL NOT TO CRIMP THE BATTERY
CONNECTOR CABLE WHEN REPLACING THE

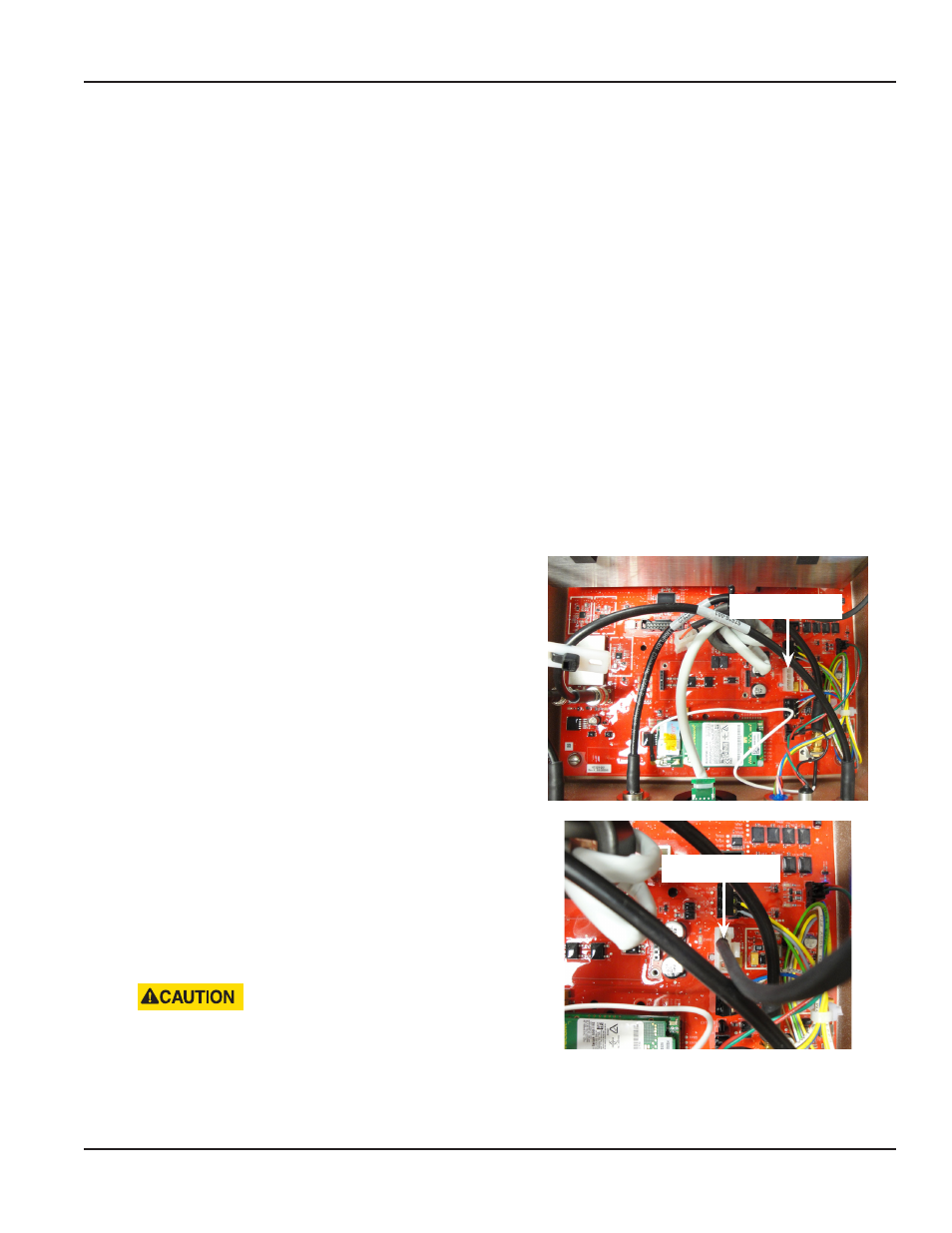

ENCLOSURE COVER. Figure 2: Battery connection
Battery Connector
Battery Connection
