ORION® Fixed Network (SE) II Network Gateway Transceiver
LTN with Power Over Ethernet (PoE) Power Source
NOTE: N Consult the manufacturer's installation and usage recommendations as well as appropriate codes, regulations and/or
standards for the LAN RJ45 Ethernet connection .
To Utility
Network
CAT5e Outdoor-rated
Ethernet Cable
(customer supplied)
PoE LAN RJ45
Ethernet
Connection
(customer
supplied)

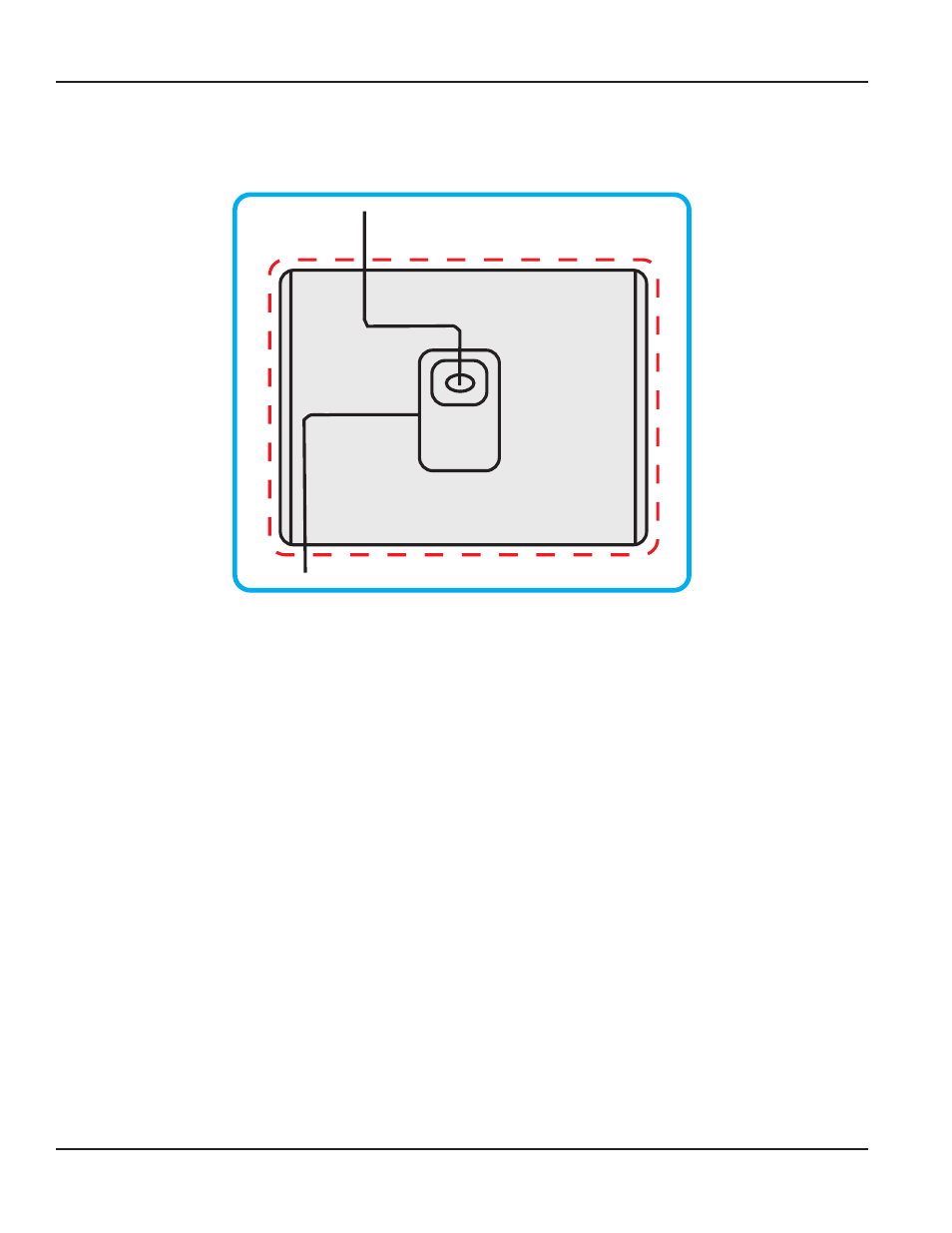

Figure 21: LAN with PoE power source connection (*Shown with NEMA 4 enclosure)
*An enclosure may be recommended but is not included . If NEMA 4 enclosure or equivalent is required, as in an outdoor
installation, the minimum enclosure size is 12 inch x 10 inch x 6 inch (H x W x D) .
