ORION® Fixed Network (SE) II Network Gateway Transceiver
Remote Tntenna Installation Instructions
Remote antenna installations must be performed by a professional installation contractor to ensure compliance with
FCC regulations .
FAILURE TO READ AND FOLLOW THE INSTRUCTIONS PROVIDED CAN LEAD TO MISAPPLICATION OR MISUSE OF THE
ORION FIXED NETWORK II GATEWAY TRANSCEIVER, RESULTING IN PERSONAL INJURY AND DAMAGE TO
THE EQUIPMENT.
1 . Unpack the gateway assembly from the box .
Locate and retain any accessories packaged with
the gateway .
NOTE: N The backhaul antenna is not connected
when shipped .
2 . For each TX/RX antenna, cut and remove the
cable ties holding the antenna cable to the
gateway enclosure .
Disconnect the TX/RX antenna cable/connector
assembly from connectors located on the enclosure
and base of each antenna (Figure 48) .

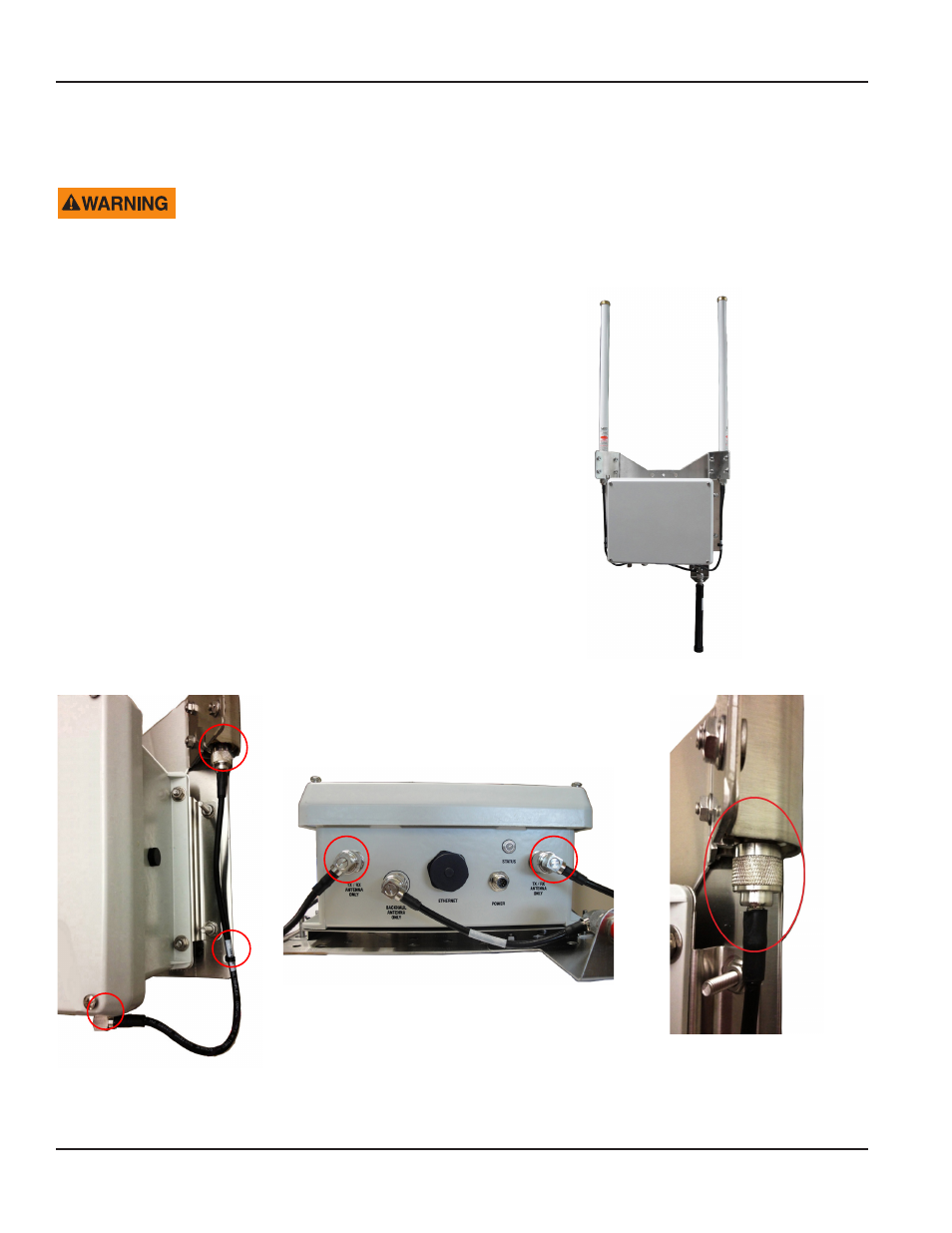

Figure 47: Gateway assembly with backhaul antenna
Figure 48: Disconnect cables and connector assemblies
3 . Remove the antenna cable/connector assemblies but retain for future use should direct connection of the antennas
be required in the future .
