Backhaul Tntenna Bracket
When shipped, the backhaul antenna
bracket is mounted to the bottom of
the mounting bracket with two locknuts
(67810-001) . The mounting holes are
indicated in Figure 8 .
Other holes on the bracket can be used
to accommodate remote installation . For
more information, see "Remote Antenna
Installation" on page 34 in the Appendix .
A backhaul antenna can be connected to
the bracket with either end up . However,
the antenna must always be connected at
the narrow end, hanging away from the
bracket as shown in Figure 9 .

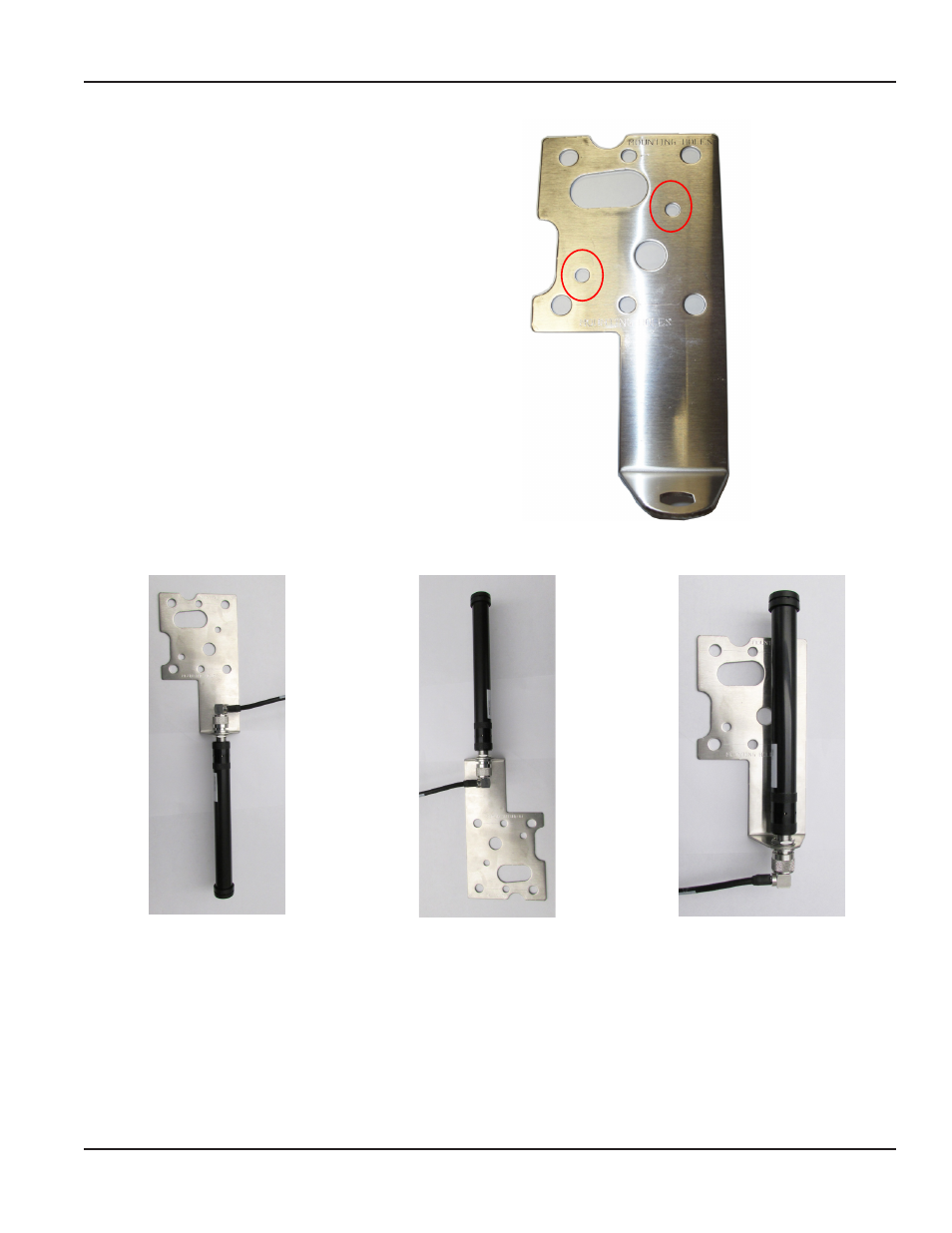

Figure 8: Backhaul antenna bracket
Correct Antenna Mount Correct Antenna Mount Incorrect Antenna Mount
Figure 9: Backhaul antenna mounting
