Gateway Backplate with Brackets
The backplate of the gateway transceiver has a modular design consisting of three brackets joined together . The brackets can
be removed to provide additional mounting options . A description of each bracket starts on the next page .

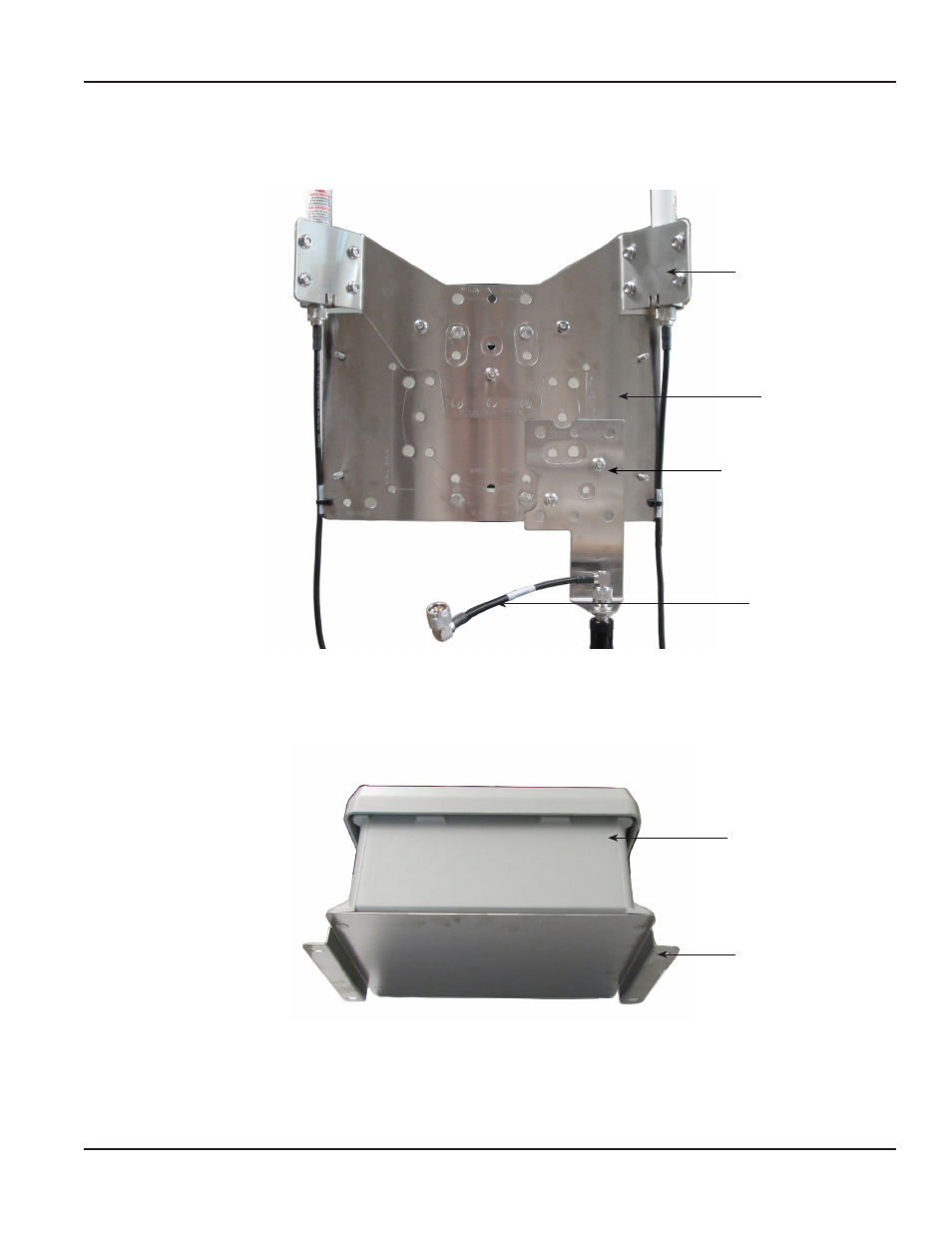

Figure 4: Gateway backplate
The gateway enclosure is permanently mounted to the enclosure bracket which is used to attach the gateway to the
backplate . When shipped, the gateway enclosure bracket is attached securely to the backplate .
Figure 5: Gateway transceiver with enclosure bracket
Mounting Bracket
TX/RX Antenna Bracket
Backhaul Antenna Bracket
Antenna Cable
Gateway Enclosure
Enclosure Bracket
