Technical Manual :
7197700 v1.2.0 02_2013

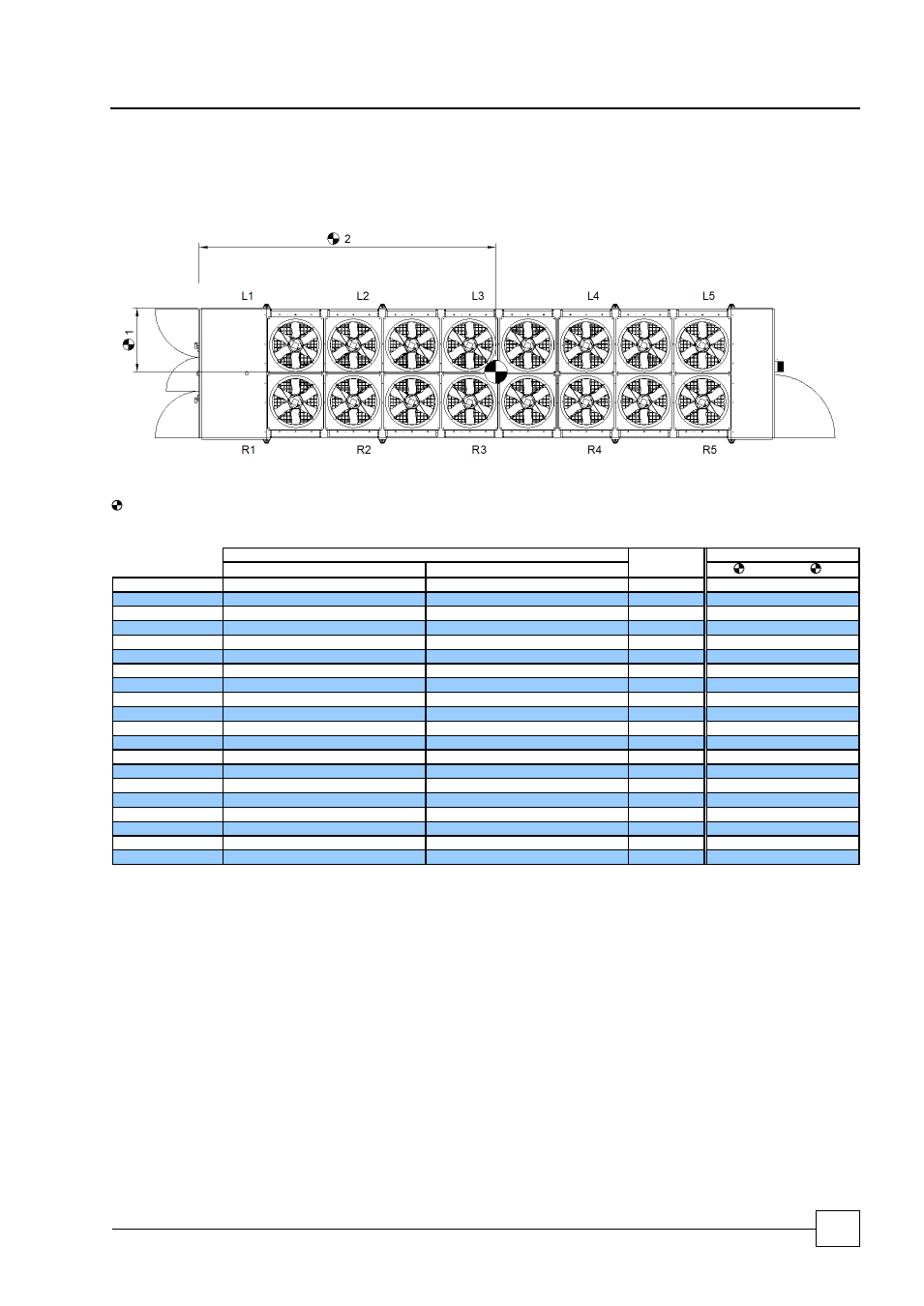

Weights, Point Loadings & Centre of Gravity (C of G) - No Pumps
R Type units
= (C of G)
Point Loadings (kg)
Operating
Weight (kg)
C of G (mm)
L1
L2
L3
L4
L5
L6
R1
R2
R3
R4
R5
R6
2
1
OFC076R16-66HS1 1285 1280 1450 1320 1120 N/A 1255 1220 1365 1205 1035 N/A
12535
4640
1070
OFC076R16-66MS1 1280 1265 1440 1315 1120 N/A 1250 1210 1355 1200 1035 N/A
12470
4650
1070
OFC081R16-76MS2 1280 1270 1440 1315 1120 N/A 1255 1215 1355 1205 1035 N/A
12490
4650
1070
OFC081R16-76ML2 1280 1270 1440 1315 1120 N/A 1255 1215 1355 1205 1035 N/A
12490
4650
1070
OFC087R16-77ML2 1280 1270 1445 1320 1120 N/A 1255 1215 1360 1205 1035 N/A
12505
4650
1070
OFC077R18-66HS1 1205 1225 1405 1370 1160 890 1170 1165 1320 1255 1055 805
14025
5350
1060
OFC083R18-76ML2 1200 1215 1395 1370 1160 890 1170 1155 1310 1255 1055 805
13980
5350
1060
OFC091R18-87HS4 1215 1240 1385 1380 1205 900 1185 1180 1300 1270 1100 815
14175
5360
1060
OFC095R18-88MS4 1210 1235 1390 1385 1205 900 1175 1175 1305 1275 1100 815
14170
5370
1060
OFC107R18-99HL5 1230 1270 1510 1575 1335 940 1185 1190 1395 1420 1190 820
15060
5440
1050
OFC078R20-66ML1 1320 1310 1400 1355 1300 965 1280 1250 1310 1240 1185 880
14795
5470
1060
OFC084R20-76HL2 1330 1325 1410 1355 1300 965 1290 1265 1320 1240 1185 880
14865
5460
1060
OFC092R20-87MS4 1330 1330 1380 1365 1340 975 1295 1265 1295 1250 1230 885
14940
5490
1060
OFC099R20-88HS6 1350 1360 1470 1540 1490 1015 1300 1285 1365 1400 1355 910
15840
5570
1060
OFC108R20-99HL6 1355 1370 1480 1540 1495 1015 1305 1295 1370 1400 1355 910
15890
5560
1060
OFC078R22-66MS1 1390 1385 1475 1445 1280 1140 1345 1315 1375 1320 1150 1040
15660
5770
1060
OFC084R22-76MS2 1390 1390 1475 1450 1285 1140 1345 1315 1375 1325 1155 1040
15685
5770
1060
OFC093R22-87HS4 1410 1415 1465 1460 1305 1165 1365 1340 1370 1340 1180 1065
15880
5780
1060
OFC097R22-88MS4 1405 1410 1475 1465 1305 1165 1355 1340 1375 1340 1180 1065
15880
5780
1060
OFC109R22-99HL5 1425 1445 1555 1645 1410 1240 1370 1355 1435 1495 1255 1120
16750
5860
1060
(1)
Based on standard unit, for units fitted with options, please contact Airedale.
(2)
Operating weight includes refrigerant charge and system water volume.
