Operation

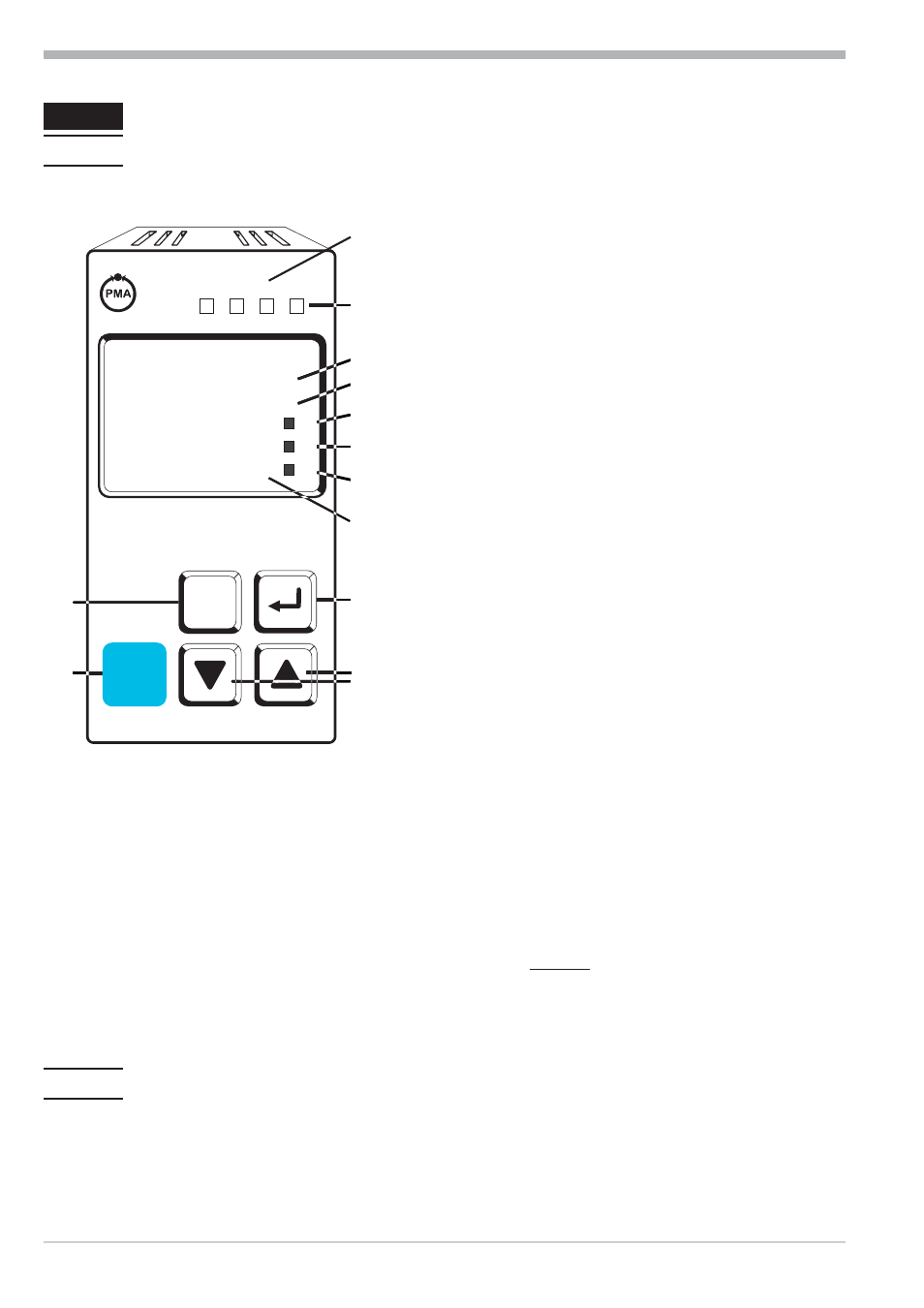

3.1 Front view

LED colours:

LED 1, 2, 3:

yellow

LED OK:

green

other LEDs:

red

g

In the upper display line, the process value is always displayed (Exception:
ConF / othr/ disp = 0). At parameter, configuration, calibration as well as
extended operating level, the bottom display line changes cyclically between
parameter name and parameter value.

3.2 Behaviour after power-on

After supply voltage switch-on, the unit starts with the operating level.
The unit is in the condition which was active before power-off.

Operation

Front view

8

TB40-1

TB 40-1

universal

125

126.

°C

Err

°F

1

2

LC OK

3

"

1

2

3

4

5

6

9

7

8

0

!

"

RESET

1

Status of limits
Lim.2, Lim.3, LC

2

Lit with limit value 1
(

PArA / Lim ) not exceeded

3

Process value display

4

Set-point LC

5

Signals

ConF and PArA level

6

Display in degrees celsius (°C)

7

Display in degrees farenheit (°F)

8

Entry in error list

9

Enter key:
calls up extended operating
level / error list

0

Up/down keys:
changing the set-point or the
controller output value

!

RESET key for reset of
latched errors

"

PC connection for BlueControl
(engineering tool)
