g
Saved alarms (Err-LED is lit) can be acknowledged and deleted with the digital
input di1 or the RESET-key.
Configuration, see page :
ConF / LOGI / Err.r
g
If an alarm is still valid that means the cause of the alarm is not removed so far
(Err-LED blinks), then other saved alarms can not be acknowledged and deleted.
Error status:
Error status
Signification
2
Existing error
Change to error status 1 after error removal
1
Stored error
Change to error status 0 after acknowledgement in error list
0
No error/message
not visible, except with acknowledgement

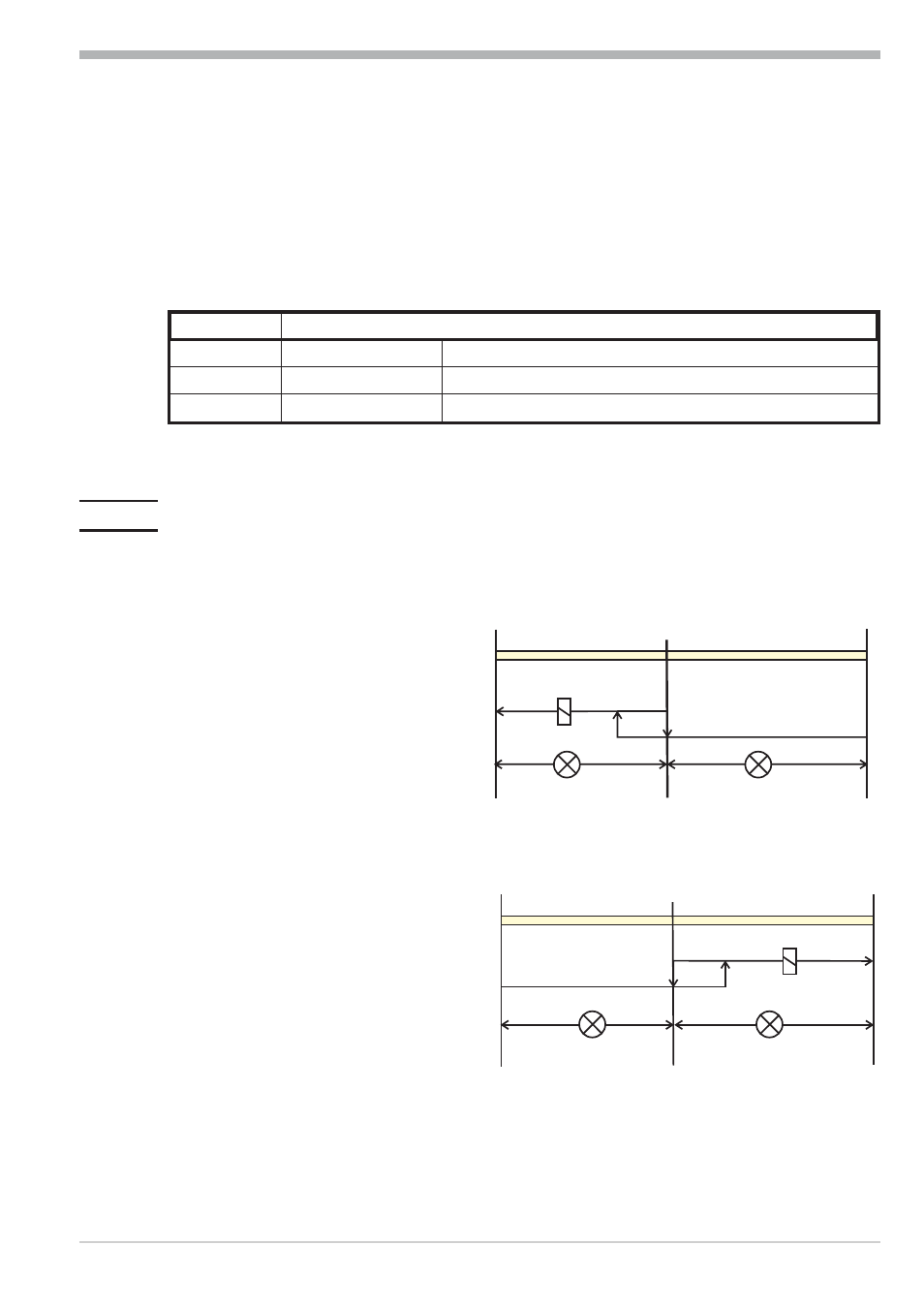

3.6 Alarm handling
3.6.1 Alarm handling limit value LC
Method of operation upper limit:
(
ConF / Lim / Fcn.1 = 3 )
Method of operation lower limit:
(
ConF / Lim / Fcn.1 = 4 )
Operation
TB40-1
11
Alarm handling
LC - LED
yellow
InL.1
InH.1
OK - LED
green
SEtP
0,5 K
LC - LED
yellow
InL.1
InH.1
SEtP
OK - LED
green
0,5 K
