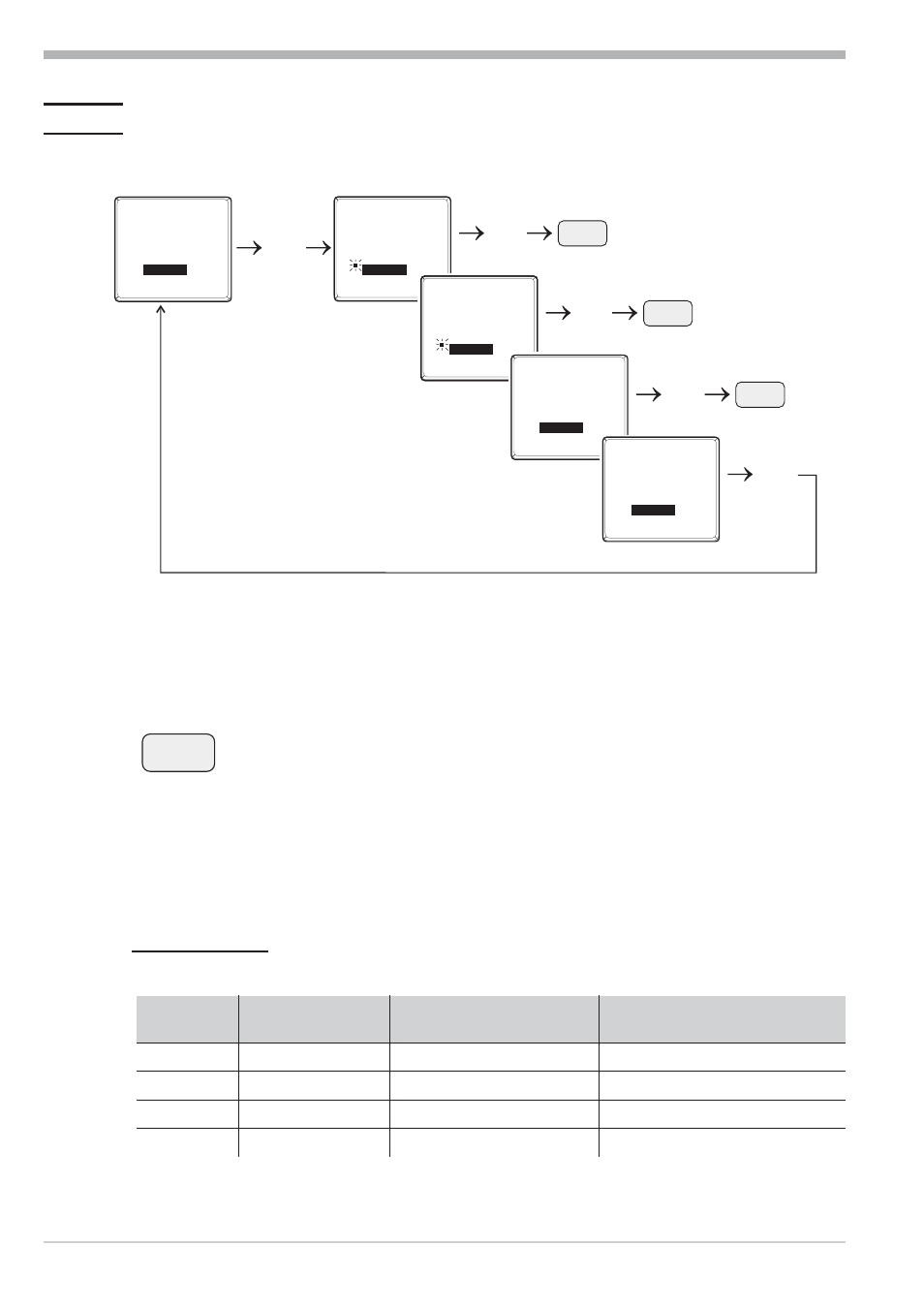

3.9 Operating structure
After supply voltage switch-on, the controller starts with the operating levels.
The controller status is as before power off.
g
PArA - level: At PArA - level, the right decimal point of the bottom
display line is lit continuously.
g
ConF - level: At ConF - level, the right decimal point of bottom
display line blinks.
When safety switch Loc is open, only the levels enabled by means
of BlueControl (engineering tool) are visible and accessible by entry
of the password also adjusted by means of BlueControl (engineering
tool). Individual parameters accessible without password must be copied to the
extended operating level.
g
All password-protected levels are disabled only, if the Loc safety switch is
closed.
g
Factory setting:Safety switch Loc closed: all levels accessible without
restriction, password
PASS = OFF.
Safety
switch Loc
Password entered
with BluePort®
Function disabled or
enabled with BluePort®
Access via the instrument
front panel:
closed OFF / password disabled / enabled enabled
open OFF / password disabled disabled
open OFF enabled enabled
open Password enabled enabled after password entry
Operation
Operating structure 28 KS 90-1 / KS 92-1
Щ
Щ
Щ
Щ
Щ
М
М
М
3 sec.
PASS
1200
1199
PArA
1199
para
ConF
1199
para
CAL
1199
End
1199
PASS
PASS
PASS
