Instruction Manual

Alpha DO 500

8

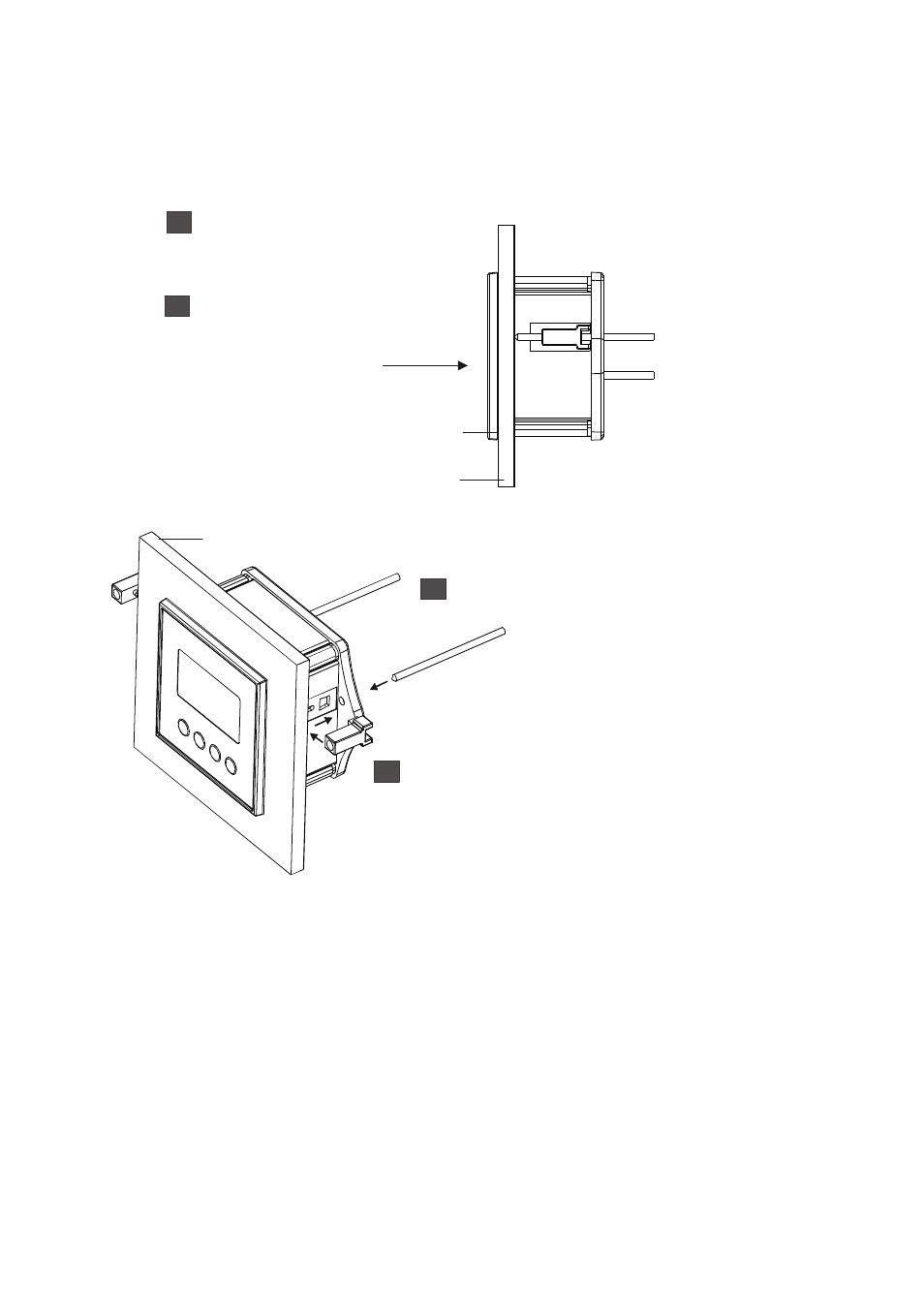

2.4.3 Panel

Mount

Panel

Gasket

Prepare panel cut-out of
92.0 mm X 92.0 mm

Remove back cover of
DO Transmitter and slide it
through panel cut-out

Attach catch to both sides
of DO Transmitter

Insert threaded rods through catch
until DO Transmitter is held against panel

2

3

4

1

1

Panel
