-5-
(f) Down arrow key

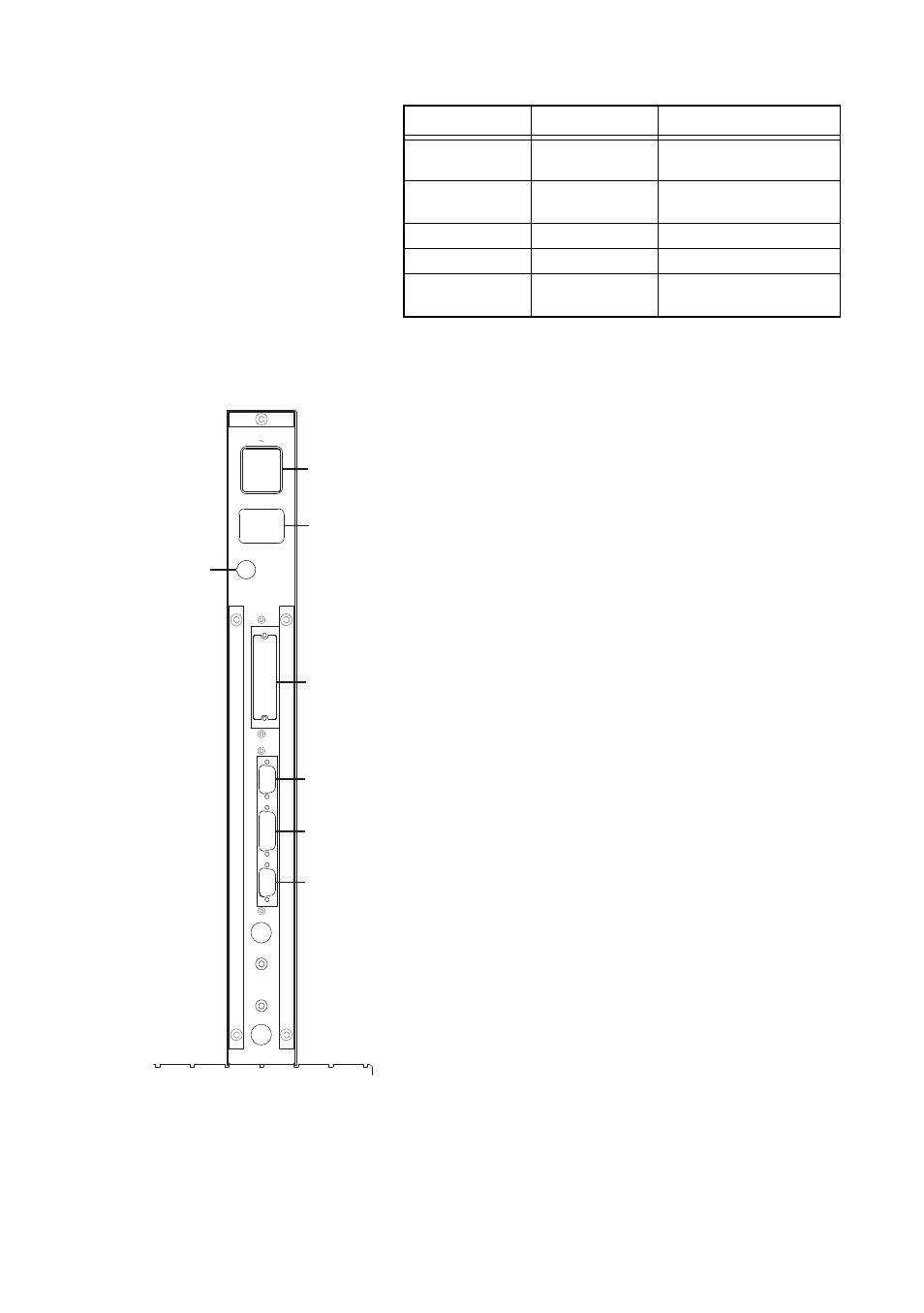

[8] Input power connector/power switch
This turns on the AC power. Although the instrument
can be used within the 85-264V AC range, the included
power cable can only be used in the 85-125V AC range.
[9] Output power connector
When used in a series configuration, this connects to the
input power connector of the neighboring unit. It
connects to the input power connector internally.
[10] Fuse holder
Glass tube fuses (5.2 × 20 3A) are used.
[11] DC input and output connectors (optional)
This is a connector for decision/ BCD output for
connection to lamps, sequences, etc.
[12] RS232C connectors
This is a serial connector for use in linking to PCs and
printers.
[13] Switch input connector
This connector enables measurement commands and
master commands to be given by means of an external
push button. This can also be used for RS422
communication and Digimatic output (optional).
[14] Analog input/output connector
This connector is for input of external analog signals and
output of amp output signals.
Mode Key action Status
Measurement Hold down for two
seconds Switch to program switching
mode
Measurement Press once Switch which information is
displayed
Setting Press once Enter setting values
Master matching Press once Switch display masters
ADJ Press once Switch detector that is
displayed
EXT I/O
RS232C
SW
,ETC
ANAL
OG
FUSE
3A
[8]
Back
[9]
[10]
[11]
[12]
[13]
[14]
AC85 264V
