-27-

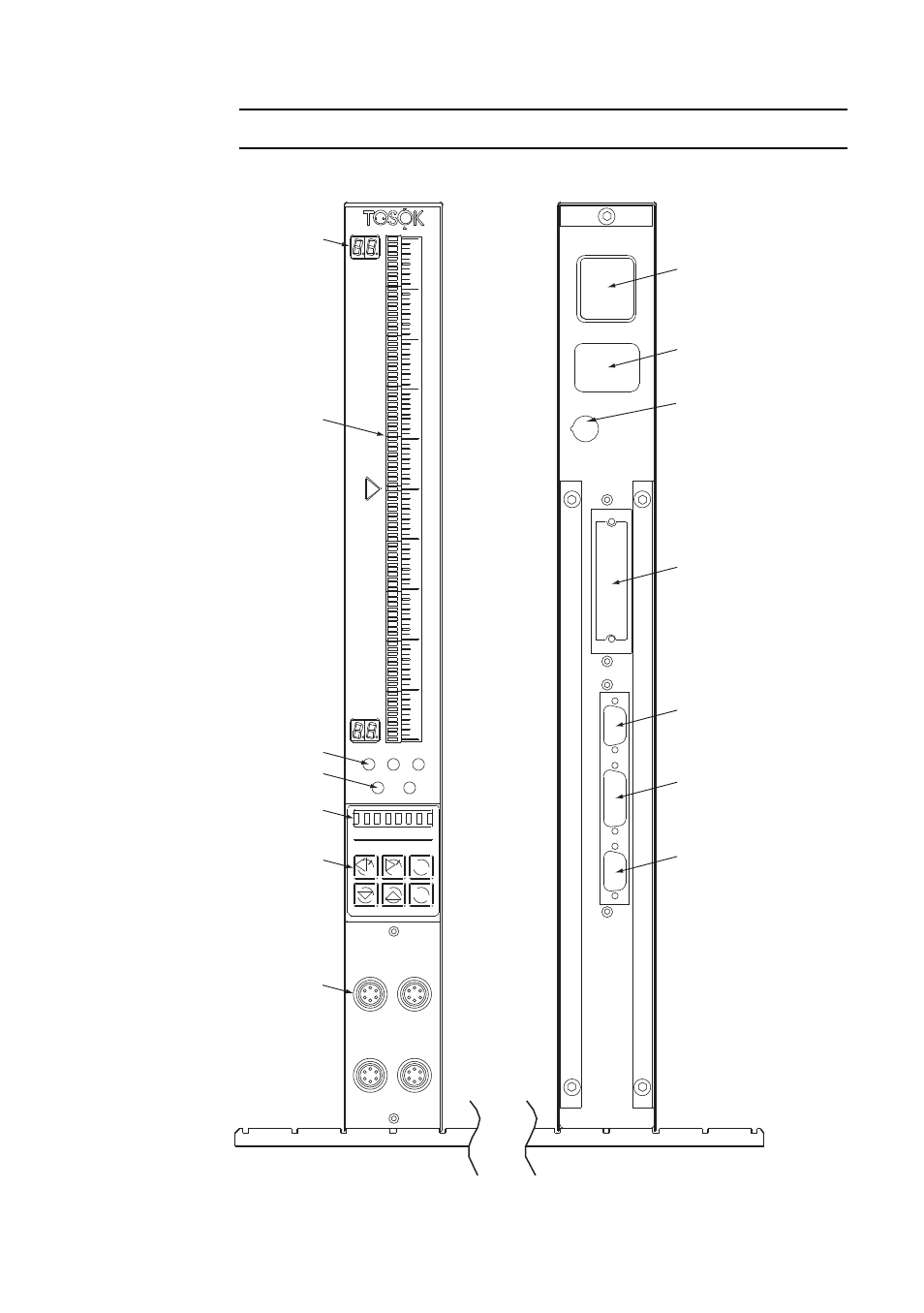

Structural diagram of the (four-channel) Columnar Electronic Gage
! NOTE
An asterisk indicates an option.
[A] [C]
[B] [D]
AC85~264V
FUSE
3A
EXT I/O
RS232C
SW
.
ETC
ANALOG
ENT
RST
SET MAS
1 2 3
SET MAS
LED digital range
display (two)
LED bar graph
display
Item/Decision lamp
(three)
Mode lamp (two)
Panel switches (six)
Display
Detector port
Analog input and
output port
Switch input port
RS232C port
DC output port *
Fuse holder
Power port (output)
Power switch
Power port (input)
Front Back
